The neuronal guidance protein netrin-1 reduces alveolar inflammation in a porcine model of acute lung injury

  • Christian Mutz1,
  • Valbona Mirakaj2, 3,
  • Dierk A Vagts1,
  • Phillipp Westermann1,
  • Kristina Waibler1,
  • Klemens König2,
  • Thomas Iber1, 3,
  • Gabriele Nöldge-Schomburg1 and
  • Peter Rosenberger2, 3Email author
Contributed equally
Critical Care201014:R189

https://doi.org/10.1186/cc9301

Received: 22 April 2010

Accepted: 22 October 2010

Published: 22 October 2010

Abstract

Introduction

Acute lung injury (ALI) is an inflammatory disorder of pulmonary or extrapulmonary origin. We have previously demonstrated that netrin-1 dampens murine ALI, and in an attempt to advance this finding into future clinical practice we evaluated whether netrin-1 would reduce alveolar inflammation during porcine ALI.

Methods

This was a controlled in vivo experimental study in pigs. We induced ALI through lipoploysaccharide (LPS) infusion (50 μg/kg) for 2 hours. Following this, we exposed animals to either vehicle, intravenous netrin-1 (netrin-1 i.v.) or inhaled netrin-1 (netrin-1 inh.). Serum samples and bronchoalveolar lavage (BAL) were obtained to determine levels of tumor necrosis factor-α (TNF-α), interleukin (IL)-1β, interleukin-6 and interleukin-8 at baseline and 6 hours following treatment. Myeloperoxidase activity (MPO) and protein levels were determined in the BAL, and tissue samples were obtained for histological evaluation. Finally, animals were scanned with spiral CT.

Results

Following LPS infusion, animals developed acute pulmonary injury. Serum levels of TNF-α and IL-6 were significantly reduced in the netrin-1 i.v. group. BAL demonstrated significantly reduced cytokine levels 6 hours post-netrin-1 treatment (TNF-α: vehicle 633 ± 172 pg/ml, netrin-1 i.v. 84 ± 5 pg/ml, netrin-1 inh. 168 ± 74 pg/ml; both P < 0.05). MPO activity and protein content were significantly reduced in BAL samples from netrin-1-treated animals. Histological sections confirmed reduced inflammatory changes in the netrin-1-treated animals. Computed tomography corroborated reduced pulmonary damage in both netrin-1-treated groups.

Conclusions

We conclude that treatment with the endogenous anti-inflammatory protein netrin-1 reduces pulmonary inflammation during the initial stages of ALI and should be pursued as a future therapeutic option.

Introduction

Acute lung injury (ALI) is a devastating disorder of the lung with an incidence of approximately 17.5/100,000 per year and is associated with high mortality [1, 2]. The hallmarks of ALI include the disruption of the alveolar-capillary barrier, the extravasation of fluid from the vascular space causing pulmonary edema and the infiltration of leukocytes into the alveolar space [3, 4]. Oxygenation is impaired, and the acute respiratory distress syndrome (ARDS) develops when the oxygenation index deteriorates to a PaO2/FiO2 quotient below 200 [2]. The importance of these inflammatory changes for the pathophysiology of ALI is supported by the finding that experimental lung injury can be substantially reduced through the depletion of neutrophils [5]. During the initial stages of ALI, neutrophils migrate into the alveolar space in response to secreted cytokines. Furthermore, cytokines increase the activation of alveolar macrophages and aggravate the intra-alveolar inflammation that might become self-propagating within the pulmonary tissue [5, 6]. Several investigators have described the importance of this process by identifying a correlation between alveolar cytokine levels and the severity of pulmonary organ injury [711]. As a result, pulmonary oxygen exchange is compromised [12, 13]. Strategies for the treatment of ALI are aimed at improving pulmonary function through reducing the extent of pulmonary inflammation [14, 15].

Netrin-1 was initially described in the context of central nervous system (CNS) development, where it influences axonal migration and guides CNS development [1618]. But netrin-1 is also expressed outside the CNS in the intestine, kidney and lung, where it controls the trafficking of leukocytes from the vascular space [19, 20]. During periods of intestinal hypoxia, netrin-1 is induced through hypoxia inducible factor 1-α and dampens local inflammation of the large intestinal surface [21]. This is in large part dependent on the coexpression of the adenosine 2B receptor (A2BAR), a receptor that is transcriptionally induced during hypoxia and inflammation [22, 23]. Similarly to the intestinal organs, the pulmonary surface is composed of a large mucosal lining. This mucosal surface of the lung is characterized by a close proximity of the vascular and the alveolar space building the alveolar-capillary barrier. We were recently able to demonstrate that netrin-1 is expressed in endothelial and epithelial cells within pulmonary tissue and is significantly repressed during inflammatory and mechanical lung injury. Furthermore, employing animals with endogenous repression of netrin-1, we demonstrated increased pulmonary damage in these animals compared to littermate controls and that a substitution with exogenous netrin-1 resulted in a significant reduction of lung injury [20]. The protective role of netrin-1 in our murine model was also dependent on the A2BAR corroborating the protective potential of the A2BAR during lung injury [23].

Given the anti-inflammatory potential of neuronal guidance protein netrin-1 and the important role of a control of pulmonary inflammation during ALI, we investigated whether our previous findings could be translated further and attempted to bring netrin-1 one step forward to a potential clinical use. For this purpose, we decided to use systemic and local netrin-1 administration to find the potentially best application for future therapeutic evaluation. We hypothesized that netrin-1 might be able to influence the extent of pulmonary inflammation and leukocyte activity within the alveolar space in a large animal model of ALI. This study was therefore aimed at improving our understanding of netrin-1 for a possible translation from mice to humans.

Materials and methods

Research animals

The study was approved by the local Ethics Committee on Animal Research (Landesamt für Landwirtschaft Rostock, Approval LALLF M-V/TSD/7221.3-1.1-038/08) and in concordance with the Helsinki convention. Female domestic pigs with an age of 3-4 months were used for the experimental procedure. The average weight of animals used in each group is provided in Table 1.
Table 1

Systemic hemodynamic measurements and pulmonary hemodynamic measurements

Parameter

Group



Time




0 h

4 h

6 h

Weight (kg)

Control

30.4 ± 0.69




LPS + Vehicle

31.0 ± 0.58




LPS + Netrin i.v.

30.2 ± 0.20




LPS + Netrin inh.

29.8 ± 0.49



CI (ml min-1 kg-1)

Control

166 ± 3.0

167 ± 5.1

156 ± 10.4



LPS + Vehicle

170 ± 5.1

136 ± 10.5

122 ± 7.3*



LPS + Netrin i.v.

163 ± 9.2

128 ± 11.9

114 ± 9.4*



LPS + Netrin inh

160 ± 3.4

130 ± 11.9

118 ± 8.4*

MAP (mmHg)

Control

68 ± 3.7

77 ± 4.9

84 ± 3.7



LPS + Vehicle

75 ± 6.0

89 ± 3.2

119 ± 6.4*



LPS + Netrin i.v.

78 ± 6.5

97 ± 6.9*

124 ± 7.0*



LPS + Netrin inh.

86 ± 6.7

93 ± 2.7

118 ± 4.5*

MPAP (mmHg)

Control

16 ± 1.4

17 ± 1.4

17 ± 1.8



LPS + Vehicle

17 ± 0.7

31 ± 1.8*

31 ± 2.0*



LPS + Netrin i.v.

18 ± 0.8

31 ± 2.0*

34 ± 2.3*



LPS + Netrin inh

16 ± 0.5

28 ± 2.5*

31 ± 3.3*

SVR (dyne*s*cm5 kg-1)

Control

34 ± 1.6

39 ± 3.7

47 ± 5.6



LPS + Vehicle

36 ± 3.6

54 ± 3.8

80 ± 8.1*



LPS + Netrin i.v.

41 ± 4.6

66 ± 7.8*

95 ± 11.4*



LPS + Netrin inh

47 ± 4.2

64 ± 6.2*

88 ± 7.0*

PVR (dyne*s*cm5 kg-1)

Control

6.5 ± 0.6

6.7 ± 0.4

7.2 ± 0.7



LPS + Vehicle

6.6 ± 0.4

16.6 ± 2.3*

16.9 ± 1.4*



LPS + Netrin i.v.

7.1 ± 0.5

16.6 ± 2.4*

20.6 ± 3.0*



LPS + Netrin inh.

6.8 ± 0.4

15.5 ± 2.8*

18.9 ± 2.1*

PCWP (mmHg)

Control

3.9 ± 0.4

3.9 ± 0.5

4.0 ± 0.5



LPS + Vehicle

3.2 ± 0.6

5.1 ± 0.9

6.6 ± 1.9*



LPS + Netrin i.v.

4.4 ± 0.3

7.0 ± 0.5*

8.0 ± 0.5*



LPS + Netrin inh

4.4 ± 0.5

6.8 ± 0.5*

7.6 ± 0.5*

ITBVI (ml kg-1)

Control

33.3 ± 1.5

33.0 ± 0.7

30.8 ± 1.6



LPS + Vehicle

31.9 ± 1.8

28.0 ± 1.3

32.0 ± 3.0



LPS + Netrin i.v.

34.4 ± 3.1

31.9 ± 2.0

35.5 ± 2.1



LPS + Netrin inh.

32.1 ± 1.3

29.0 ± 0.8

33.0 ± 0.6

EVLWI (ml kg-1)

Control

5.5 ± 0.4

6.0 ± 0.6

6.5 ± 0.5



LPS + Vehicle

5.7 ± 0.7

9.1 ± 2.1

9.7 ± 1.3*



LPS + Netrin i.v.

5.1 ± 0.7

7.5 ± 0.4

11.9 ± 1.4*



LPS + Netrin inh.

4.8 ± 0.4

6.3 ± 0.7

8.1 ± 1.3*

Measurements are compared in the control, vehicle and netrin-1 treatment groups 4 hours and 6 hours after the end of treatment (data are means ± SEM and indexed in body weight; P < 0.05; *versus control group). Cardiac index (CI), mean arterial pressure (MAP), mean pulmonary arterial pressure (MPAP), systemic vascular resistance index (SVR), pulmonary vascular resistance index (PVR), pulmonary capillary wedge pressure (PCWP), central venous pressure (CVP), intrathoracic blood volume index (ITBVI), extravascular lung water index (EVLWI).

Anesthesia

Animals were premedicated with 8 μg kg-1 intramuscular (i.m.) azaperone (Janssen-Cilag, Neuss, Germany), 6.0 mg kg-1 ketamine (Bela-Pharm, Vechta, Germany) and 0.25 mg kg-1 midazolam (Merckle, Blaubeuren, Germany) after overnight fasting and receiving water ad libitum. After an intravenous line was placed, anesthesia was induced intravenously (i.v.) with 3 μg kg-1 fentanyl (Janssen-Cilag, Neuss, Germany), 1.6 mg kg-1 ketamine (DeltaSelect, Pfullingen, Germany), 0.3 μg kg-1 flunitrazepam (Roche Pharma, Grenzach, Germany) and 0.3 mg kg-1 pancuronium (Hikma Farmaceutica, Reute, Germany). The trachea was intubated and anesthesia maintained by continuous i.v. infusion of flunitrazepam 85 μg kg-1 h-1, 0.2 mg kg-1 h-1 pancuronium and 7 mg kg-1 h-1 ketamine. Mechanical ventilation was provided by pressure-controlled ventilation with a Servo 900 ventilator (Siemens, Munich, Germany). The ventilation protocol used a tidal volume of 10 ml/kg body weight and a positive end expiratory pressure of 3 cm H2O.

Instrumentation

After placement of a 3-lm central venous catheter (Certofix; Braun, Meslungen, Germany) and an 8.5-F introducer (Arrow, Erding, Germany) into the right internal jugular vein, a Swan-Ganz thermodilution catheter (Edwards Laboratories, Irvine, CA, USA) was introduced into the pulmonary artery. Next, the right femoral artery was cannulated with a 4.5-Fr introducer set (Arrow, Erding, Germany), and a COLD catheter (Pulsion Medical Systems, Munich, Germany) was advanced 30 cm to reach the distal aorta. A suprapubic cystofix catheter (Braun, Melsungen, Germany) was inserted for measurement of diuresis. To provide adequate fluid replacement, animals received full-electrolyte solution 10 ml kg-1 h-1 i.v. (Jonosteril; Fresenius, Bad Homburg., Germany) during the study period.

Measurement and calculations

All intravascular catheters were connected to pressure transducers, and signals were recorded online (PONEMAH, St. Paul, MN, USA). Measured variables included heart rate (HR), mean arterial pressure (MAP), central venous pressure (CVP), pulmonary artery pressure (PAP) and pulmonary capillary wedge pressure (PCWP). Equations for derived variables (e.g., systemic vascular resistance (SVR), pulmonary vascular resistance (PVR), systemic oxygen delivery (DO2l)) were as described previously [24, 25]. Cardiac output was determined by thermodilution technique (Baxter, Unterschleißheim, Germany). The mean value of three injections of 10 ml of ice-cooled saline was considered to estimate actual cardiac output. Intrathoracic blood volume (ITBV) and extravascular lung water (EVWL) were determined with a double-indicator dilution technique using the COLD catheter.

Bronchoscopy

At the described time points, bronchoscopy was performed by identifying the left lobe of the lung with a standard bronchoscope. Bronchoalveolar lavage was performed using 10 ml of normal saline. The solution was then centrifuged, and the supernatant was obtained for further analysis.

Endotoxin Infusion and Experimental Protocol

Escherichia coli 055:B5 lipopolysaccharide (Sigma Chemicals, Munich, Germany) was infused at a concentration of 50 μg kg-1 for 2 hours. Animals were divided into four groups: (1) no LPS infusion, (2) LPS infusion + vehicle treatment, (3) LPS infusion + netrin-1 i.v. (1 mg over 2 hours) and (4) LPS infusion + netrin-1 inh. (1 mg over 2 hours). For further details about the experimental protocol, see Figure 1.

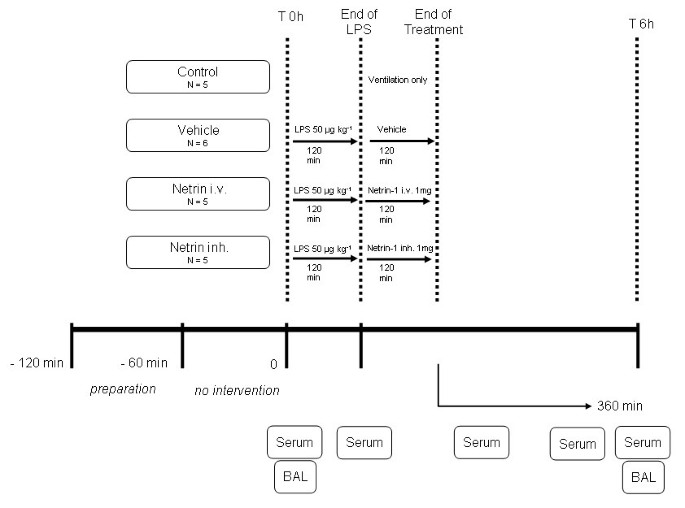

Figure 1

Experimental protocol. Control animals received mechanical ventilation only. Acute lung injury (ALI) was induced through lipoploysaccharide (LPS) infusion (50 μg/kg over 2 h), and subsequently animals were treated with either vehicle (50 ml of NaCl 0.9% + 1 mg of bovine serum albumin), netrin-1 i.v. (1 mg i.v. in 50 ml of NaCl 0.9%) or netrin-1 inh. (1 mg in 50 ml of NaCl 0.9%) for 2 hours. Following this, the observation period was 6 hours until the end of the experimental protocol. Hemodynamic measurements, serum levels of cytokines and bronchoalveolar lavage (BAL) were determined as indicated.

BAL myeloperoxidase activity and protein content

BAL supernatant was used for protein measurements performed according to standard methods. Pulmonary myeloperoxidase activity was quantified by enzymatic assay for the azurophilic neutrophil granule protein myeloperoxidase (MPO) as described previously [26].

Histopathological evaluation of ALI

After animals were killed, lung tissue was excised from the right lower lobe of the lung and fixed in 10% formaldehyde solution. Tissues were then embedded in paraffin and stained with hematoxylin and eosin. Three random tissue sections from four different lungs in each group were examined.

Application of Netrin-1

Inhaled netrin-1 (1 mg) was dissolved in 20 ml of NaCl 0.9% and applied through Venta-neb-ir (NEBU TEC, Elsenfeld, Germany) over a period of 2 hours. Intravenous netrin-1 (1 mg) was dissolved and applied with a standard infusion pump through a central venous catheter. Vehicle control was performed using porcine serum albumin (1 mg; Sigma Chemicals, Munich, Germany) dissolved in 20 ml of NaCl 0.9% and applied nebulized and intravenously simultaneously. Calculation of netrin-1 dose resulted from experiments previously performed in mice [20] and was calculated according to porcine weight. Given the fact that netrin i.v. and netrin inh. were equally efficient in our murine model, we also used an equal dose of netrin-1 i.v. and netrin-1 inh. in this porcine model.

Measurement of BAL cytokine concentration

Cytokine concentration was measured in supernatant of BAL and in serum of animals with standard enzyme-linked immunosorbent assay kits (R&D Systems, Minneapolis, MN, USA).

Computer tomography

At the end of the study protocol, animals were killed and transported immediately to a standard spiral computer tomographer (Siemens, Munich, Germany). Animals were then scanned using standard protocol for evaluation of radiographic signs of lung injury.

Statistical analysis

Data are given as means ± standard error of the mean. Statistical analysis was carried out using the JMP software package (SAS, Cary, NC, USA). Values were analyzed by Mann-Whitney U test for independent groups, since normal distribution of samples was not assumed (SigmaStat 3.10; Systat Software, San Jose, CA, USA). Statistical significance was assumed at P < 0.05.

Results

Hemodynamic measurements do not differ between intervention groups

Following the experimental protocol (Figure 1), we performed systemic hemodynamics, pulmonary hemodynamics and other variables to evaluate whether we could determine a significant difference between groups. We found a significant increase of systemic vascular resistance, mean arterial pressure, pulmonary vascular resistance, mean pulmonary pressure, pulmonary capillary wedge pressure and cardiac index in animals following LPS infusion, which was performed as described previously [27]. However, we did not find a significant difference between the vehicle, the netrin-1 i.v. or netrin-1 inh. groups (Table 1).

Evaluation of pulmonary injury

To identify the role of LPS infusion on pulmonary oxygenation and ventilation, we evaluated variables determining changes in respiration, oxygenation and ventilation. We found decreased static compliance and an increase in inspiratory pressure after LPS exposure. Furthermore, we found that animals treated with netrin-1 had a tendency for an improved oxygenation index compared to animals in the vehicle group (vehicle, 158 ± 30; netrin-1 i.v., 204 ± 31; netrin-1 inh., 217 ± 20; P = 0.09) (Table 2).
Table 2

Variables determining respiration, oxygenation and ventilation in vehicle controls and netrin-1-treated animals

Parameter

Group



Time




0 h

4 h

6 h

PaO2/FiO2 (mmHg)

Control

483 ± 31

513 ± 48

493 ± 77



LPS + Vehicle

453 ± 10

255 ± 38*

158 ± 30*



LPS + Netrin i.v.

491 ± 31

254 ± 18*

204 ± 31*



LPS + Netrin inh

487 ± 6

272 ± 11*

217 ± 20*

PaCO2 (kPa)

Control

5.2 ± 0.2

5.1 ± 0.2

4.8 ± 0.1



LPS + Vehicle

5.0 ± 0.1

5.1 ± 0.2

5.4 ± 0.3



LPS + Netrin i.v.

5.3 ± 0.4

5.1 ± 0.2

5.2 ± 0.7



LPS + Netrin inh.

5.0 ± 0.2

4.6 ± 0.1

5.2 ± 0.3

DO2 (ml min-1 kg-1)

Control

1207 ± 60

1139 ± 49

940 ± 88



LPS + Vehicle

1132 ± 61

1132 ± 97

1009 ± 28



LPS + Netrin i.v.

1207 ± 83

1139 ± 97

960 ± 69



LPS + Netrin inh

1102 ± 38

1147 ± 120

997 ± 84

Ppeak (mbar)

Control

14.4 ± 0.4

14.5 ± 0.4

14.7 ± 0.8



LPS + Vehicle

14.4 ± 0.5

20.8 ± 2.1*

22.7 ± 3.0*



LPS + Netrin i.v.

14.4 ± 1.0

18.9 ± 1.4*

19.8 ± 1.8*



LPS + Netrin inh

14.2 ± 0.4

19.2 ± 0.2*

20.7 ± 0.7*

Pmean (mbar)

Control

8.1 ± 0.5

8.2 ± 0.5

8.4 ± 0.7



LPS + Vehicle

7.7 ± 0.2

10.3 ± 1.2

11.5 ± 1.8



LPS + Netrin i.v.

7.4 ± 0.2

9.3 ± 0.3

9.3 ± 0.3



LPS + Netrin inh.

7.6 ± 0.2

9.3 ± 0.1

10.1 ± 0.3

Compl.st. (ml cm H2O-1)

Control

28.3 ± 1.2

29.4 ± 1.0

29.5 ± 1.2



LPS + Vehicle

28.6 ± 0.7

19.3 ± 1.6*

18.2 ± 1.7*



LPS + Netrin i.v.

28.4 ± 2.0

19.9 ± 1.4*

19.3 ± 1.7*



LPS + Netrin inh

27.7 ± 1.4

19.1 ± 0.7*

17.7 ± 0.7*

Measurements determining the oxygenation and ventilation in control animals, in vehicle animals and animals subjected to netrin-1 4 hours and 6 hours after the end of treatment (data are means ± SEM and indexed in body weight; P < 0.05; *versus control group). Horovitz Index (OI), inspiratory oxygen fraction (FiO2), carbon dioxide partial pressure (PaCO2), systemic oxygen delivery (DO2), peak airway pressure (Pinsp), mean airway pressure (Pmean), static compliance (Compl.st.), respiratory frequency (RF).

Animals treated with netrin-1 demonstrate reduced radiological signs of ALI

Initially, we evaluated whether the animals treated with netrin-1 would demonstrate reduced radiological signs of pulmonary injury after 6 hours compared to vehicle controls. For this purpose, we performed standard spiral chest computed tomography (CT) and evaluated pulmonary injury at the level of the bronchi just below the tracheal bifurcation and at the basal level just above the diaphragm. We found reduced signs of pulmonary edema, patchy infiltrates and inflammatory changes in the animals treated with netrin-1 i.v. or netrin-1 inh. as compared to vehicle controls (Figure 2). Control animals receiving mechanical ventilation only did not demonstrate significant pulmonary changes.
Figure 2

Netrin-1 dampens radiographic signs of ALI. Chest computed tomography was performed in animals after mechanical ventilation (control) 6 hours following treatment with vehicle, netrin-1 i.v. or netrin-1 inh. Pictures demonstrate one representative animal per group (n = 4 per group).

Intravenous netrin-1 dampens systemic inflammatory cytokines

To identify whether netrin-1 administration would result in a significant reduction of systemic inflammation, we evaluated levels of serum TNF-α and interleukin-6. For this purpose, we obtained blood samples at the termination of LPS infusion, 1 hour after the initiation of netrin-1 exposure and 4 hours and 6 hours after netrin-1 administration. We found a significant reduction of serum TNF-α 1 hour after administration of netrin-1 i.v. When determining the levels of interleukin-6, we found a consistent reduction of interleukin-6 at 1, 4 and 6 hours in the netrin-1 i.v. group compared to the vehicle group (Figure 3). No significant effect was observed in the netrin-1 inh. group.

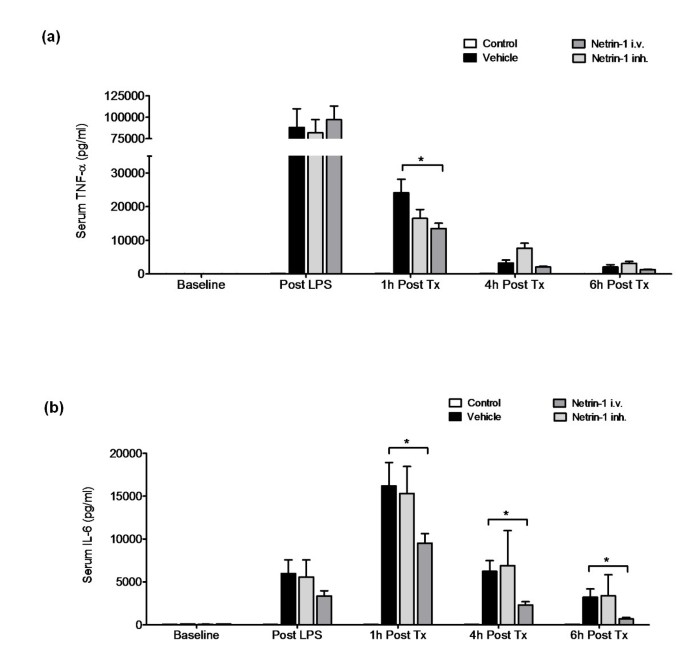

Figure 3

Netrin-1 dampens systemic inflammation. (a) Serum tumor necrosis factor (TNF)-α levels and (b) serum interleukin (IL)-6 levels in controls prior to treatment and 6 hours following treatment with vehicle, netrin-1 i.v. or netrin-1 inh. (data are means ± SEM; *P < 0.05 as indicated, n = 5-6 per group).

Netrin-1 reduces alveolar cytokine levels

To identify whether the anti-inflammatory effect of netrin-1 would influence the inflammatory process in the alveolar compartment of the lung, we performed bronchoalveolar lavage and determined the levels of inflammatory cytokines within this lavage. We found significant reduced levels of TNF-α (vehicle, 633 ± 172 pg ml-1; netrin-1 i.v., 84 ± 5 pg ml-1; netrin-1 inh., 168 ± 74 pg ml-1; both P < 0.05), interleukin-1β (vehicle, 713 ± 280 pg ml-1; netrin-1 i.v., 108 ± 5 pg ml-1; netrin-1 inh., 164 ± 18 pg ml-1; both P < 0.05) and interleukin-6 (vehicle, 906 ± 207 pg ml-1; netrin-1 i.v., 269 ± 31 pg ml-1; netrin-1 inh., 399 ± 101 pg ml-1; both P < 0.05) in the BAL of the animals treated with netrin-1 compared to the vehicle group (Figures 4a-c). When determining the concentration of interleukin-8 within the BAL, we found a significant reduction in the netrin-1 i.v. group and a trend toward a reduction in the netrin-1 inh. group (Figure 4d).
Figure 4

Netrin-1 dampens pulmonary cytokine release. (a) TNF-α levels in bronchoalveolar lavage (BAL) of control animals, animals treated with vehicle netrin-1 i.v. or netrin-1 inh. (b) Concentration of interleukin-1β in the BAL. (c) Concentration of interleukin-6 in the BAL. (d) Concentration of interleukin-8 in the BAL prior to treatment and 6 hours following treatment with vehicle, netrin-1 i.v. or netrin-1 inh. (data are means ± SEM; *P < 0.05 as indicated, n = 5-6 per group).

Netrin-1 reduces protein content, MPO activity and histopathological signs of ALI

Next, we proceeded to investigate whether netrin-1 influences the content of protein within the alveolar space and the leukocyte activity measured through the activity of MPO. Netrin-1 i.v. and netrin-1 inh. reduced the protein content and MPO activity within the alveolar space (Figures 5a and 5b). This was reflected in the histopathological sections, demonstrating reduced histological signs of inflammation in the netrin-1 treatment groups (Figure 5c).

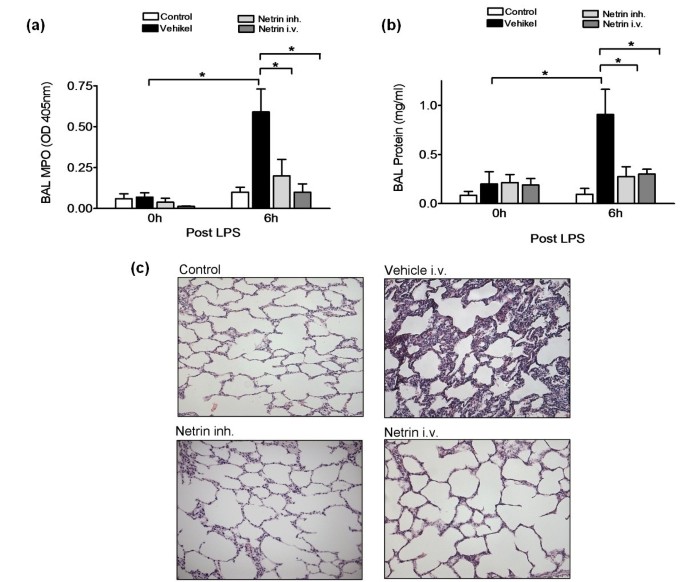

Figure 5

Netrin-1 dampens myeloperoxidase activity and histopathological signs of pulmonary inflammation. (a) Myeloperoxidase activity in the BAL of control animals, animals treated with vehicle after LPS infusion and animals treated with either netrin-1 i.v. or netrin-1 inh. (b) Protein content in the BAL of experimental animals. (c) Histology sections of controls and 6 hours following treatment with vehicle, netrin-1 i.v. or netrin-1 inh. (data are means ± SEM; *P < 0.05 as indicated, n = 5-6 per group, histology sections are from one representative animal per group).

Discussion

We report here that the neuronal guidance protein netrin-1 significantly dampens the degree of intra-alveolar inflammation in a porcine model of lung injury. Netrin-1 administration resulted in a reduction of intra-alveolar MPO activity, reduced alveolar protein content and improved histological appearance of pulmonary tissue. Furthermore, we found that netrin-1 administration reduced the concentration of inflammatory cytokines within the alveolar space. As such, netrin-1 dampened a crucial component of lung injury, since pulmonary inflammation is the major contributor to the pathological derangement of ALI.

The initial stages of ALI are marked by the infiltration of neutrophils from the vascular into the alveolar space, which becomes the site of a profound inflammation [28]. Proinflammatory cytokines such as TNF-α or interleukin-8 foster this intra-alveolar inflammation, which might subsequently become self-propagating and persist long after the initial pulmonary insult is resolved. The clinical prognosis of ALI correlates with the extent of this intra-alveolar inflammation [14, 15]. This is underscored by the fact that the concentration of inflammatory cytokines is reduced in patients surviving ARDS compared to nonsurvivors [29]. Current therapy strategies are aimed to achieve control of this pulmonary inflammation though antimicrobial therapy or the modification of mechanical ventilation [30, 31]. In this study, we attempted a novel approach for anti-inflammatory control and used the neuronal guidance protein netrin-1 in a large animal model. As such, we moved from a murine wild-type and knockout model, which focused on the mechanisms underlying the anti-inflammatory properties of netrin-1, toward the porcine LPS-induced ALI model that more closely resembles the human pathobiology. We were able to confirm in this model the potential of netrin-1 to reduce intra-alveolar inflammation, which was associated with a tendency of netrin-1 to improve oxygenation. Furthermore, alveolar cytokine levels were significantly reduced through netrin-1 treatment. Therefore, our findings demonstrate that a significant reduction of the inflammatory changes of ALI is possible though the neuronal guidance protein netrin-1 and confirm our previous findings in mice [20].

Only recently neuronal guidance proteins have been discovered to hold anti-inflammatory potential [18, 19, 26]. The guidance protein netrin-1 serves as a stop signal during axonal growth in the CNS [32, 33]. Subsequent work has demonstrated the expression of netrin-1 outside the CNS and the importance of netrin-1 for neutrophil migration [19]. Netrin-1 is expressed in large quantities in the endothelium, where it induces angiogenesis and controls the trafficking of leukocytes from the vascular space [19, 34]. Furthermore, netrin-1 possesses anti-inflammatory and tissue-protective potential during renal and myocardial ischemia-reperfusion (IR) injury [35, 36]. Netrin-1 is also expressed in significant amounts by epithelial cells on mucosal surfaces such as the intestine and the lung [26]. We have demonstrated previously that pulmonary netrin-1 expression is reduced during inflammatory or mechanical lung injury and that substitution with exogenous netrin-1 results in reduced pulmonary inflammation through the A2BAR. In this study, we attempted to further these findings one step closer to clinical application and administered netrin-1 i.v. or netrin-1 inh. in a porcine model. We found in this study that the netrin-1 i.v. application possesses greater anti-inflammatory potential compared to netrin-1 inh. This was somehow surprising to us, given that we previously found an equal potential of intravenous and inhaled netrin-1 administration to reduce pulmonary inflammation in our murine study. This finding is likely explained by the fact that netrin-1 i.v. is more efficient owing to the safe and controlled administration of netrin-1 via intravenous infusion compared to the netrin-1 inh. application that carries the limitations of nebulized drug administration during mechanical ventilation. No drugs are currently available to induce netrin-1 selectively, but this could be the focus of future research and would avoid the administration of the expensive recombinant protein.

Several other limitations of the presented study have to be outlined. First, we did not confirm the reduction of netrin-1 within pulmonary tissue, since the netrin-1 sequence in the porcine species used is not available. Given the fact that both Ly et al. [19] and Mirakaj et al. [20] demonstrated a reduction of netrin-1 within pulmonary tissue during lung injury, it has to be considered likely that a repression of netrin-1 might also be present in this model of ALI. Second, we did not demonstrate a survival benefit in the study group receiving netrin-1 treatment compared to the vehicle group. Several studies have used porcine models of ALI to report important novel findings, yet have not reported the associated mortality benefit of their intervention [37, 38]. During a potential long-term ventilation model, repeated administration of netrin-1 would be necessary to prove a benefit of netrin-1 for survival. Given the extremely high cost of such an intervention at the moment, future well-funded studies will be necessary to answer this question. Finally, the small number of animals used has to be seen as a limitation of this study. The primary focus of this study, however, was to highlight a novel approach for the control of intra-alveolar inflammation through a neuronal guidance protein in a large animal model, and this is described in this study for the first time. The tendency for improved oxygenation in both netrin-1 groups is most likely a reflection of this reduced intra-alveolar inflammation, as we also found a significant reduction of intra-alveolar cytokine levels and improved histology in these groups. Therefore, on the basis of our data, although limited through the number of animals studied, we propose to pursue this novel substance as a potential future therapeutic agent for conditions associated with lung injury.

Taken together, the present study implicates a novel approach for the control of pulmonary inflammation during the initial stages of ALI. Additional studies are needed to further explore the therapeutic potential of netrin-1 during acute inflammatory changes in the lung, thereby leading the way to a possible translation from animal studies toward novel therapies for ALI in humans.

Conclusions

In this study, we addressed our recent finding of the anti-inflammatory role of netrin-1 and used inhaled or intravenous netrin-1 to reduce intra-alveolar inflammation during ALI in a porcine model. ALI is marked by a self-propagating inflammation within the alveolar space that results in the loss of pulmonary function. Therapeutic strategies are aimed at reducing this inflammatory process. We present here evidence that the application of netrin-1 results in reduced leukocyte activity within the alveolar space, dampens the release of cytokines and improves the histolopathological changes of pulmonary tissue in animals exposed to netrin-1. This study therefore brings one step forward the only recently discovered anti-inflammatory function of netrin-1 to a potential therapeutic translation and application for the treatment of ALI.

Key messages

  • Inhaled netrin-1 dampens the extent of intra-alveolar inflammation during ALI.

  • Intravenous application of netrin-1 additionally possesses the potential to reduce systemic inflammation measured as serum cytokine concentration during ALI.

  • The histological and radiological pathology of ALI are attenuated through netrin-1.

  • To the best of our knowledge, this study is the first to report the potential of recombinant netrin-1 in a large animal model and enables a possible translation of the research findings from mice to humans.

Notes

Abbreviations

ALI:

acute lung injury

ARDS:

acute respiratory distress syndrome

BAL:

bronchoalveolar lavage

CNS:

central nervous system

CT:

computed tomography

CVP:

central venous pressure

DO2l

systemic oxygen delivery

EVWL:

extravascular lung water

H&E:

hematoxylin and eosin

HR:

heart rate

IL:

interleukin

inh.:

inhaled

ITBV:

intrathoracic blood volume

i.v.:

intravenous

MAP:

mean arterial pressure

LPS:

lipopolysaccharide

MPO:

myeloperoxidase

PCWP:

pulmonary capillary wedge pressure

PAP:

pulmonary artery pressure

PVR:

pulmonary vascular resistance

SVR:

systemic vascular resistance

TNF:

tumor necrosis factor.

Declarations

Acknowledgements

We thank Alice Mager for technical assistance with enzyme-linked immunosorbent assay measurements and for histology sections. We also thank Professor. B. Vollmar (Institute for Experimental Surgery University of Rostock) for support in animal experiments and Professor K. Hauenstein and his team (Department of Diagnostic Radiology University of Rostock) for CT scans. This work was supported by a Fortüne University of Tuebingen Grant (Fortüne Grant 1778-0-0), a grant from the European Society of Anesthesiology (ESA Research Grant) to VM, and Deutsche Forschungsgemeinschaft (DFG) grant DFG-RO 3671/4-1 to PR.

Authors’ Affiliations

(1)
Department of Anesthesiology and Intensive Care Medicine, University Hospital Rostock, Rostock University
(2)
Department of Anesthesiology and Intensive Care Medicine, University Hospital Tübingen, Eberhard-Karls University
(3)
Clinic of Anesthesiology, Intensive Care Medicine and Pain Therapy, University Hospital Frankfurt am Main, Goethe University

References

  1. Luhr OR, Antonsen K, Karlsson M, Aardal S, Thorsteinsson A, Frostell CG, Bonde J: Incidence and mortality after acute respiratory failure and acute respiratory distress syndrome in Sweden, Denmark, and Iceland. The ARF Study Group. Am J Respir Crit Care Med 1999, 159: 1849-1861.View ArticlePubMedGoogle Scholar
  2. Ware LB, Matthay MA: The Acute Respiratory Distress Syndrome. N Engl J Med 2000, 342: 1334-1349. 10.1056/NEJM200005043421806View ArticlePubMedGoogle Scholar
  3. Reutershan J, Ley K: Bench-to-bedside review: acute respiratory distress syndrome: how neutrophils migrate into the lung. Crit Care 2004, 8: 453-461. 10.1186/cc2881PubMed CentralView ArticlePubMedGoogle Scholar
  4. Reutershan J, Morris MA, Burcin TL, Smith DF, Chang D, Saprito MS, Ley K: Critical role of endothelial CXCR2 in LPS-induced neutrophil migration into the lung. J Clin Invest 2006, 116: 695-702. 10.1172/JCI27009PubMed CentralView ArticlePubMedGoogle Scholar
  5. Abraham E, Carmody A, Shenkar R, Arcaroli J: Neutrophils as early immunologic effectors in hemorrhage- or endotoxemia-induced acute lung injury. Am J Physiol Lung Cell Mol Physiol 2000, 279: L1137-L1145.PubMedGoogle Scholar
  6. Azoulay E, Darmon M, Delclaux C, Fieux F, Bornstain C, Moreau D, Attalah H, Le Gall JR, Schlemmer B: Deterioration of previous acute lung injury during neutropenia recovery. Crit Care Med 2002, 30: 781-786. 10.1097/00003246-200204000-00010View ArticlePubMedGoogle Scholar
  7. Ranieri VM, Giunta F, Suter PM, Slutsky AS: Mechanical ventilation as a mediator of multisystem organ failure in acute respiratory distress syndrome. JAMA 2000, 284: 43-44. 10.1001/jama.284.1.43View ArticlePubMedGoogle Scholar
  8. Parsons PE, Eisner MD, Thompson BT, Matthay MA, Ancukiewicz M, Bernard GR, Wheeler AP: Lower tidal volume ventilation and plasma cytokine markers of inflammation in patients with acute lung injury. Crit Care Med 2005, 33: 1-6. discussion 230-232 10.1097/01.CCM.0000149854.61192.DCView ArticlePubMedGoogle Scholar
  9. Eckle T, Grenz A, Laucher S, Eltzschig HK: A2B adenosine receptor signaling attenuates acute lung injury by enhancing alveolar fluid clearance in mice. J Clin Invest 2008, 118: 3301-3315.PubMed CentralPubMedGoogle Scholar
  10. Reutershan J, Cagnina RE, Chang D, Linden J, Ley K: Therapeutic anti-inflammatory effects of myeloid cell adenosine receptor A2a stimulation in lipopolysaccharide-induced lung injury. J Immunol 2007, 179: 1254-1263.View ArticlePubMedGoogle Scholar
  11. Reutershan J, Vollmer I, Stark S, Wagner R, Ngamsri KC, Eltzschig HK: Adenosine and inflammation: CD39 and CD73 are critical mediators in LPS-induced PMN trafficking into the lungs. FASEB J 2009, 23: 473-482. 10.1096/fj.08-119701View ArticlePubMedGoogle Scholar
  12. Brower RG, Lanken PN, MacIntyre N, Matthay MA, Morris A, Ancukiewicz M, Schoenfeld D, Thompson BT: Higher versus lower positive end-expiratory pressures in patients with the acute respiratory distress syndrome. N Engl J Med 2004, 351: 327-336. 10.1056/NEJMoa032193View ArticlePubMedGoogle Scholar
  13. Brower RG, Morris A, MacIntyre N, Matthay MA, Hayden D, Thompson T, Clemmer T, Lanken PN, Schoenfeld D: Effects of recruitment maneuvers in patients with acute lung injury and acute respiratory distress syndrome ventilated with high positive end-expiratory pressure. Crit Care Med 2003, 31: 2592-2597. 10.1097/01.CCM.0000057909.18362.F6View ArticlePubMedGoogle Scholar
  14. Meduri GU, Headley S, Kohler G, Stentz F, Tolley E, Umberger R, Leeper K: Persistent elevation of inflammatory cytokines predicts a poor outcome in ARDS. Plasma IL-1 beta and IL-6 levels are consistent and efficient predictors of outcome over time. Chest 1995, 107: 1062-1073. 10.1378/chest.107.4.1062View ArticlePubMedGoogle Scholar
  15. Meduri GU, Kohler G, Headley S, Tolley E, Stentz F, Postlethwaite A: Inflammatory cytokines in the BAL of patients with ARDS. Persistent elevation over time predicts poor outcome. Chest 1995, 108: 1303-1314. 10.1378/chest.108.5.1303View ArticlePubMedGoogle Scholar
  16. Kennedy TE, Serafini T, de la Torre JR, Tessier-Lavigne M: Netrins are diffusible chemotropic factors for commissural axons in the embryonic spinal cord. Cell 1994, 78: 425-435. 10.1016/0092-8674(94)90421-9View ArticlePubMedGoogle Scholar
  17. Serafini T, Kennedy TE, Galko MJ, Mirzayan C, Jessell TM, Tessier-Lavigne M: The netrins define a family of axon outgrowth-promoting proteins homologous to C. elegans UNC-6. Cell 1994, 78: 409-424. 10.1016/0092-8674(94)90420-0View ArticlePubMedGoogle Scholar
  18. Wu JY, Feng L, Park HT, Havlioglu N, Wen L, Tang H, Bacon KB, Jiang Z, Zhang X, Rao Y: The neuronal repellent Slit inhibits leukocyte chemotaxis induced by chemotactic factors. Nature 2001, 410: 948-952. 10.1038/35073616PubMed CentralView ArticlePubMedGoogle Scholar
  19. Ly NP, Komatsuzaki K, Fraser IP, Tseng AA, Prodhan P, Moore KJ, Kinane TB: Netrin-1 inhibits leukocyte migration in vitro and in vivo. Proc Natl Acad Sci USA 2005, 102: 14729-14734. 10.1073/pnas.0506233102PubMed CentralView ArticlePubMedGoogle Scholar
  20. Mirakaj V, Thix CA, Laucher S, Mielke C, Morote-Garcia JC, Schmit MA, Henes J, Unertl KE, Kohler D, Rosenberger P: Netrin-1 dampens pulmonary inflammation during acute lung injury. Am J Respir Crit Care Med 2010, 181: 815-824. 10.1164/rccm.200905-0717OCView ArticlePubMedGoogle Scholar
  21. Rosenberger P, Schwab JM, Mirakaj V, Masekowsky E, Mager A, Morote-Garcia JC, Unertl K, Eltzschig HK: Hypoxia-inducible factor-dependent induction of netrin-1 dampens inflammation caused by hypoxia. Nat Immunol 2009, 10: 195-202. 10.1038/ni.1683View ArticlePubMedGoogle Scholar
  22. Kong T, Westerman KA, Faigle M, Eltzschig HK, Colgan SP: HIF-dependent induction of adenosine A2B receptor in hypoxia. FASEB J 2006, 20: 2242-2250. 10.1096/fj.06-6419comView ArticlePubMedGoogle Scholar
  23. Schingnitz U, Hartmann K, Macmanus CF, Eckle T, Zug S, Colgan SP, Eltzschig HK: Signaling through the A2B adenosine receptor dampens endotoxin-induced acute lung injury. J Immunol 2010, 184: 5271-5279. 10.4049/jimmunol.0903035PubMed CentralView ArticlePubMedGoogle Scholar
  24. Vagts DA, Iber T, Puccini M, Szabo B, Haberstroh J, Villinger F, Geiger K, Noldge-Schomburg GF: The effects of thoracic epidural anesthesia on hepatic perfusion and oxygenation in healthy pigs during general anesthesia and surgical stress. Anesth Analg 2003, 97: 1824-1832. 10.1213/01.ANE.0000087062.94268.C5View ArticlePubMedGoogle Scholar
  25. Vagts DA, Iber T, Szabo B, Haberstroh J, Reising K, Puccini M, Geiger K, Noldge-Schomburg GF: Effects of epidural anaesthesia on intestinal oxygenation in pigs. Br J Anaesth 2003, 90: 212-220. 10.1093/bja/aeg039View ArticlePubMedGoogle Scholar
  26. Henes J, Schmit MA, Morote-Garcia JC, Mirakaj V, Kohler D, Glover L, Eldh T, Walter U, Karhausen J, Colgan SP, Rosenberger P: Inflammation-associated repression of vasodilator-stimulated phosphoprotein (VASP) reduces alveolar-capillary barrier function during acute lung injury. FASEB J 2009, 23: 4244-4255. 10.1096/fj.09-138693PubMed CentralView ArticlePubMedGoogle Scholar
  27. Rosenthal C, Caronia C, Quinn C, Lugo N, Sagy M: A comparison among animal models of acute lung injury. Crit Care Med 1998, 26: 912-916. 10.1097/00003246-199805000-00027View ArticlePubMedGoogle Scholar
  28. Anderson WR, Thielen K: Correlative study of adult respiratory distress syndrome by light, scanning, and transmission electron microscopy. Ultrastruct Pathol 1992, 16: 615-628. 10.3109/01913129209023751View ArticlePubMedGoogle Scholar
  29. Weiland JE, Davis WB, Holter JF, Mohammed JR, Dorinsky PM, Gadek JE: Lung neutrophils in the adult respiratory distress syndrome: clinical and pathophysiologic significance. Am Rev Respir Dis 1986, 133: 218-225.PubMedGoogle Scholar
  30. Amato MB, Carvalho CR, Isola A, Vieira S, Rotman V, Moock M, Jose A, Franca S: Mechanical ventilation in Acute Lung Injury (ALI)/Acute Respiratory Discomfort Syndrome (ARDS). J Bras Pneumol 2007,33(Suppl 2S):S119-127.View ArticlePubMedGoogle Scholar
  31. Amato MB, Barbas CS, Medeiros DM, Magaldi RB, Schettino GP, Lorenzi-Filho G, Kairalla RA, Deheinzelin D, Munoz C, Oliveira R, Takagaki TY, Carvalho CR: Effect of a protective-ventilation strategy on mortality in the acute respiratory distress syndrome. N Engl J Med 1998, 338: 347-354. 10.1056/NEJM199802053380602View ArticlePubMedGoogle Scholar
  32. Serafini T, Colamarino SA, Leonardo ED, Wang H, Beddington R, Skarnes WC, Tessier-Lavigne M: Netrin-1 is required for commissural axon guidance in the developing vertebrate nervous system. Cell 1996, 87: 1001-1014. 10.1016/S0092-8674(00)81795-XView ArticlePubMedGoogle Scholar
  33. Colamarino SA, Tessier-Lavigne M: The axonal chemoattractant netrin-1 is also a chemorepellent for trochlear motor axons. Cell 1995, 81: 621-629. 10.1016/0092-8674(95)90083-7View ArticlePubMedGoogle Scholar
  34. Park KW, Crouse D, Lee M, Karnik SK, Sorensen LK, Murphy KJ, Kuo CJ, Li DY: The axonal attractant netrin-1 is an angiogenic factor. Proc Natl Acad Sci USA 2004, 101: 16210-16215. 10.1073/pnas.0405984101PubMed CentralView ArticlePubMedGoogle Scholar
  35. Wang W, Reeves WB, Ramesh G: Netrin-1 and kidney injury. I. Netrin-1 protects against ischemia-reperfusion injury of the kidney. Am J Physiol Renal Physiol 2008, 294: F739-F747. 10.1152/ajprenal.00508.2007PubMed CentralView ArticlePubMedGoogle Scholar
  36. Zhang J, Cai H: Netrin-1 prevents ischemia/reperfusion-induced myocardial infarction via a DCC/ERK1/2/eNOS(s1177)/NO/DCC feed-forward mechanism. J Mol Cell Cardiol 2010, 48: 1060-1070. 10.1016/j.yjmcc.2009.11.020PubMed CentralView ArticlePubMedGoogle Scholar
  37. Grasso S, Stripoli T, Sacchi M, Trerotoli P, Staffieri F, Franchini D, De Monte V, Valentini V, Pugliese P, Crovace A, Driessen B, Fiore T: Inhomogeneity of lung parenchyma during the open lung strategy: a computed tomography scan study. Am J Respir Crit Care Med 2009, 180: 415-423. 10.1164/rccm.200901-0156OCView ArticlePubMedGoogle Scholar
  38. Richard JC, Janier M, Lavenne F, Berthier V, Lebars D, Annat G, Decailliot F, Guerin C: Effect of position, nitric oxide, and almitrine on lung perfusion in a porcine model of acute lung injury. J Appl Physiol 2002, 93: 2181-2191.View ArticlePubMedGoogle Scholar

Copyright

© Mutz et al.; licensee BioMed Central Ltd. 2010

This article is published under license to BioMed Central Ltd. This is an open access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/2.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
