- Open Access
Brain metabolism is significantly impaired at blood glucose below 6 mM and brain glucose below 1 mM in patients with severe traumatic brain injury
Critical Care volume 14, Article number: R13 (2010)
The optimal blood glucose target following severe traumatic brain injury (TBI) must be defined. Cerebral microdialysis was used to investigate the influence of arterial blood and brain glucose on cerebral glucose, lactate, pyruvate, glutamate, and calculated indices of downstream metabolism.
In twenty TBI patients, microdialysis catheters inserted in the edematous frontal lobe were dialyzed at 1 μl/min, collecting samples at 60 minute intervals. Occult metabolic alterations were determined by calculating the lactate- pyruvate (L/P), lactate- glucose (L/Glc), and lactate- glutamate (L/Glu) ratios.
Brain glucose was influenced by arterial blood glucose. Elevated L/P and L/Glc were significantly reduced at brain glucose above 1 mM, reaching lowest values at blood and brain glucose levels between 6-9 mM (P < 0.001). Lowest cerebral glutamate was measured at brain glucose 3-5 mM with a significant increase at brain glucose below 3 mM and above 6 mM. While L/Glu was significantly increased at low brain glucose levels, it was significantly decreased at brain glucose above 5 mM (P < 0.001). Insulin administration increased brain glutamate at low brain glucose, but prevented increase in L/Glu.
Arterial blood glucose levels appear to be optimal at 6-9 mM. While low brain glucose levels below 1 mM are detrimental, elevated brain glucose are to be targeted despite increased brain glutamate at brain glucose >5 mM. Pathogenity of elevated glutamate appears to be relativized by L/Glu and suggests to exclude insulin- induced brain injury.
Hyperglycemia aggravates underlying brain damage and influences both morbidity and mortality in critically ill patients [1–3] by inducing tissue acidosis [1, 2], oxidative stress, and cellular immunosuppression  which, in turn, promote the development of multiorgan failure . Hypoglycemia impairs energy supply causing metabolic perturbation  and inducing cortical spreading depolarizations . Consequently, both hyperglycemia and hypoglycemia need to be avoided to prevent aggravation of underlying brain damage.
As shown by van den Berghe and colleagues maintaining normoglycemia is of imminent importance to significantly reduce mortality and improve outcome in surgical and medical intensive care unit (ICU) patients [8, 9]. However, following severe traumatic brain injury (TBI) keeping low arterial blood glucose levels between 3.5 and 6.5 mM was associated with increased intracranial pressure (ICP) and sustained norepinephrine requirements to maintain cerebral perfusion pressure (CPP) . Correcting hyperglycemia (>10 mM) has also been shown to significantly reduce mortality following severe TBI  but special care has to be taken to avoid inducing hypoglycemia [8–15].
To date, the optimal blood glucose range still remains elusive and requirements are discussed controversially as corroborated by the recently published results from the Normoglycaemia in Intensive Care Evaluation and Survival Using Glucose Algorithm Regulation (NICE-SUGAR) trial, which showed a significant increase in mortality in patients subjected to the tight blood glucose range of 4.5 to 6.0 mmol/l compared with the conventional glucose control group with a blood glucose target of 10 mmol/l or less . In patients with acute traumatic [16–18] and ischemic [19, 20] brain damage microdialysis is used to gain detailed insight into otherwise occult metabolic alterations. In this context, glucose, lactate, pyruvate, and glutamate are routinely measured [6, 16, 21, 22]. In addition, calculating different indices allows the unmasking of alterations, which are missed when only considering (normal) absolute values. In this context, the widely used lactate/pyruvate (L/P) ratio unmasks impaired mitochondrial function with sustained cytosolic glycolysis due to diminished or absent oxidative phosphorylation. This results in reduced pyruvate levels due to insufficiently replenished nicotinamide adenine dinucleotide (NAD+) and increased lactate levels due to metabolic short-cutting as pyruvate is metabolized to lactate by lactate dehydrogenase and cannot enter the citric acid cycle. Sustained activation of lactate dehydrogenase insufficiently replenishes NAD+. L/P is increased by ischemia-induced anaerobic glycolysis as well as cytokine-mediated and free radical-mediated mitochondrial damage observed following severe TBI resulting in non-oxidative glycolysis . Increased cerebral L/P unmasking metabolic failure has been shown to preceed rises in ICP, underscoring its importance within bedside metabolic monitoring .
Increased lactate/glucose (L/Glc) ratio reflects sustained lactate production driven by hypoxia-induced and ischemia-induced hyperglycolysis encountered following TBI [24–27] and unmasks functional adaptation processes. Although elevated L/Glc ratio is associated with worse outcome , lactate has also been shown to fuel energy-requiring processes. In this context, astrocytes produce lactate from glutamate previously released by neurons, which is then consumed by neurons even during conditions of preserved aerobic glycolysis [28, 29].
Excessive glutamate-mediated neuronal activation has been shown to increase lactate production under experimental conditions , thus allowing the unmasking of glutamate-driven metabolic impairment by calculating the lactate/glutamate (L/Glu) ratio.
In an attempt to define optimal blood and brain glucose concentrations, we retrospectively analyzed the influence of different arterial blood and brain glucose levels on changes in cerebral metabolism including the calculated L/P, L/Glc, and L/Glu ratio determined by microdialysis in 20 patients with severe TBI requiring prolonged analgesia and sedation. In addition, tissue partial oxygen pressure (ptiO2), jugularvenous oxygen saturation (SjvO2), ICP, CPP, temperature, as well as administration of insulin and norepinephrine were evaluated.
Materials and methods
A total of 20 patients with severe TBI treated at our ICU between August 2007 and September 2008 were investigated in the present study. Extended monitoring using cerebral microdialysis in conjunction with ICP, ptiO2, and SjvO2 is an integral part of our routine ICU treatment protocol in critically ill patients with severe TBI. The study protocol was approved by the local ethics committee. Informed consent for data collection and retrospective evaluation was obtained from relatives.
Standardized clinical management
Intubated and ventilated patients were treated according to our standardized interdisciplinary treatment protocol. Following radiologic, diagnostic, and surgical interventions including insertion of an ICP probe (Neurovent®, Raumedic® AG, 95205 Münchberg, Germany) patients were transferred to our ICU. After 24 hours, a control CT scan was performed to exclude development of a frontal contusion. Thereafter, a multilumen bolt (Licox® IM3 bolt system, Integra Life Sciences Switzerland, 1258 Perly-Geneve, Switzerland) was inserted in the frontal lobe via a twist drill burrhole. With this three lumen bolt, a ptiO2 probe (Licox® IMC oxygen catheter micro probe, Integra Life Sciences Switzerland, 1258 Perly-Geneve, Switzerland), a brain temperature probe (Licox® IMC temperature micro probe, Integra Life Sciences Switzerland, 1258 Perly-Geneve, Switzerland) and a microdialysis catheter (CMA 70 microdialysis bolt catheter, CMA Microdialysis AB 171 18, Solna, Sweden) were inserted. Based on our standardized protocol, the three lumen bolt is inserted in the predominantly injured hemisphere avoiding direct placement in a frontal contusion. As the probes are not positioned until after obtaining a control CT scan approximately 24 hours after TBI, placement within a growing contusion is avoided.
Continuous analgesia (with fentanyl, Sintenyl® (SINTETICA SA Pharmaceuticals, 6850 Mendrisio, Switzerland)) and sedation (midazolam, Dormicum® (Roche Pharma AG, 4153 Reinach, Switzerland)) was controlled by bispectral electroencephalography (BIS VISTA, Aspect Medical Systems, Inc., One Upland Road, Norwood, MA, USA). Drug dosage was tapered to maintain a BIS level between 20 and 40. Norepinephrine, dobutamine, and volume of critalloids and colloids were administered to influence CPP. Differentiated CPP management was guided by ptiO2, microdialysis, and transcranial duplex sonography, which allowed CPP to be tapered to values as low as 60 mmHg, depending on the actual requirement. Ventilation and partial pressure of arterial carbon dioxide (paCO2) as well as oxygenation settings (fraction of inspired oxygen, positive end expiratory pressure, and partial pressure of arterial oxygen (paO2)) were guided by SjvO2 and ptiO2 maintaining SjvO2 above 60% and ptiO2 above 15 mmHg. Transfusion of red blood cells was guided by ptiO2 values keeping hematocrit at 24% (8 g/dl) or above and ptiO2 at 15 mmHg or above; i.e., whenever decreased hematocrit below 24% was associated with signs of cerebral metabolic impairment and insufficient oxygenation, one unit of red blood cells was transfused. Brain temperature was maintained between 35.0 and 36.0°C using cooling blankets or an intravenous cooling system (Intravascular Temperature Management: IVTM™, Alsius® Irvine, CA, USA). Treatment measures were adapted and tapered to maintain ICP below 15 mmHg. Only after optimization of all therapeutic interventions did we accept an ICP of 20 mmHg. Patients received enteral nutrition via gastric or jejunal tube within the first 12 hours upon admission to the ICU. Administered calories was adapted according to indirect calorimetry using the Deltatrac™ II (Datex-Ohmeda, GE Healthcare Chalfont St Giles, Bucks UK) performed at least twice weekly. Arterial blood glucose levels were maintained between 4 and 8 mM by adapting insulin dose and/or administered amount of nutrition, depending on the clinical situation and the actual requirements.
Microdialysis and blood glucose analysis
Extracellular brain glucose, lactate, pyruvate, and glutamate were determined by microdialysis. For this, the intracerebral CMA 70 bolt catheter® (10 mm membrane length, membrane cut-off: 20 kDa, CMA Microdialysis AB 171 18, Solna, Sweden) was perfused with commercially available perfusion solutions (Perfusion Fluid CNS, CMA Microdialysis AB 171 18, Solna, Sweden; NaCl 147 mM, KCl 2.7 mM, CaCl2 1.2 mM, MgCl2 0.85 mM) at a fixed rate of 1.0 μl/min using the CMA 107 MD pump® with adjustable flow rate as reported by Vespa and colleagues . Based on the lower recovery rate at the used flow rate of 1.0 μl/min obtained values were multiplied by 3.3 according to the data published by Hutchinson and colleagues [31, 32].
Microdialysis samples were collected over 60 minutes and then analysed using the bedside CMA 600 Microdialysis Analyzer® (CMA Microdialysis AB 171 18, Solna, Sweden), and dialyzed glucose, lactate, pyruvate, and glutamate levels were determined by enzymatic photometric assay.
Arterial blood glucose was measured by an enzymatic-amperometric procedure in the routinely performed blood gas analysis using the ABL825 Flex Analyzer® (Radiometer Medical ApS, Åkadevej 21, DK-2700 Brønshøj, Denmark) as previously reported [8, 33].
To avoid confounding influences related to hyperventilation and ischemia, data points were only included if SjvO2 was above 55% and ptiO2 was above 10 mmHg [34, 35].
Although microdialysis probes were sampled in 60-minute intervals, arterial blood samples were drawn in one to four-hour intervals, depending on the clinical situation to correct and adapt ventilator settings (paO2 and paCO2) or to adapt insulin dose according to the measured arterial blood glucose levels. For the present analysis, only cerebral microdialysis samples obtained at the same time point of arterial blood glucose measurement were evaluated.
Arterial blood glucose levels between 4.0 and 8.0 mM were considered normoglycemic; blood glucose levels exceeding 8.0 and below 4.0 mM were defined as hyperglycemic and hypoglycemic, respectively.
Search for optimal blood glucose levels was performed by assessing changes in brain metabolism. For this glucose, lactate, pyruvate, glutamate, and the calculated L/P, L/Glc, L/Glu ratios were determined at different pre-defined arterial blood and brain glucose clusters.
Changes in cerebral metabolic parameters are shown as box plots. Significant differences were determined by analysis of variance (ANOVA) on ranks followed by post hoc multiple comparisons (Dunn's method). Differences were rated significant at P < 0.05. Graphical and statistical analysis were performed using SigmaPlot10® and SigmaStat3.5® (Systat Software, Inc. San Jose, CA., USA), respectively.
A total of 20 patients (9 female and 11 male patients) with an average age of 29 years (range 16 to 62 years) were investigated. Although seven patients presented with an isolated head injury, 13 had additional injuries with a median abbreviated injury score (AIS) 5 and injury severity score (ISS) 29. On average, the initial Glasgow coma score was 7 (3 to 14), 18 patients exhibited mixed cerebral lesions, length of ICU stay was 27 days (5 to 54 days) and microdialysis was performed for 14 days (4 to 39 days). Of these 20 investigated patients, three patients died. Microdialysis catheter and ptiO2/temperature probes were inserted in the edematous hemisphere with 8 in the right frontal lobe and 12 in the left frontal lobe. Insertion of probes did not induce hemorrhagic damage.
A total of 3,102 corresponding arterial blood and brain microdialysis readings were obtained. Distribution of measurements within pre-defined glucose clusters are given in Table 1. Based on the arterial blood glucose target used in clinical routine the majority of measurements were within the blood glucose clusters 5 to 8 mM (Table 1). Time-dependent changes were considered by investigating the influence of arterial blood and brain glucose on the different parameters of brain metabolism determined by microdialysis. As there were no significant differences between weeks one, two, and three (data not shown), all data points were summarized.
Influence of arterial blood glucose levels on cerebral metabolism

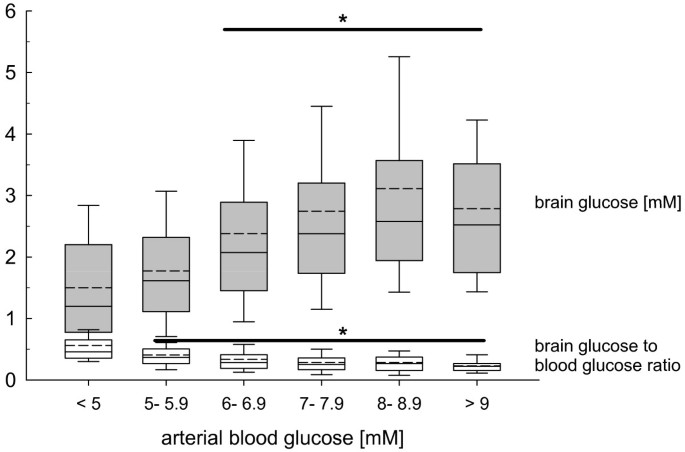

Increasing arterial blood glucose levels grouped in pre-defined clusters revealed a steady and significant increase in brain glucose levels at arterial blood glucose levels above 6 mM compared with arterial blood glucose values less than 6 mM (P < 0.001, ANOVA on ranks, post hoc Dunn's test; Figure 1). The calculated brain-to-blood glucose ratio was significantly reduced at arterial blood glucose levels above 5 mM (P < 0.001, ANOVA on ranks, post hoc Dunn's test; Figure 1).

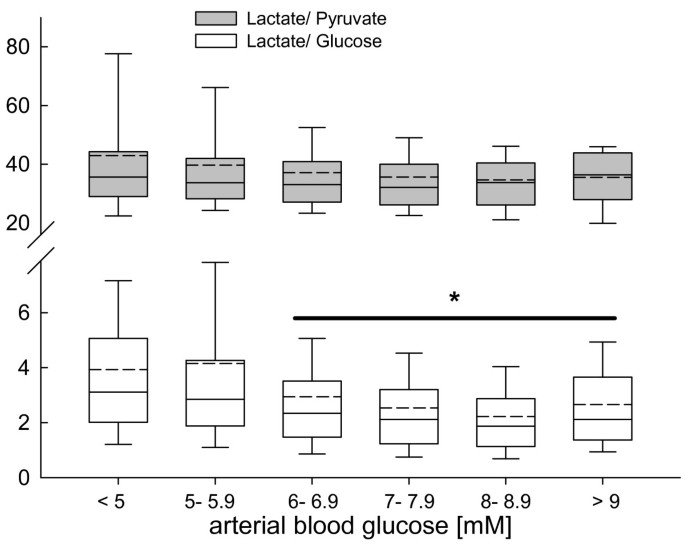

Although cerebral L/P ratio was not influenced by arterial blood glucose levels, calculated L/Glc ratio was significantly decreased at arterial blood glucose levels above 6 mM (P < 0.001, ANOVA on ranks, post hoc Dunn's test; Figure 2).
Increasing arterial blood glucose levels were associated with a significant increase in brain glutamate and a significant decrease in calculated L/Glu ratio at arterial blood glucose concentrations above 6 mM (P < 0.001, ANOVA on ranks, post hoc Dunn's test; Figure 3).
Influence of brain glucose levels on cerebral metabolism
Increasing brain glucose concentrations significantly decreased calculated L/P and L/Glc ratio at brain glucose levels above 1 mM (P < 0.001, ANOVA on ranks, post hoc Dunn's test; Figure 4). There was a further significant decrease at brain glucose concentrations above 3 mM, reaching lowest values at brain glucose above 6 mM.
Brain glucose levels exceeding 5 mM was associated with a significant increase in cerebral glutamate concentrations and in parallel with a significant decrease in calculated L/Glu ratio (P < 0.001, ANOVA on ranks, post hoc Dunn's test; Figure 5).

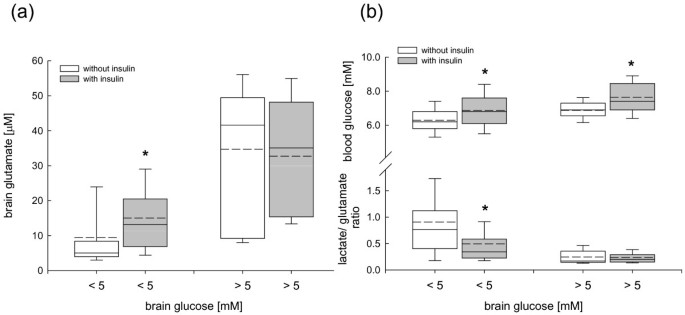

Impact of insulin on brain metabolism, glutamate and lactate-to-glutamate ratio
Overall, arterial blood glucose levels were significantly increased whenever insulin was given (7 ± 0.03 vs. 6.1 ± 0.02 mM; P < 0.001). Overall, administration of insulin was associated with significantly increased extracellular brain glucose (2.5 ± 0.05 vs. 1.9 ± 0.03; P < 0.001), significantly decreased brain lactate (4.4 ± 0.02 vs. 5 ± 0.05 mM; P < 0.001), significantly reduced L/Glc ratio (0.46 ± 0.02 vs. 3.7 ± 0.1; P < 0.001), significantly elevated brain glutamate (17 ± 0.4 vs. 10 ± 0.4 μM; P < 0.001), and significantly decreased L/Glu ratio (0.47 ± 0.02 vs. 0.9 ± 0.03; P < 0.001).
Administration of insulin at brain glucose less than 5 mM (the threshold determined in Figure 5) was associated with a significant increase in brain glutamate (Figure 6a) and unchanged brain lactate levels (3.8 to 5.3 mM) resulting in a significantly decreased L/Glu ratio (Figure 6b). In addition, L/Glc ratio was significantly reduced at brain glucose below 5 mM (2.9 ± 0.06 vs 3.7 ± 0.1 mM; P < 0.001) and brain glucose above 5 mM (0.83 ± 0.03 vs. 0.94 ± 0.06 mM; P = 0.049) under the influence of insulin. Arterial blood glucose levels were significantly increased whenever insulin was administered compared with time points when insulin was not infused (Figure 6b).
Influence of arterial blood and brain glucose on ptiO2, SjvO2, ICP, and CPP
ptiO2, SjvO2, ICP, and CPP were not influenced by the different arterial blood or brain glucose concentrations (Table 1) or the administration of insulin (data not shown).
The present study depicts the impact of blood and brain glucose levels and the effects of insulin on post-traumatic cerebral metabolism using bedside microdialysis in a routine intensive care setting. The calculated metabolic indices L/P, L/Glc, and L/Glu appear helpful in identifying optimal arterial blood and brain glucose levels. The present results suggest that brain glucose below 1 mM should be avoided and arterial blood glucose above 5 mM to 9 mM promoted. Insulin was associated with signs of improved cerebral metabolism reflected by significantly increased interstitial glucose, diminished lactate, reduced L/Glc ratio, and decreased L/Glu ratio.
Cerebral glucose uptake and glucose transporter
Glucose is the predominant cerebral energetic compound, fueling both neurons and astrocytes . In TBI patients, glucose was metabolized to both lactate and pyruvate without signs of anaerobic metabolism as reflected by unchanged L/P ratio . Cerebral glucose uptake occurs via various glucose transporter (GLUT) proteins located in microvascular endothelial cells (GLUT1), glia (GLUT1), and neurons (GLUT3) , which are facilitative and energy-independent transporters mediating glucose equilibration. Glucose accumulation is avoided by the bi-directional flux, which is influenced by the glucose concentration gradient . The different uptake kinetics defined by the Michaelis-Menten equation (Km) guarantee glucose uptake even at low blood glucose levels, which is essential for neurons especially during hypoglycemia (GLUT3: 2.8 mM, GLUT1: 8 mM) . Glucose uptake mediated by GLUT1 and GLUT3 occurs independent of insulin. Following experimental TBI, significantly increased GLUT3 and significantly decreased GLUT1  suggests a mechanism of autoprotection against hypoglycemia due to increased expression of high affinity GLUT3 transporters (Km 2.8 mM). It is unknown if this is also valid in humans. The present results allow us to speculate about possible functional alterations of glucose uptake. In this context, cerebral glucose uptake expressed by the calculated brain glucose to blood glucose ratio was significantly increased at low blood glucose below 5 mM followed by a significant decrease at arterial blood glucose of more than 5 mM, reaching lowest brain-to-blood glucose ratio levels at blood glucose above 8 mM. This pattern suggests functional adaptive processes possibly by increased GLUT transporter activity at low arterial blood glucose levels and decreased GLUT transporter activity at higher arterial blood glucose levels. This could reflect a saturation effect as suggested by experimental data showing that the bi-directional flux is influenced by the glucose concentration gradient, which reduces GLUT activity at increased brain glucose levels . An alternative explanation could be a diffusion gradient effect. However, the missing further increase in brain glucose at arterial blood glucose of more than 8 mM with the observed plateau is in favor of a tightly regulated glucose uptake as suggested under experimental conditions . Overall, the presently observed profile suggests that arterial blood glucose levels above 8 mM are not required to supply the brain with sufficient amounts of glucose.
Cerebral glucose metabolism, lactate-to-pyruvate ratio, and lactate-to-glucose ratio
Based on experimental and clinical studies glycolysis is not only regionally and temporally heterogeneous [18, 24, 25, 28, 39] but is also influenced by the functional posttraumatic changes of various enzymes important in regulating glucose metabolism such as glucokinase (hexokinase) , pyruvate dehydrogenase , and the pentose phosphate pathway . This contributes to impaired substrate utilization and substrate production, resulting in reduced mitochondrial ATP production. In addition, post-traumatic mitochondrial damage and disturbed oxidative phosphorylation force cytosolic glycolysis, which increases lactate production. Lactate is then metabolized to pyruvate to generate ATP . This metabolic deviation is reflected by elevated L/P ratio used to unmask energetic crisis [6, 16, 18, 22] caused by ischemia (anaerobic glycolysis) and mitochondrial damage resulting in non-oxidative phosphorylation. Although ischemia results in decreased glucose supply coinciding with reduced ptiO2 and resulting in decreased cerebral glucose levels, mitochondrial damage is accepted to deviate glucose degradation via oxidative phosphorylation to glycolysis within the cytosolic compartment even under conditions of sufficient perfusion and sufficient ptiO2. This, in turn, will exaggerate glucose consumption to meet aggravated energetic demands because ATP generation by simple glucose degradation is inferior to complete metabolism involving the mitochondrial respiratory chain (aerobic glycolysis). This, in turn, could decrease extracellular glucose levels. Measuring pathologic L/P values at ptiO2 levels exceeding the ischemic threshold of 10 mmHg (median: 30 mmHg, Table 1)  suggests that mitochondrial dysfunction is the underlying cause for the observed signs of metabolic impairment reflected by elevated L/P and L/Glc ratios. Whether this is an adaptive and thus normal process or if this pattern is to be considered a sign of irreversible damage cannot be answered by the present study. Further studies are required to determine if relative changes in ptiO2 reflecting alterations in microcirculatory perfusion unmask relative ischemia at ptiO2 values above the ischemic threshold of 10 mmHg. A decrease in ptiO2 from any starting point would be expected to result in reduced glucose supply. Furthermore, the present data does not allow us to differentiate if low brain glucose levels result from impaired perfusion, possibly being a more sensitive parameter for insufficient perfusion compared with ptiO2 or if decreased brain glucose stems from excessive glucose metabolism.
As shown by different authors concomitant decrease in cerebral glucose below 0.7 mM  (determined at 0.3 μl/min) or below 0.2 mM (determined at 1 μl/min)  coinciding with an increase in L/P of more than 40 reflected cerebral ischemia . An increase in L/P of more than 25 has also been shown to predict subsequent intracranial hypertension (>20 mmHg) .
The calculated L/Glc ratio is a marker of increased glycolysis resulting either from exaggerated substrate supply, i.e., hyperglycemia , impaired enzymatic function, or structural and functional mitochondrial damage with a subsequent shift from oxidative/aerobic to non-oxidative and even to ischemia-induced anaerobic glycolysis . A combination of elevated blood glucose levels with an additional insult such as ischemia will aggravate the production of free oxygen radicals, which mediate further structural and functional damage . Metabolic and energetic impairment resulting in increased lactate and tissue acidosis [1, 44] will induce glial and neuronal cell swelling . An increased L/Glc ratio has also been demonstrated to be a predictor of adverse outcome in TBI patients [27, 46].
The observed decrease in L/Glc ratio with increased blood and brain glucose concentrations could result from reduced oxygen and ATP consumption due to sufficient glucose supply, which attenuates lactate production as an alternative energetic compound.
The present study clearly shows that signs of downstream metabolic impairment are influenced differently by blood and brain glucose concentrations. Although L/P ratio is not influenced by low blood glucose below 5 mM, L/Glc was significantly increased. Within the cerebral compartment, low brain glucose below 5 mM was associated with a significant increase in L/P and L/Glc. Highest L/P and L/Glc values were observed at brain glucose below 1 mM with a steady decrease at increasing brain glucose levels. This clearly shows that blood glucose levels do not reflect cerebral glucose metabolism. The observed stable L/P and L/Glc values at brain glucose above 6 mM suggest that higher brain glucose concentrations are required than currently accepted.
Cerebral glutamate and lactate-to-glutamate ratio
Glutamate, known for its excitotoxic potential, is maintained at low levels due to highly efficient glial and neuronal uptake . Under pathologic conditions, insufficient oxygen and glucose supply resulting in energetic perturbation impairs ATP-dependent pump processes. Consequently, extracellular glutamate increases due to excessive neuronal activation, reversal of glutamate uptake, and leakage from damaged astrocytes and neurons . According to the present study, interstitial glutamate was significantly increased at low brain glucose below 2 mM (Figure 5), suggesting sustained release due to depolarization-induced glutamate efflux caused by low glucose levels . Pathogenity of elevated glutamate is reflected by the significant increase in cerebral L/Glu ratio. This is in line with experimental and clinical studies showing that glutamate induces glycolysis and lactate production [30, 50]. The presently observed increase in glutamate corresponds, at least in part, to the results published by Vespa and colleagues investigating the impact of low arterial blood glucose between 4.4 and 6.1 mM . In the present post hoc analysis, increasing brain glucose by more than 4 to 5 mM was associated with significantly elevated brain glutamate. However, contrary to elevated brain glutamate at low brain glucose values the significantly increased brain glutamate concentrations at higher brain glucose were associated with an significant decrease in L/Glu. This suggests a different pathologic impact of glutamate depending on the underlying brain glucose level and the degree of energetic impairment. Although low brain glucose promotes energetic failure with subsequent glutamate release and glutamate-mediated lactate production (increased L/Glu), high brain glucose levels seem to support production of energy-related compounds such as glutamate, which is an essential key player within the intermediate metabolism. Based on in vivo as well as in vitro studies, metabolized glucose is used to synthesize various amino acids, such as glutamate, glutamine, and alanine in addition to fueling energy-producing pathways [51, 52]. Glutamate also facilitates entry of other amino acids to the citric acid cycle with subsequent oxidative phosphorylation for subsequent ATP generation, thereby attenuating signs of energetic distress as reflected by decreased L/Glu ratio in the present study.
Elevated brain glutamate can also result from insulin-mediated reduced glucose availability resulting in reversal of glutamate uptake processes . In vitro insulin impairs glial glutamate uptake by reducing expression of GLAST/EAAT1 transporter  and by possibly impairing ATP-dependent pump processes resulting in transmitter exocytosis . These alterations could explain insulin-mediated increases in brain glutamate at low brain glucose levels below 5 mM compared with episodes in which insulin was not administered. At brain glucose levels above 5 mM, administered insulin did not influence brain glutamate, suggesting that underlying brain glucose level is important to prevent insulin-induced increase in interstitial glutamate.
Contrary to the suggested pathologic influence of insulin on elevated glutamate levels at low brain glucose values, analysis of downstream metabolism revealed significantly decreased L/Glu values (Figure 6). This, in turn, attributes a positive effect to insulin administration even at low brain glucose of 5 mM or less despite significantly increased brain glutamate concentrations. At brain glucose values above 5 mM, L/Glu was not influenced by insulin administration.
Further in-depth analysis in a prospective setting with pre-defined criteria in terms of glucose level and insulin dose are required to interpret the present findings and to define safe brain-glucose dependent insulin dose.
Influence of insulin on cerebral metabolism
As suggested by the present data, glucose uptake could be insulin-dependent because insulin administration was associated with significantly increased interstitial brain glucose. This is in line with the findings of insulin-mediated increases in mean global rate of brain glucose utilization determined in healthy volunteers by 18-fluorodeoxyglucose positron emission tomography . This, in turn, could also explain the signs of improved brain metabolism reflected by significantly decreased brain lactate, significantly reduced L/Glc ratio, and significantly decreased L/Glu ratio. However, the present data does not allow us to determine whether glucose uptake occured via insulin-sensitive (GLUT 4) and partially insulin sensitive (GLUT 1) glucose transporters  or was merely caused by the significantly increased arterial blood glucose levels, or a combination of both.
Limitations of the present study
Changes in brain glucose were compared with alterations in arterial blood glucose. For this, two different techniques with different time intervals and analytical procedures were used. To compare brain and blood glucose values, microdialysis samples were only considered at matching time points of arterial blood glucose analysis. This, in turn, only allows a discontinuous snap-shot view of changes in blood and brain, and precludes the assessment of influences of glucose and insulin in real time. Nevertheless, the chosen approach reveals significant and clinically relevant changes. Further in-depth analysis of continuously measured blood glucose levels via intravenous microdialysis determined in parallel to cerebral microdialysis is required for real-time assessment. Prospective analysis is required to assess the influence of insulin at pre-defined blood and brain glucose levels with the aim of identifying potentially deleterious episodes possibly related to relative and even individual thresholds of hypoglycemia.
The pre-defined arterial blood glucose target ranging from 5 to 8 mM not only determines the frequency of blood glucose values (5 to 8 mM in 86%, < 5 mM in 4%, > 8 mM 9.7%) but also influences interpretation of the obtained data as insulin and nutrition were adapted according to measured arterial blood glucose.
The present results underscore the necessity of integrating microdialysis and calculated indices of downstream metabolism such as L/P, L/Glc, and L/Glu for bedside evaluation of otherwise occult changes in cerebral metabolism. This is important when defining optimal blood and brain glucose levels with the aim of avoiding deleterious consequences of routine therapeutic interventions such as insulin administration. Optimal cerebral glucose supply appears to be present at arterial blood and brain glucose levels between 6 and 8 mM. Absent pathogenity of elevated brain glutamate levels observed at brain glucose levels above 5 mM is unveiled by significantly decreased L/Glu ratio. Despite an increase in brain glutamate at brain glucose below 5 mM insulin appears to be neuroprotective reflected by the significantly decreased L/Glu and signs of improved cerebral metabolism. Prospective investigations integrating pre-defined changes in glucose and insulin administration (considering dose, duration, and metabolic changes) are required to carefully differentiate protective from possibly deleterious consequences of insulin administration.
• Cerebral microdialysis is important for detailed insight into cerebral metabolic alterations, which are missed by simply investigating the impact of insulin on changes in arterial blood glucose levels.
• Assessing changes in cerebral glutamate and calculating metabolic indices, i.e., L/P, L/Glc, and L/Glu, are useful in unmasking signs of downstream metabolism, which remain undiscovered when only measuring brain glucose.
• Blood glucose concentrations below 6 mM and brain glucose levels below 1 mM should be avoided.
• Pathogenity of increased brain glutamate concentrations at brain glucose levels below 3 mM and above 5 mM is unmasked by calculated L/Glu ratio revealing pathologic glutamate values at brain glucose levels below 3 mM.
• Insulin-induced increase in brain glutamate at brain glucose levels below 5 mM is associated with significantly decreased L/Glu, thus reflecting neuroprotective potential of infused insulin even at low brain glucose levels.
abbreviated injury score
analysis of variance
cerebral perfusion pressure
intensive care unit
injury severity score
nicotinamide adenine dinucleotide
partial pressure of arterial carbon dioxide
partial pressure of arterial oxygen
tissue oxyen partial pressure
jugularvenous oxygen saturation
traumatic brain injury.
Zygun DA, Steiner LA, Johnston AJ, Hutchinson PJ, Al-Rawi PG, Chatfield D, Kirkpatrick PJ, Menon DK, Gupta AK: Hyperglycemia and brain tissue pH after traumatic brain injury. Neurosurgery 2004, 55: 877-881.
Diaz-Parejo P, Ståhl N, Xu W, Reinstrup P, Ungerstedt U, Nordström CH: Cerebral energy metabolism during transient hyperglycemia in patients with severe brain trauma. Intensive Care Med 2003, 29: 544-550.
Jeremitsky E, Omert LA, Dunham CM, Wilberger J, Rodriguez A: The impact of hyperglycemia on patients with severe brain injury. J Trauma 2005, 58: 47-50.
Aronson D: Hyperglycemia and the pathobiology of diabetic complications. Adv Cardiol 2008, 45: 1-16.
Sperry JL, Frankel HL, Vanek SL, Nathens AB, Moore EE, Maier RV, Minei JP: Early hyperglycemia predicts multiple organ failure and mortality but not infection. J Trauma 2007, 63: 487-493.
Vespa P, Boonyaputthikul R, McArthur DL, Miller C, Etchepare M, Bergsneider M, Glenn T, Martin N, Hovda D: Intensive insulin therapy reduces microdialysis glucose values without altering glucose utilization or improving the lactate/pyruvate ratio after traumatic brain injury. Crit Care Med 2006, 34: 850-856.
Strong AJ, Hartings JA, Dreier JP: Cortical spreading depression: an adverse but treatable factor in intensive care? Curr Opin Crit Care 2007, 13: 126-133.
Berghe G, Wouters P, Weekers F, Verwaest C, Bruyninckx F, Schetz M, Vlasselaers D, Ferdinande P, Lauwers P, Bouillon R: Intensive insulin therapy in the critically ill patients. N Engl J Med 2001, 345: 1359-1367.
Berghe G, Wilmer A, Hermans G, Meersseman W, Wouters PJ, Milants I, Van Wijngaerden E, Bobbaers H, Bouillon R: Intensive insulin therapy in the medical ICU. N Engl J Med 2006, 354: 449-461.
Meier R, Béchir M, Ludwig S, Sommerfeld J, Keel M, Steiger P, Stocker R, Stover JF: Differential temporal profile of lowered blood glucose levels (3.5 to 6.5 mmol/l versus 5 to 8 mmol/l) in patients with severe traumatic brain injury. Crit Care 2008, 12: R98.
Bilotta F, Caramia R, Cernak I, Paoloni FP, Doronzio A, Cuzzone V, Santoro A, Rosa G: Intensive insulin therapy after severe traumatic brain injury: a randomized clinical trial. Neurocrit Care 2008, 9: 159-166.
Treggiari MM, Karir V, Yanez ND, Weiss NS, Daniel S, Deem SA: Intensive insulin therapy and mortality in critically ill patients. Crit Care 2008, 12: R29.
Alm-Kruse K, Bull EM, Laake JH: Nurse-led implementation of an insulin-infusion protocol in a general intensive care unit: improved glycaemic control with increased costs and risk of hypoglycaemia signals need for algorithm revision. BMC Nurs 2008, 7: 1-10.
Brunkhorst FM, Engel C, Bloos F, Meier-Hellmann A, Ragaller M, Weiler N, Moerer O, Gruendling M, Oppert M, Grond S, Olthoff D, Jaschinski U, John S, Rossaint R, Welte T, Schaefer M, Kern P, Kuhnt E, Kiehntopf M, Hartog C, Natanson C, Loeffler M, Reinhart K, German Competence Network Sepsis (SepNet): Intensive insulin therapy and pentastarch resuscitation in severe sepsis. N Engl J Med 2008, 358: 125-139.
NICE-SUGAR Study Investigators, Finfer S, Chittock DR, Su SY, Blair D, Foster D, Dhingra V, Bellomo R, Cook D, Dodek P, Henderson WR, Hébert PC, Heritier S, Heyland DK, McArthur C, McDonald E, Mitchell I, Myburgh JA, Norton R, Potter J, Robinson BG, Ronco JJ: Intensive versus conventional glucose control in critically ill patients. N Engl J Med 2009, 360: 1283-1297.
Belli A, Sen J, Petzold A, Russo S, Kitchen N, Smith M: Metabolic failure precedes intracranial pressure rises in traumatic brain injury: a microdialysis study. Acta Neurochir (Wien) 2008, 150: 461-469.
Marklund N, Blennow K, Zetterberg H, Ronne-Engström E, Enblad P, Hillered L: Monitoring of brain interstitial total tau and beta amyloid proteins by microdialysis in patients with traumatic brain injury. J Neurosurg 2009,110(6):1227-1237.
Hutchinson PJ, O'Connell MT, Seal A, Nortje J, Timofeev I, Al-Rawi PG, Coles JP, Fryer TD, Menon DK, Pickard JD, Carpenter KL: A combined microdialysis and FDG-PET study of glucose metabolism in head injury. Acta Neurochir (Wien) 2009, 151: 51-61.
Nagel A, Graetz D, Schink T, Frieler K, Sakowitz O, Vajkoczy P, Sarrafzadeh A: Relevance of intracranial hypertension for cerebral metabolism in aneurysmal subarachnoid hemorrhage. J Neurosurg 2009,111(1):94-101.
Samuelsson C, Howells T, Kumlien E, Enblad P, Hillered L, Ronne-Engström E: Relationship between intracranial hemodynamics and microdialysis markers of energy metabolism and glutamate-glutamine turnover in patients with subarachnoid hemorrhage. J Neurosurg 2009,111(5):910-915.
Marcoux J, McArthur DA, Miller C, Glenn TC, Villablanca P, Martin NA, Hovda DA, Alger JR, Vespa PM: Persistent metabolic crisis as measured by elevated cerebral microdialysis lactate-pyruvate ratio predicts chronic frontal lobe brain atrophy after traumatic brain injury. Crit Care Med 2008, 36: 2871-2877.
Oddo M, Schmidt JM, Carrera E, Badjatia N, Connolly ES, Presciutti M, Ostapkovich ND, Levine JM, Le Roux P, Mayer SA: Impact of tight glycemic control on cerebral glucose metabolism after severe brain injury: a microdialysis study. Crit Care Med 2008, 36: 3233-3238.
Sullivan PG, Rabchevsky AG, Waldmeier PC, Springer JE: Mitochondrial permeability transition in CNS trauma: cause or effect of neuronal cell death? J Neurosci Res 2005, 79: 231-239.
Thomale UW, Griebenow M, Mautes A, Beyer TF, Dohse NK, Stroop R, Sakowitz OW, Unterberg AW, Stover JF: Heterogeneous regional and temporal energetic impairment following controlled cortical impact injury in rats. Neurol Res 2007, 29: 594-603.
Kelly DF, Kozlowski DA, Haddad E, Echiverri A, Hovda DA, Lee SM: Ethanol reduces metabolic uncoupling following experimental head injury. J Neurotrauma 2000, 17: 261-272.
Bergsneider M, Hovda DA, Shalmon E, Kelly DF, Vespa PM, Martin NA, Phelps ME, McArthur DL, Caron MJ, Kraus JF, Becker DP: Cerebral hyperglycolysis following severe traumatic brain injury in humans: a positron emission tomography study. J Neurosurg 1997, 86: 241-251.
Goodman JC, Valadka AB, Gopinath SP, Uzura M, Robertson CS: Extracellular lactate and glucose alterations in the brain after head injury measured by microdialysis. Crit Care Med 1999, 27: 1965-1973.
Pellerin L: Brain energetics (thought needs food). Curr Opin Clin Nutr Metab Care 2008, 11: 701-705.
Occhipinti R, Somersalo E, Calvetti D: Astrocytes as the glucose shunt for glutamatergic neurons at high activity: an in silico study. J Neurophysiol 2009, 101: 2528-2538.
Kawamata T, Katayama Y, Hovda DA, Yoshino A, Becker DP: Lactate accumulation following concussive brain injury: the role of ionic fluxes induced by excitatory amino acids. Brain Res 1995, 674: 196-204.
Hutchinson PJ, O'Connell MT, Nortje J, Smith P, Al-Rawi PG, Gupta AK, Menon DK, Pickard JD: Cerebral microdialysis methodology--evaluation of 20 kDa and 100 kDa catheters. Physiol Meas 2005, 26: 423-428.
Hutchinson PJ, O'Connell MT, Al-Rawi PG, Maskell LB, Kett-White R, Gupta AK, Richards HK, Hutchinson DB, Kirkpatrick PJ, Pickard JD: Clinical cerebral microdialysis: methodological study. J Neurosurg 2000, 93: 37-43.
Holbein M, Béchir M, Ludwig S, Sommerfeld J, Cottini SR, Keel M, Stocker R, Stover JF: Differential influence of arterial blood glucose on cerebral metabolism following severe traumatic brain injury. Crit Care 2009, 13: R13.
Kiening KL, Unterberg AW, Bardt TF, Schneider GH, Lanksch WR: Monitoring of cerebral oxygenation in patients with severe head injuries: brain tissue PO2 versus jugular vein oxygen saturation. J Neurosurg 1996, 85: 751-757.
Hlatky R, Valadka AB, Goodman JC, Contant CF, Robertson CS: Patterns of energy substrates during ischemia measured in the brain by microdialysis. J Neurotrauma 2004, 21: 894-906.
Zielke HR, Zielke CL, Baab PJ: Direct measurement of oxidative metabolism in the living brain by microdialysis: a review. J Neurochem 2009,109(Suppl 1):24-29.
Simpson IA, Carruthers A, Vannucci SJ: Supply and demand in cerebral energy metabolism: the role of nutrient transporters. J Cereb Blood Flow Metab 2007, 27: 1766-1791.
Hamlin GP, Cernak I, Wixey JA, Vink R: Increased expression of neuronal glucose transporter 3 but not glial glucose transporter 1 following severe diffuse traumatic brain injury in rats. J Neurotrauma 2001, 18: 1011-1018.
Hattori N, Huang SC, Wu HM, Liao W, Glenn TC, Vespa PM, Phelps ME, Hovda DA, Bergsneider M: Acute changes in regional cerebral (18)F-FDG kinetics in patients with traumatic brain injury. J Nucl Med 2004, 45: 775-783.
Wu HM, Huang SC, Hattori N, Glenn TC, Vespa PM, Yu CL, Hovda DA, Phelps ME, Bergsneider M: Selective metabolic reduction in gray matter acutely following human traumatic brain injury. J Neurotrauma 2004, 21: 149-161.
Xing G, Ren M, Watson WA, O'Neil JT, Verma A: Traumatic brain injury-induced expression and phosphorylation of pyruvate dehydrogenase: a mechanism of dysregulated glucose metabolism. Neurosci Lett 2009, 454: 38-42.
Dusick JR, Glenn TC, Lee WN, Vespa PM, Kelly DF, Lee SM, Hovda DA, Martin NA: Increased pentose phosphate pathway flux after clinical traumatic brain injury: a [1,2-13C2] glucose labeling study in humans. J Cereb Blood Flow Metab 2007, 27: 1593-1602.
Li PA, Liu GJ, He QP, Floyd RA, Siesjö BK: Production of hydroxyl free radical by brain tissues in hyperglycemic rats subjected to transient forebrain ischemia. Free Radic Biol Med 1999, 27: 1033-1040.
Clausen T, Khaldi A, Zauner A, Reinert M, Doppenberg E, Menzel M, Soukup J, Alves OL, Bullock MR: Cerebral acid-base homeostasis after severe traumatic brain injury. J Neurosurg 2005, 103: 597-607.
Ringel F, Baethmann A, Plesnila N: Lactacidosis-induced glial cell swelling depends on extracellular Ca2+. Neurosci Lett 2006, 398: 306-309.
Zauner A, Doppenberg EM, Woodward JJ, Choi SC, Young HF, Bullock R: Continuous monitoring of cerebral substrate delivery and clearance: initial experience in 24 patients with severe acute brain injuries. Neurosurgery 1997, 41: 1082-1091.
Danbolt NC: Glutamate uptake. Prog Neurobiol 2001, 65: 1-105.
Camacho A, Massieu L: Role of glutamate transporters in the clearance and release of glutamate during ischemia and its relation to neuronal death. Arch Med Res 2006, 37: 11-18.
Bak LK, Schousboe A, Sonnewald U, Waagepetersen HS: Glucose is necessary to maintain neurotransmitter homeostasis during synaptic activity in cultured glutamatergic neurons. J Cereb Blood Flow Metab 2006, 26: 1285-1297.
Alessandri B, Doppenberg E, Zauner A, Woodward J, Choi S, Bullock R: Evidence for time-dependent glutamate-mediated glycolysis in head-injured patients: a microdialysis study. Acta Neurochir Suppl 1999, 75: 25-28.
Scafidi S, O'Brien J, Hopkins I, Robertson C, Fiskum G, McKenna M: Delayed cerebral oxidative glucose metabolism after traumatic brain injury in young rats. J Neurochem 2009,109(Suppl 1):189-197.
Bak LK, Waagepetersen HS, Melø TM, Schousboe A, Sonnewald U: Complex glutamate labeling from [U-13C]glucose or [U-13C]lactate in co-cultures of cerebellar neurons and astrocytes. Neurochem Res 2007, 32: 671-680.
Guyot LL, Diaz FG, O'Regan MH, Ren J, Phillis JW: The effect of intravenous insulin on accumulation of excitotoxic and other amino acids in the ischemic rat cerebral cortex. Neurosci Lett 2000, 288: 61-65.
Poblete-Naredo I, Angulo C, Hernández-Kelly L, López-Bayghen E, Aguilera J, Ortega A: Insulin-dependent regulation of GLAST/EAAT1 in Bergmann glial cells. Neurosci Lett 2009, 451: 134-138.
Duarte AI, Santos MS, Seiça R, de Oliveira CR: Insulin affects synaptosomal GABA and glutamate transport under oxidative stress conditions. Brain Res 2003, 977: 23-30.
Bingham EM, Hopkins D, Smith D, Pernet A, Hallett W, Reed L, Marsden PK, Amiel SA: The role of insulin in human brain glucose metabolism: an 18fluoro-deoxyglucose positron emission tomography study. Diabetes 2002, 51: 3384-3390.
The help of the nursing staff in collecting and analyzing subcutaneous and cerebral microdialysis samples is gratefully acknowledged. The study was supported by grants from the Swiss National Science Foundation (SNF) and the SUVA Fonds to JFS and RS.
The authors declare that they have no competing interests.
RM evaluated the data, and drafted parts of the manuscript. MB assisted in analysing and interpreting the data and drafted parts of the manuscript. JS and SL were responsible for data collection and maintaining the data bank. GB helped discussing the results. CH and RS helped analysing and interpreting the data. JFS conceived the study design, collected parts of the data, performed graphical and statistical analysis, and drafted parts of the manuscript. All authors have read and approved the final manuscript.
Roman Meierhans, Markus Béchir contributed equally to this work.
