- Open Access
Benefits of intensive insulin therapy on neuromuscular complications in routine daily critical care practice: a retrospective study
Critical Care volume 13, Article number: R5 (2009)
Intensive insulin therapy (IIT) reduced the incidence of critical illness polyneuropathy and/or myopathy (CIP/CIM) and the need for prolonged mechanical ventilation (MV ≥ 14 days) in two randomised controlled trials (RCTs) on the effect of IIT in a surgical intensive care unit (SICU) and medical intensive care unit (MICU). In the present study, we investigated whether these effects are also present in daily clinical practice when IIT is implemented outside of a study protocol.
We retrospectively studied electrophysiological data from patients in the SICU and MICU, performed because of clinical weakness and/or weaning failure, before and after routine implementation of IIT. CIP/CIM was diagnosed by abundant spontaneous electrical activity on electromyography. Baseline and outcome variables were compared using Student's t-test, Chi-squared or Mann-Whitney U-test when appropriate. The effect of implementing IIT on CIP/CIM and prolonged MV was assessed using univariate analysis and multivariate logistic regression analysis (MVLR), correcting for baseline and ICU risk factors.
IIT significantly lowered mean (± standard deviation) blood glucose levels (from 144 ± 20 to 107 ± 10 mg/dl, p < 0.0001) and significantly reduced the diagnosis of CIP/CIM in the screened long-stay patients (125/168 (74.4%) to 220/452 (48.7%), p < 0.0001). MVLR identified implementing IIT as an independent protective factor (p < 0.0001, odds ratio (OR): 0.25 (95% confidence interval (CI): 0.14 to 0.43)). MVLR confirmed the independent protective effect of IIT on prolonged MV (p = 0.002, OR:0.40 (95% CI: 0.22–0.72)). This effect was statistically only partially explained by the reduction in CIP/CIM.
Implementing IIT in routine daily practice in critically ill patients evoked a similar beneficial effect on neuromuscular function as that observed in two RCTs. IIT significantly improved glycaemic control and significantly and independently reduced the electrophysiological incidence of CIP/CIM. This reduction partially explained the beneficial effect of IIT on prolonged MV.
Critical illness polyneuropathy (CIP) is an acute and primary axonal motor and sensory neuropathy that typically occurs in critically ill patients as a complication of their illness and possibly its therapy . The signs and symptoms are not always easily distinguished from critical illness myopathy (CIM), which is a primary muscle disease that may occur in the same setting . Both CIP and CIM also frequently occur simultaneously [3–5], and therefore, from a clinical point of view, both are often grouped together as critical illness polyneuropathy and/or myopathy (CIP/CIM). They result in limb and respiratory muscle weakness, causing difficulty in weaning from the ventilator and impaired rehabilitation [6–9]. CIP/CIM is therefore associated with prolonged intensive care unit (ICU) and hospital stay and increased mortality rates [6, 8, 10]. Differentiation between both conditions is possible in some patients using nerve conduction studies (NCS) and needle electromyography (EMG). However, the differential diagnosis between CIP and CIM on routine electrophysiological examination is frequently hampered by tissue oedema, interfering with correct sensory nerve action potential (SNAP) assessment, and the inability to voluntarily contract muscles, interfering with correct motor unit potential analysis.
The pathophysiology of CIP/CIM is very complex and many factors and mechanisms, such as electrical, microvascular, metabolic alterations, bioenergetic failure and altered Ca2+ homeostasis, have been suggested to explain the observed changes in the neural and muscular system . Also, different risk factors for CIP/CIM development have been identified in several prospective studies. These include systemic inflammatory response syndrome (SIRS) and multiple organ failure (MOF), in which severity of illness [4, 12] and duration of organ dysfunction  seem to be crucial. Other risk factors identified include hyperglycaemia [14, 15], vasopressor and catecholamine support , neuromuscular blocking agents , corticosteroids , female sex , hypoalbuminaemia , parenteral nutrition , hyperosmolarity , renal replacement therapy , duration of ICU stay [14, 15] and central neurological failure . Not all risk factors have been consistently identified and many remain controversial.
Until recently, prevention of CIP/CIM was solely based on minimising the effects of these identified risk factors. However, in two randomised controlled trials (RCTs) in a surgical ICU (SICU)  and medical ICU (MICU) , our group has demonstrated that intensive insulin therapy (IIT) aimed at blood glucose levels between 80 and 110 mg/dl, significantly reduced the electrophysiological incidence of CIP/CIM and also the need for prolonged mechanical ventilation (MV) in the subpopulation of patients with an ICU stay of at least one week. Indeed, hyperglycaemia had been previously identified to be associated with CIP/CIM development. Potential mechanisms are impairment of the microcirculation in the nerve and mitochondrial dysfunction because of an increased generation/deficient scavenging of reactive oxygen species. In addition, insulin itself may have some benefits by affecting the balance between anabolic and catabolic hormones.
As the beneficial effect of IIT has been observed in the setting of RCTs, we further studied whether the implementation of IIT in routine daily ICU practice and outside a study protocol would result in similar beneficial effects on neuromuscular electrophysiology.
Materials and methods
We retrospectively evaluated all electronically available electrophysiological data derived from NCS/EMG in patients in the SICU and MICU before and after implementation of IIT in routine clinical practice. For this purpose, only NCS/EMG performed because the treating physician noticed a clinical problem of weakness and/or weaning failure were selected and therefore the study sample comprised only a subset of the long-stay ICU population. We diagnosed CIP/CIM solely based on the presence of abundant spontaneous electrical activity in the form of positive sharp waves and/or fibrillation potentials. Excluded from the study were patients with an NCS/EMGs suggesting diagnoses other than CIP/CIM, patients under the age of 18 and those with technically inconclusive examinations, as well as all data of patients included in the previous RCTs.
To explore the effects of IIT on CIP versus CIM, we compared patients in whom reliable contraction patterns could be obtained, allowing identification of primarily myopathic pathology. However, this can not be achieved in all patients. Because reduction in amplitude of the SNAPs are suggestive of CIP (and not encountered in pure CIM without accompanying CIP) we also studied the SNAPs before and after implementation of IIT. Finally, the need for prolonged MV, defined as MV for at least 14 days, as in the previous trials [9, 15], was recorded. This study was approved by the local ethics committee. As it concerned retrospective analysis of data obtained during usual clinical practice, local regulations do not require informed consent to be obtained.
Data were analysed using Statview 5.0 (SAS Institute, Inc., Cary, NC). Baseline and outcome variables are presented as mean ± standard deviation if normally distributed, and median and interquartile range if skewed. Data were compared using Student's t-test, Chi-squared test or Mann-Whitney U test when appropriate. The effect of implementing IIT in daily practice on CIP/CIM and prolonged mechanical ventilation was assessed using univariate analysis. Next, also multivariate logistic regression analysis (MVLR) was used to evaluate the effect of IIT on CIP/CIM and prolonged MV. We included in the model, all baseline factors and risk factors that occurred during ICU stay that either showed an imbalance between the groups before and after implementation of IIT (p ≤ 0.1) or showed at least a trend in the univariate analysis (p ≤ 0.1) on CIP/CIM, respectively prolonged mechanical ventilation.

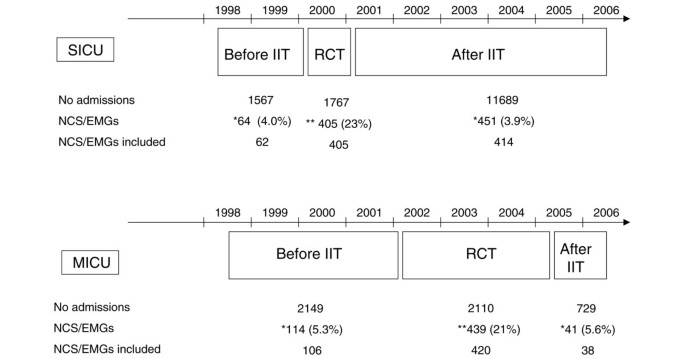

After excluding other diagnoses, NCS/EMGs of a total of 620 patients performed because of weakness and/or weaning failure were included in the analysis (Figures 1 and 2). This included 168 patients in the ICU before and 452 after the implementation of IIT. The proportion of patients receiving NCS/EMGs before and after the RCTs and the implementation of IIT in daily practice was not different (MICU before: 5.3%, after: 5.6%, SICU before: 4.0% after: 3.9%). Baseline characteristics of these patients are shown in Table 1.
The studied sample comprised of a subset of long-stay patients as the median duration to the time of electrophysiological diagnosis was 18 (12 to 28) days before and 21 (13 to 32) days after implementation of IIT. As expected, both groups differed in multiple baseline characteristics such as proportion of medical patients, diagnostic group on admission, acute physiology and health evaluation (APACHE) II score and on admission blood glucose. Also exposure to known risk factors for CIP/CIM during ICU stay (Table 2) was different before and after IIT, such as treatment with noradrenaline, aminoglycosides, glucocorticoids and neuromuscular blocking agents. This necessitated MVLR analysis to correct for these imbalances, which were due to greater percentage of MICU patients in the 'before' than in the 'after' sample.
Glycaemia control and general outcome
We noticed a significant reduction of mean morning blood glucose from 144 ± 20 mg/dl before to 107 ± 10 mg/dl after IIT had become routine daily practice (p < 0.0001; Table 3). This significant difference was present in the medical as well as in the surgical ICU. There was no significant difference in duration of ICU stay, hospital stay, mortality rates, duration of mechanical ventilation and need for prolonged mechanical ventilation in the studied sample.
We found the incidence of CIP/CIM as defined above in the patients who were electrophysiologically evaluated, to be significantly reduced from 125/168 (74.4%) to 220/452 (48.7%) after IIT (p < 0.0001). This reduction was present among MICU patients (76/106 (71.7%) to 11/38 (28.9%), p < 0.0001) as well as SICU patients (49/62 (79.0%) to 209/414 (50.5%), p < 0.0001). After correction for baseline risk factors and risk factors occurring during ICU stay (Table 4), MVLR analysis showed that the implementation of IIT was indeed an independent protective factor for the occurrence of CIP/CIM (odds ratio (OR) 0.25 (95% confidence interval (CI): 0.14 to 0.43), p < 0.0001; Table 5). Furthermore, in the upper limbs, absolute and relative values of SNAPs were significantly improved after IIT (p = 0.002). In the lower limbs, the average SNAP was about 1 μV higher in the IIT group, but this difference was not significance.
The proportion of patients in whom voluntary contraction patterns could be obtained was not different between both patient groups (90/168 (53.6%) before and 247/452 (54.6%) after IIT, p = 0.8). However, the presence of a myopathic component in the tracings obtained, was significantly lower after IIT (27/90 (30%) versus 45/247 (18.2%), p = 0.02).
Prolonged mechanical ventilation
In the univariate analysis, no significant reduction in the need for prolonged MV was noticed in this patient sample after instituting IIT (before: 84/142 (59.2%), after: 259/399 (64.9%), p = 0.2). MVLR, however, showed that after correction for baseline risk factors and risk factors occurring during ICU stay (Table 4), the implementation of IIT was indeed an independent protective factor for prolonged MV (OR 0.40 (95% CI: 0.22 to 0.72), p = 0.002; Table 5). Another independent protector was MICU, whereas independent risk factors were number of days treatment with noadrenaline, treatment with aminoglycosides, number of days treatment with neuromuscular blocking agents, number of days treatment with dialysis and bacteraemia. To examine the impact of the reduced incidence of CIP/CIM after IIT on the need for prolonged MV, this variable was entered into the multivariate model. This analysis showed that, first of all, CIP/CIM was an independent risk factor for prolonged MV (OR:1.61(95% CI: 1.05 to 2.45), p = 0.03), and that the beneficial effect of IIT on prolonged MV remained present after this correction (OR: 0.49 (95% CI: 0.26 to 0.92), p = 0.03).
This is a retrospective analysis, which was conducted to examine whether the beneficial effects of IIT on neuromuscular function of critically ill patients, as was observed in two RCTs in SICU and MICU patients, could be confirmed in routine daily practice. We therefore compared electrophysiological data and data on prolonged MV from patients screened for clinical reasons before the RCTs and after, at which moment IIT was implemented in routine daily practice. This population comprised a subset of long-stay ICU patients.
As the surgical trial was performed earlier than the medical trial, most data before implementation are derived from the MICU and most data after from the SICU. The very different patient population admitted to the MICU and SICU created a large imbalance between baseline characteristics and also known risk factors for CIP/CIM encountered during ICU stay between both groups. As shown in Tables 1 and 2, most of the imbalances are completely attributable to the different percentages of medical and surgical patients before and after IIT implementation. Strikingly, however, on admission blood glucose was significantly lower after implementation of IIT in the MICU as well as in the SICU, suggesting that in general and also outside the ICU more attention was given to glucose control. To correct for the differences in patient populations and possible changes over time in therapeutic regimens, further analyses on risk factors were corrected for all baseline characteristics and risk factors occurring during ICU stay showing at least a trend towards significance in the univariate analysis.
First of all we found that IIT in routine daily care is feasible and reduced mean morning blood glucose levels to values within the target range. As in the RCTs, we found that the incidence of CIP/CIM was markedly and to the same extent reduced after IIT became part of routine care in our critically ill patients. MVLR showed that this was indeed an independent protective effect. In this study, we diagnosed CIP/CIM solely based on the presence of abundant spontaneous electrical activity. We chose to do so first of all because compound muscle action potentials (CMAPs) and SNAPs may be aspecific in the ICU setting due to technical problems, oedema, difficult access to nerves due to wound dressings etc., whereas the presence of abnormal spontaneous electrical activity indicates without any question that a neuromuscular problem is present. In contrast to other myopathies, abnormal spontaneous electrical activity is often present in CIM. Also, by using the same definition as in the RCTs, results could be compared.
As differential diagnosis between CIP and CIM via routine NCS/EMG is often difficult because of the lack of cooperation of critically ill patients, we used the SNAPs as a surrogate marker for CIP. Although other conditions such as oedema will also influence the SNAPs, we found that these values in the upper limbs were significantly increased after implementing IIT. The absence of effect in the lower limbs is noteworthy. This may be caused by the fact that screening in the lower limbs is always performed on the sural nerve, which is vulnerable to tissue oedema. Concerning effects on myopathy, we chose to take into account only results of patients in whom voluntary contraction was possible and therefore motor unit morphology and recruitment could be assessed, because these results can reliably confirm muscle versus nerve involvement. We noticed that myopathic patterns were also significantly reduced after IIT. Mechanistically, several effects of IIT may play a role, such as improvement of the microcirculation or mitochondrial function of neurons and/or muscle cells, and an effect on the balance between anabolism and catabolism.
We found no difference in the need for prolonged MV in the overall population before and after IIT. However, after correction for baseline differences and exposure to known risk factors, implementing IIT appeared to be independently associated with reduced risk of prolonged MV. As in the RCTs, the beneficial effect of IIT on prolonged MV could not be entirely explained by the reduction in CIP/CIM. The fact that the electrophysiological diagnosis of CIP/CIM itself was an independent determinant of prolonged MV suggests that this diagnosis is indeed a clinically relevant one.
This study has some important limitations, first of all because of the retrospective nature. Because of our intention to evaluate effects of a change in glycaemic control in daily clinical practice outside the controlled setting of a study protocol, and the recent results of our two RCTs, the nature of this study inevitably was retrospective and observational. Due to the different timing of the RCTs in our SICU and MICU there was a large imbalance in characteristics between the groups before and after implementation of IIT, and some daily care practices may have changed during the study period. Although we corrected for these imbalances, some caution is needed concerning the comparability of the groups before and after implementation of IIT and the validity of MVLR to correct for this. Another approach could have been to use propensity scores. However, it was recently stated that in the great majority of published studies that have used both approaches, estimated effects from propensity score and regression methods have been similar and simulation studies further suggest comparable performance of the two approaches in many settings . For this reason, and because of the practical impossibility of calculating propensity scores for patients who did not receive electrophysiological examination, this statistical method was not used in this study.
The diagnosis of CIP/CIM also had some limitations. CIP/CIM was solely diagnosed on the presence of abundant spontaneous electrical activity. Therefore, we may have missed some diagnoses because muscle membrane inexcitability was not detected. By omitting those patients with only reduced CMAPs or SNAPs and no spontaneous electrical activity, we may also have missed some early diagnoses as the reduction in amplitude of the nerve and muscle action potentials (compound sensory or motor) or both, with preserved normal conduction velocity is the first electrophysiological sign that precedes other electrophysiological signs such as fibrillation potentials and positive sharp waves [17–20]. However, based on the time to diagnosis, which was quite long (median of 22 days before and 18 days after implementation), the number of patients for whom this was the case is expected to be small. Also, although the indication for electrophysiological testing was clinical weakness and/or weaning failure, no systematic evaluation of clinical weakness was reported and more sophisticated electrophysiological testing using direct muscle stimulation could have provided more details on the effects on CIP and CIM individually.
We conclude that implementing IIT into standard daily care of critically ill patients exerted a similar beneficial effect on the electrophysiological diagnosis of CIP/CIM and the need for prolonged MV, as was shown in two previous RCTs. Future research should concentrate on underlying pathophysiological mechanisms.
Implementing IIT in daily care of critically ill medical and surgical patients is feasible.
IIT reduced electrophysiological incidence of CIP/CIM in daily clinical practice in critically ill medical and surgical patients, outside the controlled setting of a study protocol.
acute physiology and health evaluation
critical illness polyneuropathy and/or myopathy
compound muscle action potentials
intensive insulin therapy
medical intensive care unit
multiple organ failure
multivariate logistic regression analysis
nerve conduction studies
randomised controlled trial
surgical intensive care unit
systemic inflammatory response syndrome
sensory nerve action potential.
Bolton CF, Laverty DA, Brown JD, Witt NJ, Hahn AF, Sibbald WJ: Critically ill polyneuropathy: electrophysiological studies and differentiation from Guillain-Barre syndrome. J Neurol Neurosurg Psychiatry 1986, 49: 563-573. 10.1136/jnnp.49.5.563
Lacomis D, Zochodne DW, Bird SJ: Critical illness myopathy. Muscle Nerve 2000, 23: 1785-1788. 10.1002/1097-4598(200012)23:12<1785::AID-MUS1>3.0.CO;2-J
Latronico N, Fenzi F, Recupero D, Guarneri B, Tomelleri G, Tonin P, De Maria G, Antonini L, Rizzuto N, Candiani A: Critical illness myopathy and neuropathy. Lancet 1996, 347: 1579-1582. 10.1016/S0140-6736(96)91074-0
Bednarik J, Vondracek P, Dusek L, Moravcova E, Cundrle I: Risk factors for critical illness polyneuromyopathy. J Neurol 2005, 252: 343-351. 10.1007/s00415-005-0654-x
de Letter MA, van Doorn PA, Savelkoul HF, Laman JD, Schmitz PI, Op de Coul AA, Visser LH, Kros JM, Teepen JL, Meche FG: Critical illness polyneuropathy and myopathy (CIPNM): evidence for local immune activation by cytokine-expression in the muscle tissue. J Neuroimmunol 2000, 106: 206-213. 10.1016/S0165-5728(99)00252-0
Leijten FS, Harinck-de Weerd JE, Poortvliet DC, de Weerd AW: The role of polyneuropathy in motor convalescence after prolonged mechanical ventilation. JAMA 1995, 274: 1221-1225. 10.1001/jama.274.15.1221
De Jonghe B, Bastuji-Garin S, Sharshar T, Outin H, Brochard L: Does ICU-acquired paresis lengthen weaning from mechanical ventilation? Intensive Care Med 2004, 30: 1117-1121. 10.1007/s00134-004-2174-z
Garnacho-Montero J, Amaya-Villar R, Garcia-Garmendia JL, Madrazo-Osuna J, Ortiz-Leyba C: Effect of critical illness polyneuropathy on the withdrawal from mechanical ventilation and the length of stay in septic patients. Crit Care Med 2005, 33: 349-354. 10.1097/01.CCM.0000153521.41848.7E
Hermans G, Wilmer A, Meersseman W, Milants I, Wouters PJ, Bobbaers H, Bruyninckx F, Berghe G: Impact of Intensive Insulin Therapy on Neuromuscular Complications and Ventilator-dependency in MICU. Am J Respir Crit Care Med 2007, 175: 480-489. 10.1164/rccm.200605-665OC
Garnacho-Montero J, Madrazo-Osuna J, Garcia-Garmendia JL, Ortiz-Leyba C, Jimenez-Jimenez FJ, Barrero-Almodovar A, Garnacho-Montero MC, Moyano-Del-Estad MR: Critical illness polyneuropathy: risk factors and clinical consequences. A cohort study in septic patients. Intensive Care Med 2001, 27: 1288-1296. 10.1007/s001340101009
Hermans G, De Jonghe B, Bruyninckx F, Van den Berghe G: Interventions for preventing critical illness polyneuropathy and critical illness myopathy. Cochrane Database Syst Rev 2009, CD006832.
de Letter MA, Schmitz PI, Visser LH, Verheul FA, Schellens RL, Op de Coul DA, Meche FG: Risk factors for the development of polyneuropathy and myopathy in critically ill patients. Crit Care Med 2001, 29: 2281-2286. 10.1097/00003246-200112000-00008
De Jonghe B, Sharshar T, Lefaucheur JP, Authier FJ, Durand-Zaleski I, Boussarsar M, Cerf C, Renaud E, Mesrati F, Carlet J, Raphael JC, Outin H, Bastuji-Garin S: Paresis acquired in the intensive care unit: a prospective multicenter study. JAMA 2002, 288: 2859-2867. 10.1001/jama.288.22.2859
Witt NJ, Zochodne DW, Bolton CF, Grand'Maison F, Wells G, Young GB, Sibbald WJ: Peripheral nerve function in sepsis and multiple organ failure. Chest 1991, 99: 176-184. 10.1378/chest.99.1.176
Berghe G, Schoonheydt K, Becx P, Bruyninckx F, Wouters PJ: Insulin therapy protects the central and peripheral nervous system of intensive care patients. Neurology 2005, 64: 1348-1353.
Glynn RJ, Schneeweiss S, Sturmer T: Indications for propensity scores and review of their use in pharmacoepidemiology. Basic Clin Pharmacol Toxicol 2006, 98: 253-259. 10.1111/j.1742-7843.2006.pto_293.x
Bolton CF, Young GB: Critical Illness Polyneuropathy. Curr Treat Options Neurol 2000, 2: 489-498. 10.1007/s11940-000-0027-9
Bednarik J, Lukas Z, Vondracek P: Critical illness polyneuromyopathy: the electrophysiological components of a complex entity. Intensive Care Med 2003, 29: 1505-1514. 10.1007/s00134-003-1858-0
Bolton CF: Neuromuscular manifestations of critical illness. Muscle Nerve 2005, 32: 140-163. 10.1002/mus.20304
Tennila A, Salmi T, Pettila V, Roine RO, Varpula T, Takkunen O: Early signs of critical illness polyneuropathy in ICU patients with systemic inflammatory response syndrome or sepsis. Intensive Care Med 2000, 26: 1360-1363. 10.1007/s001340000586
The authors declare that they have no competing interests.
GH analysed the data, had a major contribution to the interpretation hereof and drafted the manuscript. MS designed the study concept, collected data and had a major contribution to the interpretation hereof. PD designed the study concept, collected data and had a major contribution to the interpretation of data. NB collected data. BB collected data. WDV collected data. WR had an essential contribution to the interpretation of the data. GvdB performed the statistics, had an essential contribution to the interpretation of data and the content of the manuscript.
Greet Hermans, Maarten Schrooten contributed equally to this work.
