A high angiopoietin-2/angiopoietin-1 ratio is associated with a high risk of septic shock in patients with febrile neutropenia

Critical Care volume 17, Article number: R169 (2013) Cite this article

Abstract

Introduction

Endothelial barrier breakdown is a hallmark of septic shock, and proteins that physiologically regulate endothelial barrier integrity are emerging as promising biomarkers of septic shock development. Patients with cancer and febrile neutropenia (FN) present a higher risk of sepsis complications, such as septic shock. Nonetheless, these patients are normally excluded or under-represented in sepsis biomarker studies. The aim of our study was to validate the measurement of a panel of microvascular permeability modulators as biomarkers of septic shock development in cancer patients with chemotherapy-associated FN.

Methods

This was a prospective study of diagnostic accuracy, performed in two distinct in-patient units of a university hospital. Levels of vascular endothelial growth factor A (VEGF-A), soluble fms-like tyrosine kinase-1 (sFlt-1) and angiopoietin (Ang) 1 and 2 were measured after the onset of neutropenic fever, in conditions designed to mimic the real-world use of a sepsis biomarker, based on our local practice. Patients were categorized based on the development of septic shock by 28 days as an outcome.

Results

A total of 99 consecutive patients were evaluated in the study, of which 20 developed septic shock and 79 were classified as non-complicated FN. VEGF-A and sFlt-1 levels were similar between both outcome groups. In contrast, Ang-2 concentrations were increased in patients with septic shock, whereas an inverse finding was observed for Ang-1, resulting in a higher Ang-2/Ang-1 ratio in patients with septic shock (5.29, range 0.58 to 57.14) compared to non-complicated FN (1.99, range 0.06 to 64.62; P = 0.01). After multivariate analysis, the Ang-2/Ang-1 ratio remained an independent factor for septic shock development and 28-day mortality.

Conclusions

A high Ang-2/Ang-1 ratio can predict the development of septic shock in cancer patients with febrile neutropenia.

Introduction

Septic shock is one of the most severe complications of sepsis, frequently preceding multi-organ dysfunction syndrome and death. Cancer patients are at an increased risk of sepsis complications for several reasons, including the need for frequent invasive procedures, the effects of cancer on nutritional status and immunity, and the immunosuppressive effects of chemotherapy [1]. As life expectancy increases, so does the prevalence of age-related morbidities, such as cancer, considered one of the most important contributing factors for the increasing incidence of sepsis [2]. In this context, the discovery and validation of new biomarkers for septic shock development is regarded as a major research objective in the field [3, 4]. However, the implementation of a biomarker usually involves a stepwise process, in which results from initial studies need to be confirmed in larger studies in independent populations, ideally performed in experimental environments that more closely resemble the "real-world" use of the biomarker [3, 5].

In the last decade, the cellular and molecular mechanisms that regulate endothelial barrier integrity have been described [6]. In the embryo, VEGF-A, sFlt-1, angiopoietin (Ang)-1 and Ang-2 play critical roles in the physiological process of angiogenesis, during which the endothelial barrier is constantly assembled and disassembled, to allow the incorporation of new vessel sprouts. While VEGF-A and Ang-2 are involved in the destabilization of endothelial cell junctions, sFlt-1 and Ang-1 present distinct functions, stabilizing the endothelial barrier. After the initial demonstration that the mechanisms that regulate endothelial barrier formation in the embryo are also involved in the pathological disruption of the endothelial barrier in adults during sepsis [7], several studies explored the role of these proteins as biomarkers of septic shock development. Encouraging results were reported by several groups, and Ang-1 and Ang-2 emerged among the most promising endothelial-associated sepsis biomarkers [8–19].

Patients with cancer and febrile neutropenia (FN) are one of the populations with the highest risks of sepsis-related mortality [20, 21]. In these patients, septic shock can evolve as a fulminant complication, despite aggressive treatment with broad-spectrum antibiotics and best supportive care. Nevertheless, these patients are usually excluded or largely underrepresented in studies about sepsis biomarkers and management. In a small exploratory study, we previously demonstrated that levels of modulators of endothelial permeability, such as VEGF-A and Ang-2 were altered in patients with FN that developed septic shock [22, 23]. In the present work, we sought to validate the use of VEGF-A, sFlt-1, Ang-1 and Ang-2 levels as biomarkers of septic shock development in a larger and independent cohort of patients with cancer-associated FN, in a more clinically relevant scenario regarding the use of a sepsis biomarker.

Material and methods

Patients

The study was conducted at the Hematopoietic Stem Cell Transplantation and at the Hematology in-patient units of University of Campinas between March 2011 and March 2012. The study was performed in accordance with the Declaration of Helsinki, and approved by the Committee of Ethics in Research of the Faculty of Medical Sciences, University of Campinas, Campinas, SP, Brazil. Written informed consent was obtained from all patients prior to any study procedure. Inclusion criteria were: (1) fever (T ≥38°C) over a one-hour observation period, (2) chemotherapy-induced severe neutropenia, characterized by an absolute neutrophil count <0.5 × 109/L at the time of fever onset, and (3) persistence of severe neutropenia until the time of blood sample collection. Demographic and clinical data were obtained from the medical records.

Sepsis definitions and clinical scores

In accordance with FN management protocols, an infectious etiology was assumed for all patients with post-chemotherapy neutropenia with new onset of fever [24]. Blood and urine cultures were immediately obtained and broad spectrum antibiotics initiated, along with the infusion of 1.5 L of intravenous saline solution over each 24-hour period. All patients underwent chest radiography. Other imaging studies were performed when judged necessary by the attending physician. Sepsis was defined by the presence of two or more of the following: (1) temperature >38°C, (2) heart rate >90 beats/minute, (3) respiratory rate >20 breaths/minute or PaCO2 <32 mmHg, and a microbiologically proven or clinically evident source of infection. A diagnosis of septic shock was established when sepsis-induced hypotension (systolic arterial pressure <90 mmHg or dropping >40 mmHg from baseline) persisted despite adequate volume resuscitation. Volume resuscitation consisted of 30 ml/Kg of crystalloids (usually 2 L) in a bolus fashion over 60 minutes, targeted to a mean arterial pressure above 65 mmHg. Failure to achieve this target within one hour established the diagnosis of septic shock [25]. Severity of illness was assessed by calculating the Sequential Organ Failure Assessment (SOFA) score [26], and FN risk stratification was performed by calculation of the Multinational Association for Supportive Care In Cancer (MASCC) score [27]. Both scores were calculated at the time of sample collection.

Study design

This was a prospective non-interventional study performed according to the STARD (Standard for the Reporting of Diagnostic Accuracy Study) guidelines [28]. All in-patients from the hematology or from the bone marrow transplantation units with new onset FN that met the inclusion criteria were invited to participate. The study was deliberately designed to mimic the conditions in which a sepsis biomarker would be used. Patients were enrolled in the study within 24 hours from admission for FN treatment, and samples were drawn with the next routine sample collection requested for them (usually in the morning after enrollment). Furthermore, samples were collected and initially processed by the hospital laboratory staff using the same operational procedures used for other patients. Finally, neither the prior use of antibiotics, nor the time elapsed from fever onset until blood draws were considered exclusion criteria for the study, as long as the patients remained with severe neutropenia at the time of sample collection. As per local protocol, the first routine sample collection requested for all admitted FN patients includes a complete blood count (in which the persistence of severe neutropenia was confirmed) and C-reactive protein (CRP) measurement.

Serum levels of VEGF-A, sFlt-1, Ang-1 and Ang-2 were measured by an individual blinded to patient outcomes, in duplicate, using commercial enzyme linked immunosorbent assay (ELISA) kits (Quantikine, R&D Systems, Minneapolis, MN, USA) according to the manufacturer's instructions. Samples were centrifuged at 1,000 g (4°C, 15 minutes) and serum was stored at -80°C until analysis. The sensitivities of the assays for VEGF-A, sFlt-1, Ang-1 and Ang-2 were 9 pg/ml, 3.5 pg/ml, 3.4 pg/ml and 8.3 pg/ml, respectively. The intra- and interassay coefficients of variation of all tests were within the range informed by the manufacturer (range 2.4% to 10.4%). Based upon a power analysis, and considering an expected rate of septic shock of 25% (from our previous study), a sample size of 100 patients would produce at least 80% power at the 0.05 level of significance to detect an effect-size of 1 SD in all four assays between study groups.

Statistical analysis

The primary endpoint of the study was development of septic shock at any time point before the resolution of FN or at a maximum of 28 days after enrollment (in cases of prolonged neutropenia). Based on this outcome, patients were divided in two groups for the analysis: (i) non-complicated FN or (ii) septic shock. Differences in continuous variables between patients from each subgroup were analyzed using the Mann-Whitney test. Categorical variables were compared using the Fisher's exact test. Data are expressed as median and range unless otherwise stated. Correlation (Spearman's rank correlation) analysis was performed between sepsis severity scores and biomarker levels. Receiver operator characteristics (ROC) procedures were used to identify optimal cut-off values of biomarker concentrations to differentiate distinct outcome groups. To evaluate the effect of the Ang-2/Ang-1 ratio as a continuous variable on the risk of septic shock development and sepsis-related mortality, a Cox proportional-hazards model was used assuming a graded relation between the ratio and either outcome. To evaluate whether there was a non-linear association between the risk of septic shock and the Ang-2/Ang-1 ratio, a binary logistic regression model was used, in which the ratio was dichotomized by the median and by an optimal cut-off. All multivariate analysis models were adjusted for covariates with a P- value <0.10 in univariate analysis. Variables from the SOFA score were evaluated individually, to avoid the influence of chemotherapy-induced thrombocytopenia on the assessment of organ failure. Survival curves were estimated using the Kaplan-Meier method. A P- value less than or equal to 0.05 was considered statistically significant. All statistical analysis were performed with the SPSS package v. 17.2 (SPSS, Inc., Chicago, IL, USA) and the GraphPad Prism Software (GraphPad Prism Software, Inc., San Diego, CA, USA).

Results

Patients' characteristics

One-hundred twenty patients with FN were identified in both in-patient units during the study period. All patients agreed to participate, but only the 99 patients that met all inclusion criteria were maintained in the study. Twenty-one patients were excluded because the absolute neutrophil count had increased to above 0.5 × 109/L at the time of sample collection (Figure 1). Of note, none of these 21 patients developed septic shock. Of the 99 episodes of FN, 20 (19.8%) evolved to septic shock, and 17 (16.8%) were fatal. All deaths were attributed to complications of septic shock, and occurred after a median of 13 days from sample collection (range 3 to 28). Seventy-eight FN episodes (78.8%) were classified as high-risk FN, based on a MASCC score ≤21 [29]. There were no significant clinical and demographic differences between patients with non-complicated FN and septic shock with respect to age, diagnosis, MASCC score, CRP, neutrophil and platelet counts, nor any of the components of the SOFA score. A higher SOFA score in patients that developed septic shock was the only significant difference observed at baseline between the two outcome groups (Table 1). The median time to septic shock development after sample collection was three days (range 1 to 17, interquartile range 4.5). In total, five patients developed septic shock more than seven days after fever onset. In four of them, septic shock was associated with probable or proven invasive fungal infections. In addition, three patients developed septic shock between enrollment and sample collection, within 12 hours from blood draw.

Figure 1
figure 1

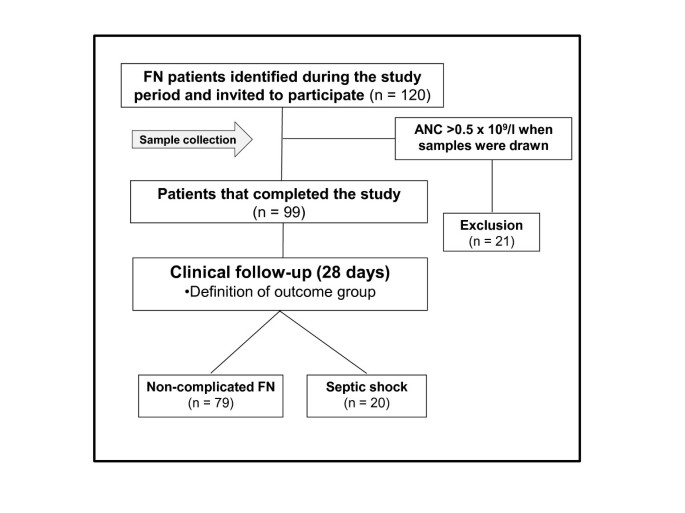

Study flowchart.

Full size image
Table 1 Patient characteristics
Full size table

Serum levels endothelial permeability modulators according to the development of septic shock

No statistically significant difference could be detected between VEGF-A and sFlt-1 levels in patients with non-complicated FN compared to patients that developed septic shock (Figure 2). Serum concentrations of Ang-1, an endothelial barrier-stabilizing factor, were higher in patients with non-complicated FN (1,220.0 pg/ml, range 32.5 to 47,924.0 pg/ml) than in patients with septic shock (898.8 pg/ml, range 77.9 to 5,420.0 pg/ml), although this difference did not reach statistical significance (Mann-Whitney test, P = 0.07) (Figure 2). Levels of Ang-2, an endothelial barrier-destabilizing factor, were higher in patients that developed septic shock (6,494.0 pg/ml, range 1,730.0 to 49,611.0 pg/ml) compared to patients with non-complicated sepsis (4,467.0 pg/ml, range 1,289.0 to 37,318.0 pg/ml; Mann-Whitney test: P = 0.02) (Figure 2).

Figure 2
figure 2

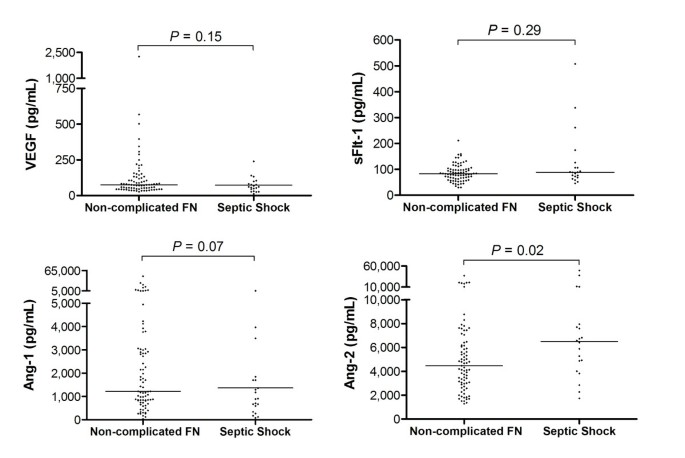

Vascular permeability-related biomarkers in FN patients. Serum concentrations of soluble fms-like tyrosine kinase-1 (sFlt-1), vascular endothelial growth factor-A (VEGF-A) and angiopoietin (Ang) -1 and Ang-2 in patients with non-complicated febrile neutropenia (FN) (n = 79) or septic shock (n = 20). Horizontal bars represent median values; Mann-Whitney test.

Full size image

In addition to these findings, serum levels of Ang-1 presented a negative correlation with the SOFA score (Rs = -0.36; P = 0.0002) and serum levels of Ang-2 a positive correlation with CRP (Rs = 0.3; P = 0.002). No correlation could be observed between platelet counts and Ang-1 (Rs = 0.1; P = 0.34) or Ang-2 (Rs = 0.1; P = 0.34) levels. Interestingly, when only patients with a platelet count below the median were evaluated, a significant correlation between Ang-1 and platelet count could be observed (Rs = 0.36; P = 0.007).

The Ang-2/Ang-1 ratio is increased in patients with FN neutropenia that will develop septic shock compared to patients with non-complicated FN

Because of their antagonistic roles for endothelial barrier integrity, the relative concentrations of Ang-1 and Ang-2, expressed as the Ang-2/Ang1 ratio, has been considered a more relevant sepsis biomarker than isolated levels of each factor. In fact, the Ang-2/Ang-1 ratio was much higher in the septic shock outcome group (5.3, range 0.6 to 57.1) compared to patients with non-complicated FN (1.9, range 0.1 to 64.6; Mann-Whitney test: P = 0.01) (Figure 3).

Figure 3
figure 3

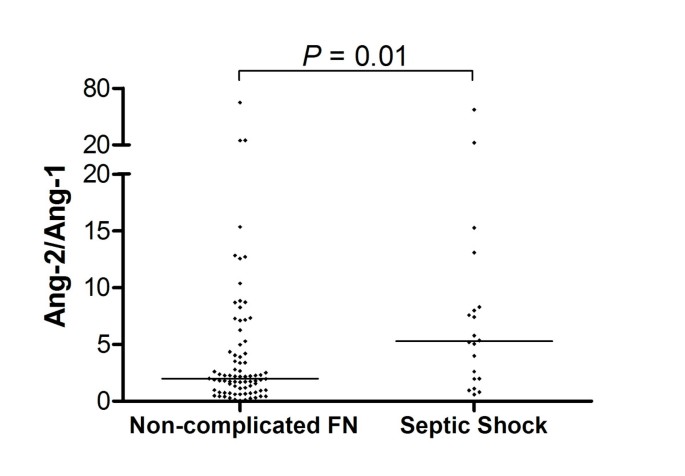

Ang-2/Ang-1 ratio in FN patients. Angiopoietin- (Ang)-2/Ang-1 ratio in patients with non-complicated febrile neutropenia (FN) (n = 79) or septic shock (n = 20). Horizontal bars represent median values; Mann-Whitney test.

Full size image

Estimation of the diagnostic accuracy of the Ang-2/Ang-1 ratio for the development of septic shock yielded an area under the ROC curve of 0.68 (95%CI = 0.55 to 0.81; P = 0.01). An Ang-2/Ang-1 ratio of 5.0 was the optimal cut-off value identified by the ROC procedure, with a sensitivity of 60% (95% CI = 36.1% to 80.9%) and a specificity of 77.2% (95% CI = 66.4% to 85.9%) for the development of septic shock. The positive and negative predictive values were 47% and 85%, respectively. Of note, the estimated diagnostic accuracy of the Ang-2/Ang-1 ratio was higher than that obtained with either Ang-1 or Ang-2 levels alone, as well as that of CRP, SOFA or the MASCC scores (Table 2).

Table 2 Diagnostic accuracy for septic shock development
Full size table

An Ang-2/Ang-1 ratio above 5.0 is an independent factor for the development of septic shock and sepsis-related mortality in patients with FN

When the Ang-2/Ang-1 was analyzed as a continuous variable in a Cox proportional-hazards model, the relative risk of septic shock was 1.06 (95% CI 1.02 to 1.10; P = 0.004), even after adjustment for neutrophil and platelets counts. Other variables, including age, sex, baseline diagnosis, treatment type and CRP, among others, were not associated with the risk of septic shock development in our population. This first analysis assumed that the association between the Ang-2/Ang-1 ratio and the risk of septic shock development presented a graded relation. We next evaluated whether there was a threshold level of the Ang-2/Ang-1 ratio above which the risk of septic shock would increase in a non-linear fashion. We dichotomized levels of Ang-2/Ang-1 into median and cut-off values (estimated by the ROC procedure), and calculated the relative risks of septic shock development. The risk of septic shock was almost five times greater among patients with Ang-2/Ang-1 ratio exceeding the cut-off, even after adjustment for neutrophil and platelet counts (covariates with a P <0.1 in univariate analysis) (Table 3).

Table 3 Relative risk of septic shock development
Full size table

Ang-2/Ang-1 ratio and 28-day sepsis-related mortality in patients with FN

The relative risk of sepsis-related mortality for patients with Ang-2/Ang-1 levels above the 5.0 cut-off was 5.8 (95% CI 1.96 to 17.59; P = 0.001) and 2.74 (95% confidence interval, 1.054 to 7.160; P = 0.03) for Ang-2/Ang-1 levels above the median. Using a Cox proportional-hazards model, adjusting for neutrophil and platelet count, the mortality risk was 4.20 (95% CI 1.60 to 11.05; P = 0.004) for patients with an Ang-2/Ang-1 ratio above 5.0, and 2.73 (95% CI 0.97 to 7.75; P = 0.059) for patients with an Ang-2/Ang-1 ratio above the median. The Kaplan-Meier curves showed clear divergence of survival estimates between patients with Ang-2/Ang-1 ratios above or below the median or cut-off values (Figure 4).

Figure 4
figure 4

Twenty-eight-day survival and septic shock development in high-risk FN patients. Kaplan-Meier estimates of 28-day (a) survival and (b) septic shock development of patients with febrile neutropenia (FN) according to angiopoietin (Ang)-2/Ang-1 ratio. The ratio was dichotomized by the median Ang-2/Ang-1 ratio (2.2) in all patients (right) or by an optimal cut-off level of 5.0 (left), defined by a receiver operator characteristic (ROC) analysis.

Full size image

Discussion

Among the several factors that contribute to a higher risk of sepsis complications in patients with cancer, chemotherapy-associated neutropenia is probably the single-most important one [29]. Although the risk is higher in patients with severe and long-lasting neutropenia, risk stratification tools are limited, and the majority of patients end up treated aggressively with hospitalization and broad-spectrum antibiotics [29]. The most accepted risk stratification tool for cancer-related FN is the MASCC score [27]. However, this score offers limited information for patients categorized as high-risk (MASCC ≤21), which encompasses most patients submitted to more intensive myelotoxic chemotherapy protocols. Accordingly, management of patients with cancer-related FN remains a challenging situation, for which the availability of informative biomarkers would be welcome.

In the last decade, mechanisms by which the endothelial barrier is established in the embryo have been described in detail [6]. As they were being described, some authors demonstrated that the same mechanisms were involved in the pathological disruption of the endothelial barrier observed during sepsis [7]. Soon after that, encouraging results were published about the use of VEGF-A, sFlt-1, Ang-1 and Ang-2 as biomarkers of septic shock development. In general, these studies demonstrated a consistent pattern in patients with septic shock, characterized by increased levels of proteins that loosen endothelial cell junctions during vessel formation, such VEGF-A and Ang-2, and decreased levels of barrier stabilizing proteins, such as Ang-1. Indeed, imbalances in Ang-1/Ang-2 ratio, expressed by a high Ang-2/Ang-1 ratio, recently emerged as one of the most promising biomarkers for septic shock development in several populations [11, 16, 30]. However, because patients with cancer were excluded or underrepresented in these studies, it is not known whether these results may be applied to patients with cancer.

In a preliminary study, we demonstrated that VEGF-A, sFlt-1, Ang-1 and Ang-2 were associated with sepsis severity in patients with FN [22, 23]. So, the objective of the present study was to validate the use of these biomarkers in a larger and independent cohort of patients with cancer and chemotherapy-associated FN, in experimental conditions more closely mimicking the scenario in which a sepsis biomarker would be ordered. This was achieved by: (1) sequential enrollment of patients; (2) limitation of exclusion criteria; (3) sample collection and initial processing performed by hospital staff; and (4) sampling time mimicking the local use of a biomarker (CRP) already used for patients with FN [14].

Not infrequently, results obtained in well-designed studies of diagnostic accuracy are not reproduced in similar independent populations [31], due to differences in time of sample collection and even in sample type and manipulation. In fact, we were not able to confirm previous reports of VEGF-A or sFlt-1 as informative biomarkers of septic shock development in patients with FN [23, 32]. We speculate that these discrepancies are associated with differences in the time-point of sample collection, and with the potential influence of severe neutropenia and thrombocytopenia in the variation of VEGF-A, as neutrophils and platelets are major sources of these mediator [33]. In addition, we cannot rule out the possibility that differences in baseline levels of VEGF-A between different types of malignancies [34] could have also played a role. Whatever the reasons for these discrepancies, they suggest that assays for VEGF-A and sFlt-1 possibly lack the robustness required for a sepsis biomarker to overcome the challenge of "real world" conditions, based on our local-practice, in the context of FN.

On the other hand, the main finding of our study was the confirmation that the Ang-2/Ang-1 ratio is independently associated with septic shock development in patients with cancer and high-risk FN, for whom other risk stratification tools provide very limited information. Although it should be noted that the relatively low sensitivity and specificity of the Ang-2/Ang-1 ratio do not qualify it as a biomarker that could influence decision-making by itself, it should also be pointed out that it presented a higher estimated diagnostic accuracy than CRP, Ang-1, Ang2 or the SOFA and MASCC scores, with the latter being the most widely used risk stratification tool for this population. In addition, the sensitivity and specificity of the Ang-2/Ang-1 ratio was similar to that of procalcitonin for the diagnosis of sepsis in critically ill patients [35]. Finally, our findings are important not only because a biomarker with a negative predictive value of 85% deserves to be evaluated as part of decision-making algorithms that incorporate clinical and laboratory markers in patients with FN, but also because they provide additional insights into the pathogenesis of septic shock in this particular population.

The use of the Ang-2/Ang-1 ratio rather than Ang-2 as a biomarker has been a matter of recent debate [36]. As opposed to Ang-2, which is exclusively stored in endothelial cells, Ang-1 is also expressed in platelets [37], so that ex vivo platelet activation can result in falsely elevated Ang-1 levels, limiting the accuracy of the Ang-2/Ang-1 ratio. Accordingly, the effect of pre-analytical variables, such as sample type and manipulation, have been cited as possible explanations for discrepant results of Ang-1 levels as a sepsis biomarker [36]. On the other hand, it is tempting to speculate that "true" imbalances in Ang-1 and Ang-2 levels do represent a biologically relevant determinant of endothelial barrier integrity, as suggested by several lines of evidence [38]. It is not known whether the effect of ex vivo platelet activation on Ang-1 levels is influenced by sample platelet count. However, our data showing a significant correlation between platelet count and Ang-1 levels only in patients with severe thrombocytopenia, but not in patients with higher and more variable platelet counts, suggest that severe hypoplastic thrombocytopenia could attenuate the influence of the pre-analytical variables that normally limit the determination of "true" Ang-1 levels. Therefore, although we acknowledge the technical limitations of Ang-1 determination, we speculate that more reliable Ang-1 levels can be obtained in patients with chemotherapy-induced severe thrombocytopenia.

One of the main objectives of our study was to determine whether Ang-1 and Ang-2 measurements would remain as relevant sepsis biomarkers in a population with different characteristics than those from studies of non-neutropenic patients. Neutrophils are critical components of the innate immune response, releasing cytokines and chemokines, engulfing pathogens and contributing to microbial killing by a range of peptides and by neutrophil extracellular trap formation [39]. It was interesting to note that the optimal cut-off of the Ang-2/Ang-1 ratio associated with septic shock in our population was very similar to the mean peak Ang-2/Ang-1 ratio observed in non-survivors in a study with non-neutropenic sepsis patients (5.0 vs 5.4, respectively) [11]. From a clinical standpoint, a significant difference between our population and non-neutropenic patients is the earlier collection of blood samples in the course of infection, when clinical signs of sepsis were mild or absent (as illustrated by the lower SOFA score in our patients). The reason for this characteristic lies in the fact that patients with FN are instructed to look for medical care immediately after fever onset, allowing earlier admission. In fact, we believe that the relatively lower Ang-2 levels in our patients are another consequence of this earlier evaluation. Of note, we have previously shown a five-fold increase in Ang-2 levels during the first 48 hours of FN in patients that evolved to septic shock [22]. Another important difference in septic shock between neutropenic and non-neutropenic patients is the high frequency of invasive fungal infections (IFI) in the former group, often associated with a protracted course of fever, and a longer time to septic shock. In fact, although most of our patients evolved to septic shock within a week from fever onset, four of the five patients in whom septic shock developed from 7 to 17 days presented probable or proven IFI. Together, the fact that a similar value of the Ang-2/Ang-1 ratio was associated with worse outcomes in these two different populations strengthens the concept that imbalances in Ang-2 and Ang-1 concentrations are indeed a relevant biomarker of septic shock development. Moreover, the fact that imbalances in this pathway remain relevant for the pathogenesis of septic shock in patients with severe neutropenia indicates the independence of the Tie/Angiopoietin pathway from neutrophil function during sepsis. Indeed, this concept is reinforced by a series of other recent studies showing that manipulation of angiopoietin pathways can improve sepsis outcomes in different animal models [15, 40, 41].

This study has several limitations. First, because of a higher than expected coefficient of variation of VEGF-A levels in our patients (CV% of 193%), and with only 20 patients with septic shock, our study had power to detect only extreme differences of VEGF-A levels between the outcome groups. Second, we did not evaluate baseline Ang-2 levels. So, it is conceivable that differences in Ang-2 levels present before chemotherapy, which have been shown to be associated with disease-free survival in high-risk myeloid malignancies [42], might have influenced our results. Arguing against this possibility is the fact that we and others have not found significant differences in pre-chemotherapy Ang-2 levels between different disease groups, even in cancers with significant angiogenic activity, such as multiple myeloma [22, 42]. A third limitation refers to the importance of the SOFA score as a readout of systemic organ failure in our population, since thrombocytopenia was the only category in which 61% of our patients scored, most of them with high scores. Since thrombocytopenia in our patients is simply a transient effect of chemotherapy, it is fair to assume that the diagnostic accuracy of this score is more limited in our population. We tried to minimize this limitation by avoiding the use of the score (mainly driven by thrombocytopenia) in our multivariate analysis, in which platelet count had already been used for adjustment. Fourth, we did not evaluate other outcomes that have also been associated with alterations of the Ang/Tie pathway, such as acute lung injury [43], so that our results can only be applicable to the context of septic shock development. Fifth, we did not control the effect of fluid management, which has been shown to influence Ang-2 levels [8], so that it is not possible to exclude the idea that more aggressive fluid therapy could have resulted in higher Ang-2 levels in some patients. However, extreme values of Ang-2 were observed in both outcome groups, a consistent finding in studies with this biomarker. Furthermore, fluid management before sample collection was fairly standardized in our study. Last, because three of our patients developed septic shock between enrollment and sample collection, our study does not support the use of the Ang-2/Ang-1 ratio as a predictive tool, but rather as a biomarker of septic shock development in a high-risk population.

Finally, we believe that an additional use of the Ang-2/Ang-1 ratio in sepsis in the future could be the identification of septic patient subgroups, in which disruption of the endothelial barrier could play a more prominent pathogenic role. In theory, the identification of these more "leaky" patients could rationally guide the use of new therapeutic strategies targeting pathways involved in endothelial barrier regulation [13, 44]. As targeted-therapies directed to different pathogenic mechanisms of sepsis begin to reach the phase of human clinical trials, the availability of biomarkers capable of identifying discrete patient subgroups among the highly heterogeneous population of patients with sepsis, could well be the difference between failure and success of new therapies for sepsis [4].

Conclusions

In conclusion, our study confirms that the measurement of the Ang-2/Ang-1 ratio is a biomarker of septic shock development in patients with cancer and chemotherapy-related FN.

Key messages

  • Ang-1 and And-2 are key regulators of endothelial barrier integrity, and seem to be involved in the pathological disruption of endothelial barrier during sepsis.

  • Levels of Ang-1 and Ang-2 have been shown to be promising biomarkers of septic shock development in several populations, but not in cancer patients.

  • A high Ang-2/Ang-2 ratio is independently associated with septic shock development in patients with cancer and chemotherapy-associated febrile neutropenia.

Abbreviations

Ang:

angiopoietin

CRP:

C-reactive protein

CV%:

coefficient of variation

ELISA:

enzyme linked immunosorbent assays

FN:

febrile neutropenia

IFI:

invasive fungal infections

IRB:

institutional review board

MASCC:

Multinational Association for Supportive Care In Cancer

ROC:

receiver operator characteristics

sFlt-1:

soluble fms-like tyrosine kinase-1

SOFA:

Sequential Organ Failure Assessment

STARD:

Standards for the Reporting of Diagnostic Accuracy Studies

VEGF:

vascular endothelial growth factor

References

  1. McMillan DC: Systemic inflammation, nutritional status and survival in patients with cancer. Curr Opin Clin Nutr Metab Care 2009, 12: 223-226. 10.1097/MCO.0b013e32832a7902

    Article  PubMed  Google Scholar

  2. Kumar G, Kumar N, Taneja A, Kaleekal T, Tarima S, McGinley E, Jimenez E, Mohan A, Khan RA, Whittle J, Jacobs E, Nanchal R, Milwaukee Initiative in Critical Care Outcomes Research Group of Investigators: Nationwide trends of severe sepsis in the 21st century (2000-2007). Chest 140: 1223-1231.

  3. Pierrakos C, Vincent JL: Sepsis biomarkers: a review. Crit Care 2010, 14: R15. 10.1186/cc8872

    Article  PubMed  PubMed Central  Google Scholar

  4. Moyer MW: New biomarkers sought for improving sepsis management and care. Nat Med 2012, 18: 999. 10.1038/nm0712-999

    Article  PubMed  CAS  Google Scholar

  5. Sackett DL, Haynes RB: The architecture of diagnostic research. BMJ 2002, 324: 539-541. 10.1136/bmj.324.7336.539

    Article  PubMed  CAS  PubMed Central  Google Scholar

  6. Dejana E, Tournier-Lasserve E, Weinstein BM: The control of vascular integrity by endothelial cell junctions: molecular basis and pathological implications. Dev Cell 2009, 16: 209-221. 10.1016/j.devcel.2009.01.004

    Article  PubMed  CAS  Google Scholar

  7. van der Flier M, van Leeuwen HJ, van Kessel KP, Kimpen JL, Hoepelman AI, Geelen SP: Plasma vascular endothelial growth factor in severe sepsis. Shock 2005, 23: 35-38. 10.1097/01.shk.0000150728.91155.41

    Article  PubMed  CAS  Google Scholar

  8. Calfee CS, Gallagher D, Abbott J, Thompson BT, Matthay MA: Plasma angiopoietin-2 in clinical acute lung injury: prognostic and pathogenetic significance. Crit Care Med 2012, 40: 1731-1737. 10.1097/CCM.0b013e3182451c87

    Article  PubMed  CAS  PubMed Central  Google Scholar

  9. Davis JS, Yeo TW, Piera KA, Woodberry T, Celermajer DS, Stephens DP, Anstey NM: Angiopoietin-2 is increased in sepsis and inversely associated with nitric oxide-dependent microvascular reactivity. Crit Care 2010, 14: R89. 10.1186/cc9020

    Article  PubMed  PubMed Central  Google Scholar

  10. Mankhambo LA, Banda DL, Jeffers G, White SA, Balmer P, Nkhoma S, Phiri H, Molyneux EM, Hart CA, Molyneux ME, Heyderman RS, Carrol ED: The role of angiogenic factors in predicting clinical outcome in severe bacterial infection in Malawian children. Crit Care 2011, 14: R91.

    Article  Google Scholar

  11. Ricciuto DR, dos Santos CC, Hawkes M, Toltl LJ, Conroy AL, Rajwans N, Lafferty EI, Cook DJ, Fox-Robichaud A, Kahnamoui K, Kain KC, Liaw PC, Liles WC: Angiopoietin-1 and angiopoietin-2 as clinically informative prognostic biomarkers of morbidity and mortality in severe sepsis. Crit Care Med 2011, 39: 702-710. 10.1097/CCM.0b013e318206d285

    Article  PubMed  CAS  Google Scholar

  12. Orfanos SE, Kotanidou A, Glynos C, Athanasiou C, Tsigkos S, Dimopoulou I, Sotiropoulou C, Zakynthinos S, Armaganidis A, Papapetropoulos A, Roussos C: Angiopoietin-2 is increased in severe sepsis: correlation with inflammatory mediators. Crit Care Med 2007, 35: 199-206. Erratum in: Crit Care Med 2007, 35:1224 10.1097/01.CCM.0000251640.77679.D7

    Article  PubMed  CAS  Google Scholar

  13. Siner JM, Bhandari V, Engle KM, Elias JA, Siegel MD: Elevated serum angiopoietin 2 levels are associated with increased mortality in sepsis. Shock 2009, 31: 348-353. 10.1097/SHK.0b013e318188bd06

    Article  PubMed  CAS  Google Scholar

  14. van der Heijden M, Pickkers P, van Nieuw Amerongen GP, van Hinsbergh VW, Bouw MP, van der Hoeven JG, Groeneveld AB: Circulating angiopoietin-2 levels in the course of septic shock: relation with fluid balance, pulmonary dysfunction and mortality. Intensive Care Med 2009, 35: 1567-1574. 10.1007/s00134-009-1560-y

    Article  PubMed  CAS  PubMed Central  Google Scholar

  15. Parikh SM, Mammoto T, Schultz A, Yuan HT, Christiani D, Karumanchi SA, Sukhatme VP: Excess circulating angiopoietin-2 may contribute to pulmonary vascular leak in sepsis in humans. PLoS Med 2006, 3: e46. 10.1371/journal.pmed.0030046

    Article  PubMed  PubMed Central  Google Scholar

  16. Kumpers P, Lukasz A, David S, Horn R, Hafer C, Faulhaber-Walter R, Fliser D, Haller H, Kielstein JT: Excess circulating angiopoietin-2 is a strong predictor of mortality in critically ill medical patients. Crit Care 2008, 12: R147. 10.1186/cc7130

    Article  PubMed  PubMed Central  Google Scholar

  17. Giuliano JS Jr, Lahni PM, Harmon K, Wong HR, Doughty LA, Carcillo JA, Zingarelli B, Sukhatme VP, Parikh SM, Wheeler DS: Admission angiopoietin levels in children with septic shock. Shock 2007, 28: 650-654.

    PubMed  CAS  PubMed Central  Google Scholar

  18. Kumpers P, van Meurs M, David S, Molema G, Bijzet J, Lukasz A, Biertz F, Haller H, Zijlstra JG: Time course of angiopoietin-2 release during experimental human endotoxemia and sepsis. Crit Care 2009, 13: R64. 10.1186/cc7866

    Article  PubMed  PubMed Central  Google Scholar

  19. Schuetz P, Jones AE, Aird WC, Shapiro NI: Endothelial cell activation in emergency department patients with sepsis-related and non-sepsis-related hypotension. Shock 2011, 36: 104-108. 10.1097/SHK.0b013e31821e4e04

    Article  PubMed  PubMed Central  Google Scholar

  20. Legrand M, Max A, Peigne V, Mariotte E, Canet E, Debrumetz A, Lemiale V, Seguin A, Darmon M, Schlemmer B, Azoulay E: Survival in neutropenic patients with severe sepsis or septic shock. Crit Care Med 2012, 40: 43-49. 10.1097/CCM.0b013e31822b50c2

    Article  PubMed  Google Scholar

  21. André S, Taboulet P, Elie C, Milpied N, Nahon M, Kierzek G, Billemont M, Perruche F, Charpentier S, Clément H, Pourriat JL, Claessens YE: Febrile neutropenia in French emergency departments: results of a prospective multicentre survey. Crit Care 2010, 14: R68. 10.1186/cc8972

    Article  PubMed  PubMed Central  Google Scholar

  22. Alves BE, Montalvao SA, Aranha FJ, Siegl TF, Souza CA, Lorand-Metze I, Annichino-Bizzacchi JM, De Paula EV: Imbalances in serum angiopoietin concentrations are early predictors of septic shock development in patients with post chemotherapy febrile neutropenia. BMC Infect Dis 2010, 10: 143. 10.1186/1471-2334-10-143

    Article  PubMed  PubMed Central  Google Scholar

  23. Alves BE, Montalvao SA, Aranha FJ, Lorand-Metze I, De Souza CA, Annichino-Bizzacchi JM, De Paula EV: Time-course of sFlt-1 and VEGF-A release in neutropenic patients with sepsis and septic shock: a prospective study. J Transl Med 2011, 9: 23. 10.1186/1479-5876-9-23

    Article  PubMed  CAS  PubMed Central  Google Scholar

  24. Hughes WT, Armstrong D, Bodey GP, Bow EJ, Brown AE, Calandra T, Feld R, Pizzo PA, Rolston KV, Shenep JL, Young LS: 2002 guidelines for the use of antimicrobial agents in neutropenic patients with cancer. Clin Infect Dis 2002, 34: 730-751. 10.1086/339215

    Article  PubMed  Google Scholar

  25. Bone RC, Balk RA, Cerra FB, Dellinger RP, Fein AM, Knaus WA, Schein RM, Sibbald WJ: Definitions for sepsis and organ failure and guidelines for the use of innovative therapies in sepsis. The ACCP/SCCM Consensus Conference Committee. American College of Chest Physicians/Society of Critical Care Medicine. Chest 1992, 101: 1644-1655. 10.1378/chest.101.6.1644

    Article  PubMed  CAS  Google Scholar

  26. Vincent JL, Moreno R, Takala J, Willatts S, De Mendonça A, Bruining H, Reinhart CK, Suter PM, Thijs LG: The SOFA (Sepsis-related Organ Failure Assessment) score to describe organ dysfunction/failure. On behalf of the Working Group on Sepsis-Related Problems of the European Society of Intensive Care Medicine. Intensive Care Med 1996, 22: 707-710. 10.1007/BF01709751

    Article  PubMed  CAS  Google Scholar

  27. Klastersky J, Paesmans M, Rubenstein EB, Boyer M, Elting L, Feld R, Gallagher J, Herrstedt J, Rapoport B, Rolston K, Talcott J: The Multinational Association for Supportive Care in Cancer Risk Index: a multinational scoring system for identifying low-risk febrile neutropenic cancer patients. J Clin Oncol 2000, 18: 3038-3051.

    PubMed  CAS  Google Scholar

  28. Bossuyt PM, Reitsma JB, Bruns DE, Gatsonis CA, Glasziou PP, Irwig LM, Lijmer JG, Moher D, Rennie D, de Vet HC, Standards for Reporting of Diagnostic Accuracy: Toward complete and accurate reporting of studies of diagnostic accuracy. The STARD initiative. Am J Clin Pathol 2003, 119: 18-22. 10.1309/8EXCCM6YR1THUBAF

    Article  PubMed  Google Scholar

  29. Klastersky J, Awada A, Paesmans M, Aoun M: Febrile neutropenia: a critical review of the initial management. Crit Rev Oncol Hematol 2011, 78: 185-194. 10.1016/j.critrevonc.2010.03.008

    Article  PubMed  Google Scholar

  30. Carrol ED: Angiopoietins as prognostic biomarkers and effector molecules in severe sepsis. Crit Care Med 2011, 39: 2203-2204; author reply 2204. 10.1097/CCM.0b013e31821f02bf

    Article  PubMed  PubMed Central  Google Scholar

  31. Bleeker SE, Moll HA, Steyerberg EW, Donders AR, Derksen-Lubsen G, Grobbee DE, Moons KG: External validation is necessary in prediction research: a clinical example. J Clin Epidemiol 2003, 56: 826-832. 10.1016/S0895-4356(03)00207-5

    Article  PubMed  CAS  Google Scholar

  32. Hamalainen S, Juutilainen A, Matinlauri I, Kuittinen T, Ruokonen E, Koivula I, Jantunen E: Serum vascular endothelial growth factor in adult haematological patients with neutropenic fever: a comparison with C-reactive protein. Eur J Haematol 2009, 83: 251-257. 10.1111/j.1600-0609.2009.01260.x

    Article  PubMed  CAS  Google Scholar

  33. Kusumanto YH, Dam WA, Hospers GA, Meijer C, Mulder NH: Platelets and granulocytes, in particular the neutrophils, form important compartments for circulating vascular endothelial growth factor. Angiogenesis 2003, 6: 283-287.

    Article  PubMed  CAS  Google Scholar

  34. Guo B, Liu Y, Tan X, Cen H: Prognostic significance of vascular endothelial growth factor expression in adult patients with acute myeloid leukemia: a meta-analysis. Leuk Lymphoma 2013, 54: 1418-1425. 10.3109/10428194.2012.748907

    Article  PubMed  CAS  Google Scholar

  35. Tang BM, Eslick GD, Craig JC, McLean AS: Accuracy of procalcitonin for sepsis diagnosis in critically ill patients: systematic review and meta-analysis. Lancet Infect Dis 2007, 7: 210-217. 10.1016/S1473-3099(07)70052-X

    Article  PubMed  CAS  Google Scholar

  36. David S, van Meurs M, Kumpers P: Does low angiopoietin-1 predict adverse outcome in sepsis? Crit Care 2010, 14: 180. 10.1186/cc9090

    Article  PubMed  PubMed Central  Google Scholar

  37. Lukasz A, Hellpap J, Horn R, Kielstein JT, David S, Haller H, Kumpers P: Circulating angiopoietin-1 and angiopoietin-2 in critically ill patients: development and clinical application of two new immunoassays. Crit Care 2008, 12: R94. 10.1186/cc6966

    Article  PubMed  PubMed Central  Google Scholar

  38. David S, Kumpers P, van Slyke P, Parikh SM: Mending leaky blood vessels: the angiopoietin-Tie2 pathway in sepsis. J Pharmacol Exp Ther 2013, 345: 2-6. 10.1124/jpet.112.201061

    Article  PubMed  CAS  Google Scholar

  39. Kovach MA, Standiford TJ: The function of neutrophils in sepsis. Curr Opin Infect Dis 2012, 25: 321-327. 10.1097/QCO.0b013e3283528c9b

    Article  PubMed  CAS  Google Scholar

  40. Alfieri A, Watson JJ, Kammerer RA, Tasab M, Progias P, Reeves K, Brown NJ, Brookes ZL: Angiopoietin-1 variant reduces LPS-induced microvascular dysfunction in a murine model of sepsis. Crit Care 2012, 16: R182. 10.1186/cc11666

    Article  PubMed  PubMed Central  Google Scholar

  41. Kumpers P, Gueler F, David S, Slyke PV, Dumont DJ, Park JK, Bockmeyer CL, Parikh SM, Pavenstadt H, Haller H, Shushakova N: The synthetic tie2 agonist peptide vasculotide protects against vascular leakage and reduces mortality in murine abdominal sepsis. Crit Care 2011, 15: R261. 10.1186/cc10523

    Article  PubMed  PubMed Central  Google Scholar

  42. Kumpers P, Koenecke C, Hecker H, Hellpap J, Horn R, Verhagen W, Buchholz S, Hertenstein B, Krauter J, Eder M, David S, Göhring G, Haller H, Ganser A: Angiopoietin-2 predicts disease-free survival after allogeneic stem cell transplantation in patients with high-risk myeloid malignancies. Blood 2008, 112: 2139-2148. 10.1182/blood-2007-12-130021

    Article  PubMed  Google Scholar

  43. Agrawal A, Matthay MA, Kangelaris KN, Stein J, Chu JC, Imp BM, Cortez A, Abbott J, Liu KD, Calfee CS: Plasma angiopoietin-2 predicts the onset of acute lung injury in critically ill patients. Am J Respir Crit Care Med 2013, 187: 736-742. 10.1164/rccm.201208-1460OC

    Article  PubMed  PubMed Central  Google Scholar

  44. Goldenberg NM, Steinberg BE, Slutsky AS, Lee WL: Broken barriers: a new take on sepsis pathogenesis. Sci Transl Med 2011, 3: 88ps25. 10.1126/scitranslmed.3002011

    PubMed  CAS  Google Scholar

Download references

Acknowledgements

This study was supported by grants from Fundacao de Amparo à Pesquisa de Sao Paulo (FAPESP) and Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq). The Hematology and Hemotherapy Center - UNICAMP, forms part of the National Institute of Science and Technology of Blood, Brazil (INCT do Sangue -CNPq / MCT / FAPESP).

Author information

Authors and Affiliations

  1. Hematology and Hemotherapy Center, University of Campinas Rua Carlos Chagas 480, Campinas, 13083-970, Brazil

    Maiara Marx Luz Fiusa, Carolina Costa-Lima, Gleice Regina de Souza, Afonso Celso Vigorito, Francisco Jose Penteado Aranha & Erich V De Paula

  2. Department of Internal Medicine, Faculty of Medical Sciences, University of Campinas, Rua Tessalia Vieira de Camargo 126, Campinas, 13083-887, Brazil

    Irene Lorand-Metze, Joyce M Annichino-Bizzacchi & Carmino Antonio de Souza

  3. Department of Clinical Pathology, University of Campinas, Rua Tessalia Vieira de Camargo 126, Campinas, 13083-887, Brazil

    Erich V De Paula

Authors
  1. Maiara Marx Luz Fiusa
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Carolina Costa-Lima
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Gleice Regina de Souza
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Afonso Celso Vigorito
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. Francisco Jose Penteado Aranha
    View author publications

    You can also search for this author in PubMed Google Scholar

  6. Irene Lorand-Metze
    View author publications

    You can also search for this author in PubMed Google Scholar

  7. Joyce M Annichino-Bizzacchi
    View author publications

    You can also search for this author in PubMed Google Scholar

  8. Carmino Antonio de Souza
    View author publications

    You can also search for this author in PubMed Google Scholar

  9. Erich V De Paula
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Erich V De Paula.

Additional information

Competing interests

The authors declare that they have no competing interests.

Authors' contributions

MMLF enrolled patients, recorded clinical data, performed laboratory analysis and drafted the manuscript. CC, GRS, ACV and FJPA enrolled patients and contributed to manuscript production. IL, JMA and CADS contributed to study design, data analysis and reviewed the manuscript. EVDP designed the study, analyzed the data and contributed to manuscript production. All authors read and approved the final manuscript for publication.
