The absolute value of recruitment-to-inflation ratio does not correlate with the recruited volume
Critical Care volume 27, Article number: 246 (2023)
The recruitment-to-inflation ratio (R/I) was proposed to assess recruitability in patients with acute respiratory distress syndrome (ARDS) . The method calculates the compliance Crec with the recruited volume and pressure differences between two positive end-expiratory pressures (PEEPs). R/I is the ratio between Crec and the respiratory system compliance (Crs) at lower PEEP (PEEPlow). In previous studies, it was demonstrated that overdistension could occur within tidal breathing, even when lung protective tidal volume was applied . Therefore, the influence of overdistension should not be neglected for PEEP changes. Since the global compliance alone cannot distinguish atelectasis and overdistension, we hypothesized that R/I rather reflects a combination of recruitment and overdistension.
We evaluated the ARDS patients admitted to our center from 04.2017 to 06.2022 and participating in other studies (one was published NCT03112512). Sixty-two patients were screened and finally 58 patients analyzed (PaO2/FiO2 = 82.9 ± 30.0 mmHg). Four patients were excluded due to either no ventilator data or no electrical impedance tomography (EIT) data recorded. The patients were ventilated with lung protective ventilation strategies (low tidal volume ~ 6 ml/kg and individualized PEEP). PEEP was increased by 10 cmH2O (2 min PEEPhigh, 19.0 ± 2.5 cmH2O). Afterward, PEEP was decreased to the previous level (PEEPlow, 9.3 ± 2.5 cmH2O). EIT measurement was conducted simultaneously with PulmoVista-500 (Draeger Medical, Germany) as specified by the device manufacturer. Relative impedance changes were calibrated to the corresponding volume changes in ml. Regional compliance was calculated for each pixel in the lung regions at both PEEPhigh and PEEPlow. Negative regional compliance change (ΔCEIT = Chigh − Clow) indicated an overdistension at PEEPhigh. Positive value of ΔCEIT suggested a recruitment at PEEPhigh. For calculation of R/I, the recruited volume was assessed with EIT as proposed in a previous study .
Crs at PEEPlow was 39.5 ± 18.1 ml/cmH2O. R/I of the studied patients was 0.93 ± 0.69. The ΔCEIT-overdistension was − 8.6 ± 7.3 ml/cmH2O and ΔCEIT-recruitment was 6.1 ± 3.7 ml/cmH2O. The correlation between R/I and ΔCEIT-recruitment was statistically insignificant (r = − 0.25). On the other hand, R/I and |ΔCEIT-overdistension|/ΔCEIT-recruitment were significantly correlated (r = 0.31, p = 0.02).

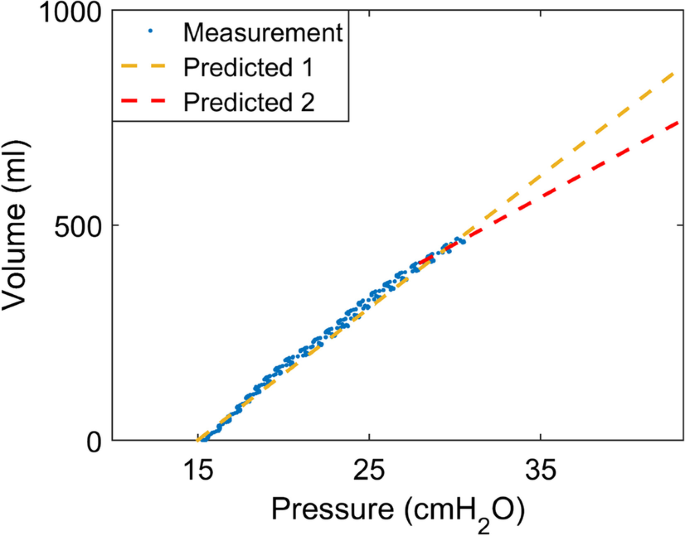

Our study showed that R/I might not be a reliable index to assess recruitment but rather has a weak correlation with the mixture of recruitment and overdistension. The calculation of R/I holds several assumptions (e.g., linear Crec within ΔPEEP and Crs within tidal breathing at PEEPlow). Only when these assumptions are met, R/I reflects solely the recruitability (e.g., overdistension is not present at either PEEPlow or PEEPhigh). Volume-dependent compliance changes have been intensively studied, and the results suggested that intra-tidal Crs is not necessarily linear in ARDS. Using Crs value at PEEPlow to predict the volume change in already aerated lung regions could be misleading (Fig. 1). Besides, R/I neglects the fact that intra-tidal overdistension may occur at PEEPhigh . R/I was correlated with PaO2/FiO2 and dead space in the original study , but those measures did not provide a direct proof of recruitability. Regional EIT information is used at the bedside to identify recruitment and overdistension [2, 3]. Therefore, we utilized the data set to test our hypothesis. A recent study obtained opposite results to ours . We speculated that 1. PEEPhigh value selected in that study was the optimal PEEP decided by EIT, at which little overdistension might have been present, and 2. the overdistension and recruitment calculated in that study were relative to the maximum regional compliance . The resulting values depend on the starting and ending PEEP levels of the PEEP titration, as well as the number of PEEP steps. Due to the calculation limitation of the relative compliance change, the percentage of overdistension at the lowest PEEP would be 0 regardless of the reality. On the other hand, we calculated the absolute changes of regional compliance, which would not have the limitations discussed above and more accurately reflect the degree of overdistension and recruitment. In another study , Taenaka et al. found weak correlation between R/I and Crs, R/I and silent spaces (presumably lung collapse and overdistension), which coincided to our findings that R/I assessed not only recruitment but also overdistension.
As limitation, the present study was a retrospective analysis of prospective studies. The calculation of R/I was not according to the original publication  but rather an alternative , which is also widely used. In the original publication, lowest pressure for opening the airways should be identified, which was not assessed in the current study. We could not rule out the possibility that PEEPlow might have been lower than the airway opening pressure in some patients. On the other hand, PEEPlow applied in the current study was considered an adequate PEEP level for the patients; therefore, PEEPhigh might have introduced considerable overdistension compared to the original study data. Furthermore, the compliance increase might not be linearly related to the recruited volume.
Nevertheless, R/I may ignore the overdistension and could be misleading if the absolute value is used to guide ventilator settings alone.
Availability of data and materials
Data are available upon reasonable request from the corresponding author.
Chen L, Del Sorbo L, Grieco DL, Junhasavasdikul D, Rittayamai N, Soliman I, Sklar MC, Rauseo M, Ferguson ND, Fan E, et al. Potential for lung recruitment estimated by the recruitment-to-inflation ratio in acute respiratory distress syndrome: a clinical trial. Am J Respir Crit Care Med. 2020;201(2):178–87.
Zhao Z, Sang L, Li Y, Frerichs I, Moller K, Fu F. Identification of lung overdistension caused by tidal volume and positive end-expiratory pressure increases based on electrical impedance tomography. Br J Anaesth. 2021;126(5):e167–70.
Mauri T, Spinelli E, Scotti E, Colussi G, Basile MC, Crotti S, Tubiolo D, Tagliabue P, Zanella A, Grasselli G, et al. Potential for lung recruitment and ventilation-perfusion mismatch in patients with the acute respiratory distress syndrome From coronavirus disease 2019. Crit Care Med. 2020;48(8):1129.
Pettenuzzo T, Sella N, Lorenzoni G, Calore A, Zarantonello F, Andreatta G, De Cassai A, Gregori D, Boscolo A, Navalesi P. The recruitment-to-inflation ratio is correlated with EIT-derived collapse and overdistention in COVID-19 ARDS. Am J Respir Crit Care Med. 2022;206(10):1284–6.
Taenaka H, Yoshida T, Hashimoto H, Firstiogusran A, Ishigaki S, Iwata H, Enokidani Y, Ebishima H, Kubo N, Koide M, et al. Personalized ventilatory strategy based on lung recruitablity in COVID-19-associated acute respiratory distress syndrome: a prospective clinical study. Crit Care. 2023;27:152.
The study was partially supported by the National Natural Science Foundation of China (52077216), Far Eastern Memorial Hospital (FEMH-2021C-045) and BMBF MOVE (FKZ 13FH628IX6).
Ethics approval and consent to participate
This study was conducted in the intensive care units of FEMH after receiving local Ethical committee approvals (FEMH-106094-E and 109200-F). All participants or their legal representatives provided written informed consent.
ZZ receives a consultation fee from Dräger Medical. IF reports funding from the European Union’s Framework Programme for Research and Innovation Horizon2020 (WELMO, Grant No. 825572). The other authors report no conflict of interest.
