Monitoring trauma and intensive care unit resuscitation with tissue hemoglobin oxygen saturation



The purpose of the present review is to review our experience with near-infrared spectroscopy (NIRS) monitoring in shock resuscitation and predicting clinical outcomes.


The management of critically ill patients with goal-oriented intensive care unit (ICU) resuscitation continues to evolve as our understanding of the appropriate physiologic targets improves. It is now recognized that resuscitation to achieve supranormal indices is not beneficial in all patients and may precipitate abdominal compartment syndrome.


Over the years, ICU technology has provided physicians with specific physiologic parameters to guide shock resuscitation. Throughout this time, the tissue hemoglobin oxygen saturation (StO2) monitor has emerged as a non-invasive means to obtain reliable physiologic parameters to guide clinicians' resuscitative efforts. StO2 monitors have been shown to aid in early identification of nonresponders and to predict outcomes in hemorrhagic shock and ICU resuscitation. These data have also been used to better understand and refine existing resuscitation protocols. More recently, use of NIRS technology to guide resuscitation in septic shock has been shown to predict outcomes in high-risk patients.


StO2 is an important tool in identifying high-risk patients in septic and hemorrhagic shock. It is a non-invasive means of obtaining vital information regarding outcome and adequacy of resuscitation.


Near-infrared spectroscopy (NIRS) offers a new monitoring tool to be used in critically ill patients. NIRS measures the saturation of hemoglobin in the skeletal muscle and serves as an index of perfusion. We have studied the value of tissue hemoglobin oxygen saturation (StO2) in a number of settings, including intensive care unit (ICU) shock resuscitation, predicting outcomes in the emergency department (ED), and to better understand massive transfusion (MT). The present article will briefly review these experiences.

Intensive care unit traumatic shock resuscitation

In the 1980s William Shoemaker and colleagues wrote a series of papers addressing the use of physiologic monitoring to predict outcome and to assist in clinical decision-making [13]. Two interesting variables identified were oxygen delivery (DO2) and oxygen consumption. In one observational study, Shoemaker and colleagues tracked these variables in preoperative and postoperative periods of high-risk patients undergoing elective surgical procedures. In the preoperative period, normal DO2 is 450 ml/min/m2 [1]. Following operative intervention, survivors will increase their DO2 to above 600 ml/min/m2 [1]. Nonsurvivors attempt to achieve this similar hyperdynamic state but cannot sustain it. Similarly, normal oxygen consumption is approximately 120 ml/min/m2; following an operation, survivors increase their oxygen consumption to supernormal levels of above 150 ml/min/m2. Likewise, nonsurvivors attempt to increase their oxygen consumption in this range but are not able to achieve it. Based on these observations, Shoemaker and colleagues concluded that survivor parameters include cardiac index >4.5 l/min/m2, DO2 >600 ml/min/m2, and oxygen consumption >150 ml/min/m2[1]. They proposed that the survivor parameters should be adopted as resuscitation goals and popularized the term supranormal oxygen delivery.

In the late 1980s Shoemaker and colleagues published the results of a prospective trial where there were three study groups who were managed by three different strategies [2]. The first group received a central venous line, and central venous pressures were used at the discretion of clinicians to guide resuscitation. Pulmonary artery (PA) catheters were placed in the second group, and monitored variables (PA wedge pressure and cardiac index) were again used at the clinicians' discretion to direct resuscitation. PA catheters were also placed in the third group of patients; however, these patients were managed with a resuscitative protocol that emphasized early volume loading followed by inotropic support with dobutamine. The results of this trial showed a dramatic reduction in mortality from 23% and 35% down to 4% between the central venous pressure and PA control groups and the PA protocol-treated group, respectively [2].

Based on these observations and others, Shoemaker and colleagues proposed that unrecognized flow-dependent oxygen consumption contributed to the development of multiple organ failure (MOF) [2, 3]. At this time, MOF was the leading cause of late ICU deaths and its pathophysiology was unclear. This theory attributed myocardial dysfunction that occurs in patients in shock as an important cause of subsequent MOF. This concept that unrecognized flow-dependent oxygen consumption could be corrected by maximizing DO2 became a popular strategy.

Meanwhile, new technology was being introduced into the ICU - including continuous venous oximetry and continuous cardiac output monitoring with PA catheters [4]. This permitted widespread use of oxygen transport variables to guide resuscitation. At the Denver General Hospital in the early 1990s, surgical intensivists developed a bedside clinical protocol that involved identification of patients who were at risk for postinjury MOF [5]. Upon arrival in the ICU, a PA catheter was presumptively placed in high-risk patients and a series of escalating interventions was utilized to maximize the patient's DO2. Based on the 12-hour response to these interventions, the intensivists could predict who would develop MOF.

A number of prospective randomized trials were performed in the 1990s to test whether supernormal resuscitation truly reduced mortality in critically ill patients [6]. The results of these studies were varied and suggested that there are subgroups of patients who do benefit from this strategy. Benefits of hemodynamic optimization were most readily observed in acutely ill patients who had not succumbed to end-organ failure.

In the late 1990s at the University of Texas Houston Medical School, a team of surgical intensivists collaborated with bioengineers and health information experts to further refine the logic for traumatic shock resuscitation and implemented it with a computerized clinical decision support application [7]. Figure 1 represents an overview of this protocol. Patients meeting specific criteria (evidence of major torso trauma, evidence of shock as documented by base deficit >6 mEq, and anticipated blood transfusions >6 units in 12 hours) had PA and peripheral artery catheters inserted upon ICU arrival. They were resuscitated to a DO2 goal of 600 ml/min/m2 with a series of escalating interventions to achieve this goal in nonresponders. This became the standard of care in the shock trauma ICU at the Memorial Hermann Hospital in Houston, Texas. The protocol provided a unique opportunity to prospectively collect data on how patients responded to interventions and to further refine the existing protocol to optimize resuscitation.

Figure 1
figure 1

Overview of the resuscitation protocol. ABG, arterial blood gas; art, arterial; BD, base deficit; CI, cardiac index; DO2, oxygen delivery; Hb, hemoglobin; ICU, intensive care unit; LR, lactated Ringer's solution; NG, nasogastric; PA, pulmonary artery; PCWP, pulmonary wedge pressure; PRBC, packed red blood cells; PrCO2, regional carbon dioxide tension measured by gastric tonometry. Reproduced with permission from [7].

This protocol also provided the opportunity to test the utility of various monitors in this process of care. One such monitor was StO2. To evaluate skeletal and subcutaneous StO2 changes as surrogates for DO2 I changes and to compare these variables with other commonly used indices of shock resuscitation, we conducted a prospective study using StO2 monitors in shock resuscitation [8]. Figure 2a, b represents the variables tracked over the first 24 hours of ICU admission. These included at 6 mm (subcutaneous), StO2 at StO2 20 mm (skeletal muscle), mixed venous hemoglobin oxygen saturation (SvO2) (derived from the PA catheter), and serial lactate levels and base deficit levels (both obtained from serial blood testing). These variables were monitored simultaneously in severely injured patients undergoing protocol-directed shock resuscitation. Upon arrival in the ICU, DO2 averaged approximately 400 ml/min/m2 and was driven by the protocol intensivists to a maximum of roughly 700 ml/min/m2 by 24 hours. Throughout this resuscitation, skeletal muscle StO2 (at 20 mm) appears to be quite responsive to changes in systemic DO2. Changes in DO2 resulted in a predictable decrease in lactate and base deficit levels, signifying effective shock resuscitation. Subcutaneous (at 6 mm) was generally unresponsive to the StO2 resuscitation intervention, while SvO2 derived from the PA catheter shows only a small rise from roughly 70 to 78% during the resuscitation process. Changes in StO2 (20 mm) showed a strong correlation with changes in DO2, base deficit, and lactate (r = 0.95 vs. 0.83 vs. 0.82, respectively) but only modest correlation with SvO2 (r = 0.55).

Figure 2
figure 2

Shock resuscitation variables during shock resuscitation (first 24 hours) and the following 12 hours. (a) Tissue hemoglobin oxygen saturation (StO2), deltoid skeletal muscle and subcutaneous StO2 saturation, monitored non-invasively using a prototype near-infrared spectrometer (Biospectrometer-NB Oximeter; Hutchinson Technology, Inc., Hutchinson, MN, USA). Do2 I, systemic oxygen delivery index. (b) Mixed venous hemoglobin oxygen saturation (SvO2) monitored invasively using a pulmonary artery catheter with fiberoptic oximetry capability. BD, base deficit; lactate, serum lactate concentration. Reproduced with permission from [8].

The observation that the StO2 is an index of profusion that tracks DO2 during active resuscitation led laboratory investigators to investigate the role of StO2 monitors in the setting of hemorrhagic shock. Greg Beilman and colleagues at the University of Minnesota looked at the use of StO2 as an early determinate of irreversible shock [9]. Monitored pigs were subjected to a hemorrhagic shock protocol involving removal of 35% of the pig's blood volume over a 90-minute period. Resuscitation was done in a stepwise fashion, with administration of a 20 ml/kg bolus of lactated Ringer's solution every 30 minutes, for a total of four boluses.

Eighteen out of 20 animals survived 90 minutes of hemorrhagic shock: 12 of the animals survived resuscitation (resuscitatable) and six animals developed irreversible shock (nonresuscitatable). Hemodynamic and NIRS measurements were compared between the groups (resuscitatable vs. nonresuscitatable) at each step of resuscitation. All animals had a decrease in cardiac output, SvO2 and DO2 and an increase in lactate. A decrease in skeletal muscle, liver and stomach StO2 was also observed. Beyond 30 minutes of resuscitation, reversible shock patients were seen to have a steady increase in cardiac output, while irreversible shock patients demonstrated a steady decrease. More notably, the drop in skeletal StO2 was significantly greater in animals who did not survive resuscitation. Measurements of hind limb StO2 in each group diverged within 30 minutes of shock, such that by the end of the 90-minute period the StO2 value for the nonresuscitatable group remained low despite resuscitation. Animals destined to survive shock and resuscitation did not exhibit an irreversible decline in StO2. These findings demonstrate skeletal StO2 as a reliable, non-invasive means for early differentiation between resuscitatable and nonresuscitatable animals.

Another investigative group from the University of Miami, led by Stephen Cohn, was also interested in the use of non-invasive StO2 to guide fluid resuscitation after traumatic shock. They evaluated three resuscitative strategies in a series of three in vivo hemorrhagic shock models with or without a simultaneous penetrating femur injury [10]. After a 30-minute shock period, animals were randomized to receive no resuscitation, to receive 15 ml/kg Hextend or to receive shed blood + 20 ml/kg lactated Ringer's solution. Serial lactate levels and serial base deficit levels were used to identify the best response to resuscitation. Of the three interventions, Hextend had the best clearance of base deficit and lactate levels over the ensuing 150 minutes of observation. SvO2 (derived from an invasive PA catheter) also identified colloid resuscitation with Hextend as an effective resuscitative strategy within 30 minutes of resuscitation. Similarly, hind limb StO2 (a non-invasive monitor) indicated enhanced resuscitation in response to Hextend.

Taken together, these clinical and research data suggest that (derived from a non-invasive monitor) could provide StO2 information about the effectiveness of resuscitation equivalent to that of an invasive PA catheter or serial blood draws to measure base deficit or lactate levels.

Predicting outcomes

In the late 1980s, Jim Davis and his colleagues from San Diego popularized early routine collection of the base deficit in trauma patients to evaluate for possible shock and to guide ensuing volume resuscitation [11]. In subsequent publications they demonstrated that the admission base deficit in trauma patient predicts transfusion requirements, risk of complications and mortality [12]. Interestingly, Sauaia and colleagues - who were interested in identifying early predictors of postinjury MOF - identified the ED base deficit as the earliest independent predictor of MOF [13]. This observation was validated in a second study from the same group published in the late 1990s [14]. These data indicated that the initial shock insult in a trauma patient is an important determinate of adverse outcomes, particularly the development of MOF.

With this in mind, Cohn and colleagues decided to perform a study using StO2 monitoring in the emergency room to determine whether it could predict MOF [15]. They performed a prospective observational study involving seven US trauma centers over a 16-month time period, ending in 2006. They proposed that thenar StO2 and base deficit could equally predict MOF and death in major torso trauma patients presenting in shock. Entry criteria included major torso trauma (excluding severe head injury), ED shock (systolic blood pressure <90 mmHg or base deficit ≥6 mEq/l), and requirement of a blood transfusion. The StO2 monitor was placed within 30 minutes of arrival in patients meeting the inclusion criteria. Data collection included demographics (age, gender, mechanism injury, injury severity score (ISS)), continuous StO2 monitoring for the first 24 hours and routine shock and resuscitation parameters. They looked at MOF and death as their primary outcomes. There were 381 study patients enrolled, predominantly males, with a high ISS of 28 ± 15. Two-thirds of patients sustained blunt mechanism injury, most arrived in severe shock as documented by admission systolic blood pressure of 84 ± 22 mmHg, heart rate of 120 ± 23 beats/minute and ED base deficit of 9 ± 5 mEq/l, and they received on average 8 ± 7 units of packed red cells within the first 6 hours.

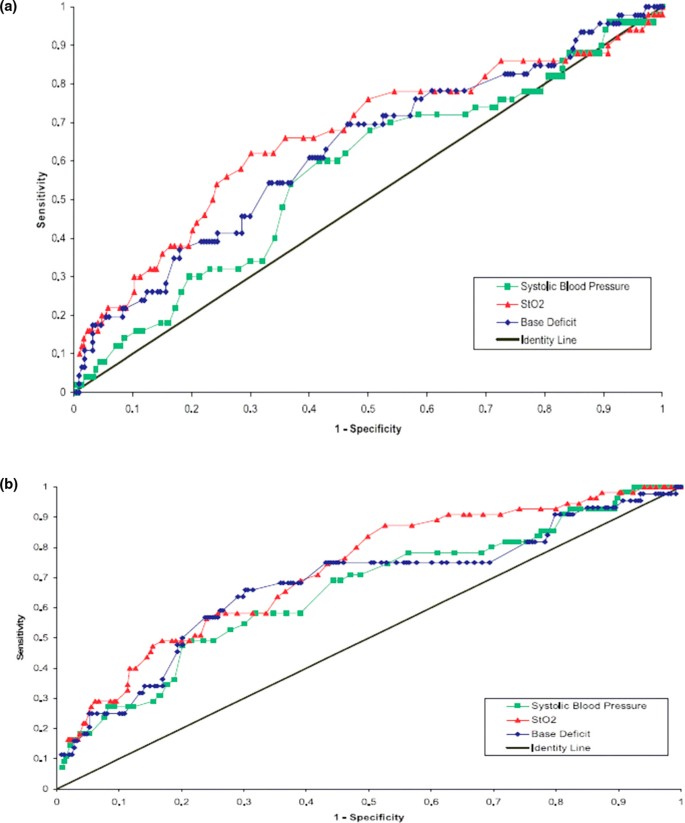

Figure 3a depicts the receiver operator curve for the ability of StO2 base deficit and systolic blood pressure to predict the MOF outcome. MOF occurred in 50 out of the 381 cases and it appeared that StO2 performed equally as well as base deficit and systolic blood pressure, with an area under the curve of 0.66, 0.63 and 0.57, respectively. Figure 3b depicts the receiver operator curve for the endpoint of death. There were 55 deaths out of 381 study patients, and it appeared that StO2 outperformed base deficit and systolic blood pressure in predicting this outcome with an area under the curve of 0.72 versus 0.67 versus 0.66, respectively [15].

Figure 3
figure 3

Physiologic parameters relative to multiple organ dysfunction syndrome and mortality. Receiver operating characteristic curves for physiologic parameters relative to (a) multiple organ dysfunction syndrome and (b) mortality within 1 hour of emergency department arrival. Skeletal muscle tissue hemoglobin saturation (StO2) monitored non-invasively using a prototype near-infrared spectrometer (InSpectra Tissue Spectrometer; Hutchinson Technology, Inc., Hutchinson, MN, USA). BD, base deficit; SBP, systolic blood pressure. Reproduced with permission from [15].

When these data were presented at the 2006 annual meeting of the American Association for the Surgery for Trauma, one question asked was whether StO2 measurements compared with lactate levels as a predictor of MOF and mortality. With this question in mind, the study database was re-analyzed to identify patients who had lactate and StO2 measured in the first hour [16]. In this subgroup analysis, 151 patients had a documented lactate level. Twenty-seven of these patients developed MOF. The corresponding StO2 levels had a predictive power that was equivalent to lactate levels, with an area under the curve of 0.64 versus 0.65, respectively. Looking at death as a primary endpoint, 26 deaths occurred in this cohort and again StO2 as a predictor outperformed lactate in predicting death, with an area under the curve of 0.77 versus 0.71 [16].

From these data we conclude that StO2 obtained within the first hour after ED admission is an equally reliable predictor of adverse outcomes when compared with the more conventionally used parameters of lactate and base deficit. StO2, however, is obtained non-invasively and continuously.

This allows the clinician to quickly identify patients in shock, who are at high risk for adverse outcomes and to assess adequacy and response to resuscitation.

Improving the understanding of epidemiology of massive transfusion

In the 1980s US trauma surgeons witnessed tremendous advances in trauma care, including trauma system development, advanced trauma life support, damage control resuscitation and goal-orientated ICU resuscitation. With these advances in trauma care, there was a reduction in patients who bled to death on the operating room table. The cohort of patients with severe bleeding who survived long enough to be admitted into an ICU, however, were at high risk of developing abdominal compartment syndrome (ACS), which emerged in epidemic proportions in the mid 1990s.

To better understand this new syndrome, Zsolt Balogh (a visiting research fellow and Hungarian trauma surgeon) analyzed the prospective shock resuscitation database that was maintained by the University of Texas at Houston trauma research center. He performed a series of four database analyses that tremendously improved our understanding of the pathophysiology of ACS and its relationship to MOF [1721]. Using prediction models, Balogh could accurately predict who was going to develop ACS within 3 hours of arriving in the ED. He showed that conventional use of high-volume isotonic crystalloids to normalize blood pressure in the ED were harmful to this subgroup of patients, leading to hemodilution and promoting further bleeding. Once these high-risk patients arrive in the ICU, they have significant intra-abdominal hypertension - with mean urinary bladder pressures ≥19 mmHg.

A popular belief at the time was that patients with high intra-abdominal pressure (which falsely elevates central venous pressure) and low cardiac output should be volume loaded to increase preload and thereby optimize cardiac output. Balogh's studies, however, nicely demonstrated this is exactly the wrong thing to do in patients with impending ACS. These patients have low cardiac output and high systemic vascular resistance. Additional increases in pre-load with isotonic crystalloid boluses do not increase cardiac output; instead, vigorous volume loading pushes them into full-blown ACS. Balogh also demonstrated that reducing the DO2 goal of the ICU resuscitation protocol from a supranormal level of 600 ml/min/m2 to a more normal level of 500 ml/min/m2 was associated with a significant reduction in the incidence of ACS, MOF and death. From these data it was concluded that ACS was the result of early (in the ED) administration of inordinate amounts of crystalloids and that fundamental changes in the early care of patients with severe hemorrhage were necessary.

Trauma surgeons at the University of Texas at Houston and the Memorial Hermann Hospital then focused their efforts on developing new pre-ICU care protocols, including ED resuscitation, a MT protocol, whole-body CT scanning, a pelvic fracture protocol, and the Focused Assessment with Sonography for Trauma (FAST) examination with backup peritoneal aspirate. Out of these protocols, the most significant impact on patient outcome was presented with the MT protocol. Gonzalez and colleagues performed a retrospective analysis of the shock resuscitation database to evaluate the existing MT protocol. MT was defined as >10 units of packed red blood cells in 24 hours [22]. This analysis identified that patients arrived in the ICU with irreversible coagulopathy despite adherence to the existing MT protocol. This coagulopathy persisted as the patient went on to require substantial blood transfusion. The admission International Normalized Ratio was highly correlated with subsequent mortality, and the investigators concluded that fresh frozen plasma should be used earlier and more aggressively in the ED for patients that required a MT. They proposed that fresh frozen plasma (FFP) and packed red blood cells be used at a ratio of 1:1.

John Holcomb, who developed the original MT protocol at Memorial Hermann Hospital, was also an advocate for the use of activated factor VII in damage-control patients [23], and subsequently further expanded this concept when he became the Commander of the US Army Institute of Surgical Research in San Antonio. He and his colleagues developed a new concept of damage control resuscitation, which emphasizes direct treatment of coagulopathy in trauma during initial resuscitative efforts [24]. The primary goals of this strategy were early use of FFP, activated recombinant factor VII and fresh whole blood when available and to pursue hypotensive resuscitation until hemorrhage is definitively controlled. This concept has been used in the current conflicts in Afghanistan and Iraq. The data emerging from those conflicts suggest that this approach reduces mortality in patients sustaining serious torso and limb trauma.

While these strategies are all very enticing, a central question emerged when faced with the clinical quandary of a patient with an unstable pelvic fracture who is in obvious shock: how much time does the clinician have to make these critical decisions? When do you initiate aggressive FFP administration or administer factor VII? After initial resuscitation, does the clinician triage the patient to the CT scanner, to the operating room or wait for the angiographers to come in to embolize potential pelvic bleeder? To answer these questions, a retrospective analysis of the StO2 database was conducted [25]. The specific aims of the analysis were: to define the current epidemiology of MT, which includes documenting early temporal events and confirming the association of MT with bad outcomes, including MOF and death; and, secondly, to determine feasibility of the early prediction of MT and the potential role of StO2 in these prediction models.

In this 16-month observational study, there were 381 patients who met entry criteria; 114 (30%) received MT (defined as >10 units in the first 24 hours). The MT cohort versus the non-MT cohort had similar demographics, but the patients who received a MT had a notably higher ISS (32 ± 17 vs. 26 ± 15). Analysis of the data also showed that the MT patients arrived hypothermic, were in severe shock and were notably coagulopathic. Their initial International Normalized Ratio was 1.7 ± 1.4. Comparing baseline characteristics between the two cohorts, all variables with the exception of temperature were significantly less deranged in the non-MT cohort. These data demonstrated that, upon arrival, MT patients are different from non-MT patients. They have higher ISS, they have more severe shock and they are severely coagulopathic prior to aggressive inhospital resuscitation. Most notably, MT is a very rapid process of care; 40% of the patients met the threshold of 10 units within 2 hours and 80% met the threshold within 6 hours. By 6 hours the MT cohort had received on average 20 units of packed red blood cells. Looking at time to death in the first 24 hours, there were 26 early deaths in the MT cohort, of which two-thirds occurred within the first 6 hours. These data emphasize that critical decisions must be made in a limited amount of time.

Assessment of clinical outcomes such as ICU-free days, vent-free days, hospital days, and percentages of death and MOF showed that MT patients have longer ICU stays and spend more time on mechanical ventilators. The mortality rate for MT patients was 33%; the incidence of MOF was 31%, and 50% of patients had the combined outcome of MOF and death. When you compare these outcomes with the non-MT patients, it is clear that MT patients have much worse outcomes. We were also interested in identifying the early predictors of bad outcome (MOF/death). Using univariate analysis comparing good outcome versus bad outcome, a number of variables were identified. We then chose P < 0.15 between the two groups to identify variables to be placed into three multivariate models using data available 1 hour, 2 hours and 3 hours after their trauma center arrival [26]. The purpose of this analysis was to identify a specific variable that could help the clinicians make critical decisions. More specifically, for patients in whom it is decided to initiate a MT, to determine which variables would tell you that a specific patient was at high risk of dying and therefore would warrant the use of a potentially harmful intervention such as activated factor VIIa. In the 1-hour, 2-hour and 3-hour models two variables fell out: injury severity score >25 at 1 hour and 2 hours, and the StO2 value in the 1-hour, 2-hour and 3-hour models. StO2 is therefore a good variable to help identify the patient who is going to die.

Given the amount of controversy that currently exists over the management of MT and the need for a clinical trial to address the potential role of aggressive early FFP analysis, we performed a second follow-up analysis of the StO2 database with a focused study on the "MT died early" cohort [26]. We looked at the 114 patients who received a MT and divided them into three groups: G1 was the 27 early deaths, G2 included 31 patients who developed MOF or died late, and G3 was the remaining 50 patients who had a MT but did not die.

Looking at the number of packed red blood cells over the first 6 hours for the various groups, the G1 MT died early group received 26.4 units of packed red blood cells but only 6.5 units of FFP. Considering the bloody vicious cycle pathophysiology and comparing the three groups for temperature, acidosis and coagulopathy, the G1 group had more deranged physiology. This group was severely acidotic and coagulopathic in comparison with G2 and G3. Interestingly, the coagulopathy in G1 was noted to worsen over the first 3 hours; the MT died early patients arrived with a significantly higher International Normalized Ratio of 2.4, which increased to 3.8. Consequently, approximately 70% of these patients bled to death during a time period corresponding to their worsening coagulopathy [26]. From these data we conclude that this subgroup of patients arrived with coagulopathy, received an ordinary amount of packed red blood cells (that is, 26.4 units) but received only 6.5 units of FFP, and therefore their coagulopathy was not treated.

When we look at the shock parameters (Figure 4) of systolic blood pressure, base deficit and StO2, the major observation is that StO2 is very different in this cohort of patients who were dying early. StO2 measurements dropped steadily from 70 to 50% as they died early from exsanguination. We therefore concluded that, in the setting of MT, a dropping StO2 portends early death from exsanguination.

Figure 4
figure 4

Shock indices over the first 6 hours of hospitalization. G1, massive transfusion (MT) and dies in ≤24 hours; G2, MT and dies in >24 hours and/or multiple organ failure (MOF); G3, MT and survived without MOF. P-values reported for the group and hour from trauma center (TC) arrival factor and the interaction term. SBP, systolic blood pressure; StO2, tissue hemoglobin oxygen saturation. Reproduced with permission from [26].


In our ongoing experience, NIRS or StO2 monitoring offers a continuous non-invasive monitor of hypoperfusion. In early clinical testing during active shock resuscitation, changes in skeletal muscle StO2 correlated well with changes in DO2, base deficit and lactate levels. This clinical experience in active shock resuscitation has likewise been verified in laboratory studies. In a prospective clinical trial of StO2 monitoring obtained within the first hour after ED admission of major torso trauma patients who were presumed to be bleeding, the StO2 value predicted death and MOF as well as or perhaps better than base deficit and lactate levels [15].

Additionally, in the setting of MT we observed that a drop in StO2 portends early death from exsanguination [25, 26] and may be helpful in making critical decisions.



abdominal compartment syndrome


computerized tomography


oxygen delivery


emergency department


fresh frozen plasma


intensive care unit


injury severity score


multiple organ failure


massive transfusion


near-infrared spectroscopy


pulmonary artery


tissue hemoglobin oxygen saturation


mixed venous hemoglobin oxygen saturation.
