- Open Access
A comparison of admission and worst 24-hour Acute Physiology and Chronic Health Evaluation II scores in predicting hospital mortality: a retrospective cohort study
Critical Care volume 10, Article number: R4 (2005)
The Acute Physiology and Chronic Health Evaluation (APACHE) II score is widely used in the intensive care unit (ICU) as a scoring system for research and clinical audit purposes. Physiological data for calculation of the APACHE II score are derived from the worst values in the first 24 hours after admission to the ICU. The collection of physiological data on admission only is probably logistically easier, and this approach is used by some ICUs. This study compares the performance of APACHE II scores calculated using admission data with those obtained from the worst values in the first 24 hours.
Materials and Methods
This was a retrospective cohort study using prospectively collected data from a tertiary ICU. There were no missing physiological data and follow-up for mortality was available for all patients in the database. The admission and the worst 24-hour physiological variables were used to generate the admission APACHE II score and the worst 24-hour APACHE II score, and the corresponding predicted mortality, respectively.

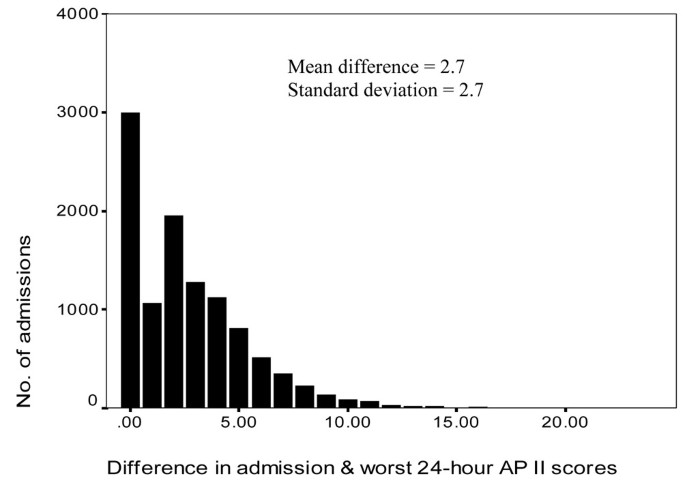

There were 11,107 noncardiac surgery ICU admissions during 11 years from 1 January 1993 to 31 December 2003. The mean admission and the worst 24-hour APACHE II score were 12.7 and 15.4, and the derived predicted mortality estimates were 15.5% and 19.3%, respectively. The actual hospital mortality was 16.3%. The overall discrimination ability, as measured by the area under the receiver operating characteristic curve, of the admission APACHE II model (83.8%, 95% confidence interval = 82.9–84.7) and the worst 24-hour APACHE II model (84.6%, 95% confidence interval = 83.7–85.5) was not significantly different (P = 1.00).
Substitution of the worst 24-hour physiological variables with the admission physiological variables to calculate the admission APACHE II score maintains the overall discrimination ability of the traditional APACHE II model. The admission APACHE II model represents a potential alternative model to the worst 24-hour APACHE II model in critically ill nontrauma patients.
Scoring systems such as Acute Physiology and Chronic Health Evaluation (APACHE), the Therapeutic Intervention Scoring System, and Mortality Probability Models (MPM) have been developed and used as quality assurance tools and for risk stratification in research involving critically ill patients [1, 2]. Each scoring system has its own strengths and weaknesses, and the choice depends on the system's ease of use and goodness of fit for that particular intensive care unit (ICU) or patient group.
The traditional APACHE II model utilises the worst values of 12 physiological variables during the first 24 hours following ICU admission, along with an evaluation of the patient's chronic health and admission diagnosis to calculate the APACHE II predicted mortality . The APACHE II model has been widely validated and used by many ICUs to classify the severity of illness and to predict hospital mortality [2, 4–7]. APACHE II has now been modified to APACHE III; however, some studies have shown that APACHE III may underestimate the number of deaths [8, 9]. Although the APACHE II model is quite old, and other scoring systems have been developed using more recent cohorts, APACHE II is still widely used for research and clinical audit purposes. APACHE II is easier to use than APACHE III and has been in use for a long period, which allows consistency [2, 10].
A potential problem with these methods is that the worst 24-hour physiological data used to derive APACHE II scores and APACHE III scores can be treatment-dependent and therefore it may reflect poor clinical management rather than sicker patients [11–13]. Collection of the admission physiological variables rather than the worst 24-hour physiological variables is a standard practice in some ICUs to calculate the APACHE II predicted mortality, and may theoretically overcome this potential problem [14, 15]. The use of only admission physiological variables may make data collection easier as the data collector does not need to peruse all the blood tests and physiological variables over 24 hours to work out the worst score. However, the performance of APACHE II scores using admission data has not been thoroughly assessed [3, 16].
When the APACHE III scoring system was developed, the effect of using admission physiological variables rather than the worst 24-hour physiological variables was assessed. The absolute difference between the mean scores, derived from the admission and worst 24-hour physiological data, was not statistically significantly different from zero . However, the proportion of missing values favoured the worst 24-hour values over the admission values, as did the maximum explanatory power. Some other scoring systems use only admission data (MPM II0 and Simplified Acute Physiology Score [SAPS] III), and it is therefore established that scoring systems using physiological data from the time of admission to the ICU can provide valid assessment of the severity of illness and outcome prediction [17, 18].
In the present study we evaluated the performance of the APACHE II model using physiological data at the time of ICU admission with the model using data obtained from the worst values in the first 24 hours.
Materials and methods
This was a retrospective cohort study that utilised prospectively collected data. The study was conducted in the medical–surgical ICU at Royal Perth Hospital, an 800-bed university teaching hospital. The 22-bed ICU is a 'closed' ICU that admits critically ill adult patients of all specialties and is staffed by fully trained intensivists. The unit database contains de-identified information for components of the APACHE II score for physiological data collected at admission and for the worst values in the first 24 hours – admission diagnosis and source, age, ethnicity, ICU mortality and hospital mortality. The admission and the worst 24-hour physiological data were used to generate the admission APACHE II score and the worst 24-hour APACHE II score, respectively. The admission APACHE II score and the worst 24-hour APACHE II score were then used to calculate the admission APACHE II predicted mortality (admission APACHE II model) and the worst 24-hour predicted mortality (worst 24-hour APACHE II model), using the published APACHE II mortality prediction equation coefficients .
The data were collected by the duty ICU consultant on paper sheets and updated on a daily basis by the duty consultant while the patient remained in the ICU. After the patient was discharged from the ICU, the data were checked for transcription errors and completeness by a designated trained clerical staff member using data from the computerised laboratory database, going through the ICU vital signs flow chart again before the data were transferred to the computer. A total of 12 consultants were involved in collecting data, of which seven were involved throughout the study period, using a standardised data dictionary. The worst 24-hour APACHE II score was determined precisely as described by Knaus and colleagues .
Measurement of all 12 physiological variables on admission and over the first 24 hours in the ICU was mandatory in the APACHE data recording form. If the patient was anaesthetised before ICU admission, the Glasgow coma score was assessed using the available clinical information prior to anaesthesia. Acute renal failure was defined as oliguria with urine output less than 135 ml over a consecutive 8-hour period with abnormal serum creatinine concentrations over 133 μmol/l. Other than the Glasgow coma score and urinary output, pre-ICU physiological data were not used in the calculation of APACHE II scores. Arterial blood gas measurements were judged to be inappropriate in some patients, and in these patients the serum bicarbonate concentration was used to calculate the physiological score . One data custodian was responsible for ensuring data quality throughout the study period. The data were reviewed for internal consistency before annual lockdown, and there were no patients with missing physiological data or who were lost to mortality follow-up. The study utilised de-identified data only and was deemed to be a 'Clinical Audit' by the Hospital Ethics Committee and as such the need for formal ethics committee approval was waived.
The performance of the admission APACHE II model in predicting hospital mortality was compared with the performance of the worst 24-hour APACHE II model with respect to their discrimination ability and calibration. Because the original APACHE II prediction model did not include cardiac surgical patients, we have included only the data from noncardiac surgery ICU admissions. All patients in the database in the study period were considered, including those patients who died within 24 hours of ICU admission.
The discrimination ability of each of the scoring systems was assessed by the area under the receiver operating characteristic curve: above 90% was regarded as excellent, above 80% was regarded as good, and below 80% was regarded as poor in this study. Calibration was assessed by comparing absolute observed mortality with predicted mortality in fixed risk strata (for example 0–0.099, 0.1–0.199, and so on) using the Hosmer-Lemeshow chi-square H statistic. P < 0.05 in the Hosmer-Lemeshow chi-square H statistical test infers a significant departure from the null hypothesis of good calibration. The relationship between the admission APACHE II predicted hospital mortality risk and the worst 24-hour APACHE II predicted hospital mortality risk was assessed by the two-tailed Pearson correlation coefficient. The ratio of total observed to predicted mortality is the standardised mortality ratio (SMR).
The discrimination ability was further analysed for different diagnostic and patient subgroups to test the uniformity of fit of both models. The diagnostic subgroups analysed included patients with different major diagnoses such as sepsis, pneumonia, and gastrointestinal perforation or obstruction, intracranial haemorrhage, multiple trauma, cardiac arrest, and elective surgery. The patient subgroups analysed included aboriginal patients, patients transferred from another hospital, patients admitted to the ICU before or after early 1999, patients who stayed in the ICU longer than 24 hours, and patients who survived longer than 24 hours of hospitalisation. P < 0.05 was regarded as significant in all analyses and no adjustment was made for multiple comparisons in the subgroup analyses. All statistical analyses were performed by SPSS statistical software (version 11.0 for Windows; SPSS Inc., Chicago, IL, USA] and confidence intervals were generated by Confidence Interval Analysis (version 2.0.0; BMJ 2000, UK).
The time for collecting and checking the admission physiological data manually required an average of 5 minutes per patient (range, 3–7 minutes), and the average for the worst 24-hour physiological data was 20 minutes per patient (range, 10–40 minutes). The time required to work out the worst 24-hour APACHE II score was longer when more blood tests had been performed for the patient.
There were 11,107 noncardiac surgery ICU admissions in the 11-year period from 1 January 1993 to 31 December 2003. The characteristics of the ICU cohort are presented in Table 1. The difference in the admission APACHE II score and the worst 24-hour APACHE II score was small in most patients (Figure 1). The mean admission APACHE II score and the worst 24-hour APACHE II scores were 12.7 and 15.4, and the derived predicted hospital mortality estimates were 15.5% and 19.3%, respectively. The admission APACHE II predicted mortality and the worst 24-hour APACHE II predicted mortality were closely correlated (Pearson correlation coefficient = 0.955, P = 0.0001). The actual hospital mortality was 16.3%. The overall standardised mortality ratio was 1.05 (95% confidence interval [CI] = 1.00–1.10) and was 0.84 (95% CI = 0.80–0.88) using the admission APACHE II predicted mortality and the worst 24-hour APACHE II predicted mortality as the denominator, respectively.

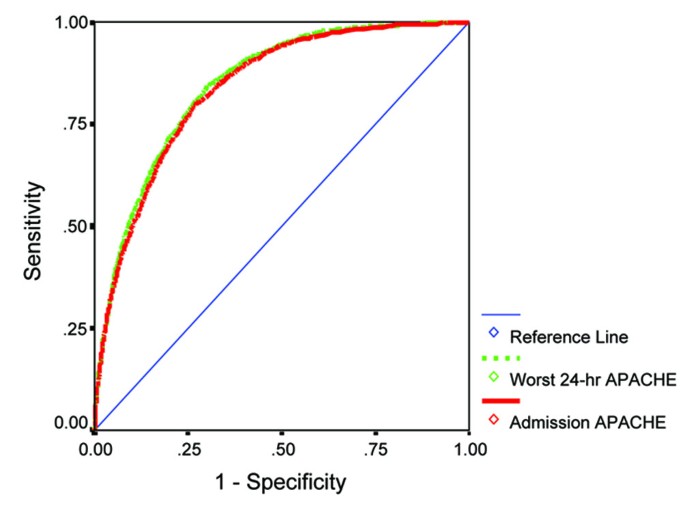

The overall discrimination abilities, as measured by the area under the receiver operating characteristic curve, of the admission APACHE II model (83.8%, 95% CI = 82.9–84.7) and the worst 24-hour APACHE II model (84.6%, 95% CI = 83.7–85.5) with the entire cohort were not significantly different (P = 1.00) (Figure 2). The discrimination abilities of the admission APACHE II model and the worst 24-hour APACHE II model were also not significantly different within all subgroups analysed (Table 2).

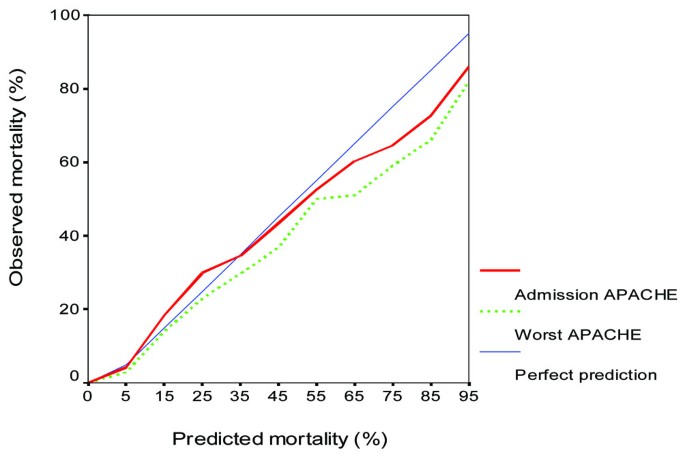

The Hosmer and Lemeshow goodness of fit chi-square H statistic was 66.7 for the admission APACHE II model and was 189.3 for the worst 24-hour APACHE II model indicating a better fit for the admission APACHE II model but both P values were very small (P < 0.0001). The calibration curve of the two APACHE II models is displayed in Figure 3 and shows the better fit of the admission APACHE II model especially in the high risk strata. The overall correct classification rate (based on classifying a patient to die if his/her predicted mortality risk exceeded 50%) for the admission APACHE II model and the worst 24-hour APACHE II model were both 85.4% (Table 3).
The advantages of the admission APACHE II model
Our results showed that the performance of the admission APACHE II model is no worse than the traditional worst 24-hour APACHE II model when there are no significant missing data. These results were consistent with the results of other studies that assessed or utilised the admission APACHE II score to calculate the APACHE II predicted mortality [15–17].
The use of the admission APACHE II score to calculate the APACHE II predicted mortality (admission APACHE II model) has a few potential advantages and may represent a viable alternative to the traditional APACHE II model. First, it can assess the risk of hospital death at ICU admission, as in the MPM II0 and SAPS III scoring systems that assess the risk of hospital death at ICU admission [17, 18]. The admission APACHE II model also shares these systems' advantages of ease of use, and, since they are independent of ICU treatment, may be more applicable for risk stratification in clinical research and triage decisions . The ability of a scoring system to stratify patient risk on admission to the ICU may facilitate stratification of patients into trials that assess early interventions in critically ill patients.
Second, the data collection for the admission APACHE II model is less laborious than the worst 24-hour APACHE II model, as demonstrated in our data. It may also reduce errors because it does not require perusal of a series of values to obtain the worst score. Nevertheless, this potential advantage is important only when a computerised information system is not available and the data are collected manually.
Finally, poor calibration with the worst 24-hour APACHE II model has been reported in many studies [20–22]. Our results confirmed this problem of the worst 24-hour APACHE II model, with the predicted mortality being much higher than the actual mortality in the high-risk strata. The admission APACHE II model appeared to have reduced the overestimation of mortality in the high-risk strata and improved the calibration of the APACHE II model in the present study. However, data on calibration of the admission APACHE II model from other studies are lacking [15–17] and further studies in other settings will be needed to confirm this finding.
Limitations of the admission APACHE II model
The admission APACHE II model is a minor modification of the worst 24-hour APACHE II model and retains many intrinsic weaknesses and problems of the worst 24-hour APACHE II model. These weaknesses include errors arising from imprecise principal diagnosis, lead time bias, and poor uniformity of fit of the model. The admission APACHE II model, as with other ICU scoring systems such as the APACHE III model, needs an accurate diagnosis to accurately predict the hospital mortality. The admission APACHE II model does not eliminate this requirement.
The performance of the worst 24-hour APACHE II model is affected by the source and timing of patient referral to the ICU, and it tends to underestimate the mortality of the patients referred from other ICUs or hospitals [23, 24]. Our results were different from these reports. This may be because many patients were transferred from remote Western Australia and were not fully resuscitated when they were admitted to the ICU. The standardised mortality ratio of the patients transferred from other hospitals, based on the admission APACHE II model in this study, was closer to unity than that of the worst 24-hour APACHE II model (Table 2). The admission APACHE II model was associated with a lower lead time bias in this study. The uniformity of fit in the discrimination ability of the admission APACHE II model and the worst 24-hour APACHE II model was similarly poor in patients with sepsis, pneumonia, gastrointestinal perforation, and cardiac arrest, and also in the aboriginal patients. Both the worst 24-hour APACHE II model and the APACHE III model were not well calibrated in predicting mortality in trauma patients [23, 25, 26]. Our results confirmed this problem of the worst 24-hour APACHE II model, and the admission APACHE II model did not improve the performance of the worst 24-hour APACHE II model in this subgroup of patients.
Limitations of the study
This was a single-centre study and these results may not be generalisable to other ICUs . Our observation that the standardised mortality ratio calculated with the admission physiological variables was closer to unity than that calculated with the worst 24-hour values may be different in other units. Further evaluation of the admission APACHE II model in other ICUs is essential.
Also, this study did not directly compare the admission APACHE II model with other scoring systems that assess the risk of hospital mortality at ICU admission such as the MPM II0 and SAPS III models [17, 18]. Whether the performance of the admission APACHE II model is comparable with these scoring systems remains uncertain and will be further investigated.
Critical illness is a dynamic process and therefore outcome prediction based on a single time point such as ICU admission, as in the admission APACHE II model, does not consider changes in patients' clinical status over time and their response to treatment. Serial predictions over a period of time, as in the APACHE III model, may improve prediction accuracy and clinical utilities, although acquiring these data continuously will be difficult in practice [27, 28].
Finally, the admission APACHE II model, as with most other outcome prediction models, does not consider functional outcomes beyond survival .
In conclusion, substituting the worst 24-hour physiological variables with the admission physiological variables to calculate the admission APACHE II score and the APACHE II predicted mortality does not result in significantly worse calibration or discrimination compared with the traditional APACHE II model. The admission APACHE II model represents a potential alternative model to the worst 24-hour APACHE II model in critically ill nontrauma patients.
Modifying the APACHE II model using admission physiological variables instead of worst 24-hour physiological variables to calculate the APACHE II score and predicted mortality (admission APACHE II model) does not result in significantly worse calibration and discrimination compared with the traditional APACHE II model in critically ill nontrauma patients.
Acute Physiology and Chronic Health Evaluation
intensive care unit
Mortality Probability Models
Simplified Acute Physiology Score.
Knaus WA: APACHE 1978–2001: the development of a quality assurance system based on prognosis: milestones and personal reflections. Arch Surg 2002, 137: 37-41. 10.1001/archsurg.137.1.37
Gunning K, Rowan K: ABC of intensive care: outcome data and scoring systems. BMJ 1999, 319: 241-244.
Knaus WA, Draper EA, Wagner DP, Zimmerman JE: APACHE II: a severity of disease classification system. Crit Care Med 1985, 13: 818-829.
Oh TE, Hutchinson R, Short S, Buckley T, Lin E, Leung D: Verification of the Acute Physiology and Chronic Health Evaluation scoring system in a Hong Kong intensive care unit. Crit Care Med 1993, 21: 698-705.
Livingston BM, MacKirdy FN, Howie JC, Jones R, Norrie JD: Assessment of the performance of five intensive care scoring models within a large Scottish database. Crit Care Med 2000, 28: 1820-1827. 10.1097/00003246-200006000-00023
Breen D, Churches T, Hawker F, Torzillo PJ: Acute respiratory failure secondary to chronic obstructive pulmonary disease treated in the intensive care unit: a long term follow up study. Thorax 2002, 57: 29-33. 10.1136/thorax.57.1.29
Rowan KM, Kerr JH, Major E, McPherson K, Short A, Vessey MP: Intensive Care Society's Acute Physiology and Chronic Health Evaluation (APACHE II) study in Britain and Ireland: a prospective, multicenter, cohort study comparing two methods for predicting outcome for adult intensive care patients. Crit Care Med 1994, 22: 1392-1401.
Buist M, Gould T, Hagley S, Webb R: An analysis of excess mortality not predicted to occur by APACHE III in an Australian level III intensive care unit. Anaesth Intensive Care 2000, 28: 171-177.
Angus DC: Scoring system fatigue...and the search for a way forward. Crit Care Med 2000, 28: 2145-2146. 10.1097/00003246-200006000-00088
Konarzewski W: Continuing to use APACHE II scores ensures consistency. BMJ 2000, 321: 383-384. 10.1136/bmj.321.7257.383
Shann F: Mortality prediction model is preferable to APACHE. BMJ 2000, 320: 714. 10.1136/bmj.320.7236.714
Boyd O, Grounds RM: Physiological scoring systems and audit. Lancet 1993, 341: 1573-1574. 10.1016/0140-6736(93)90706-M
Knaus W, Draper E, Wagner D: APACHE III study design: analytic plan for evaluation of severity and outcome in intensive care unit patients. Introduction. Crit Care Med 1989, 17: S176-S180.
Khilnani G, Banga A, Sharma S: Predictors of mortality of patients with acute respiratory failure secondary to chronic obstructive pulmonary disease admitted to an intensive care unit: a one year study. BMC Pulm Med 2004, 4: 12. it is a full article but no page span because it does not have printed version, only Internet version 10.1186/1471-2466-4-12
Goel A, Pinckney RG, Littenberg B: APACHE II predicts long-term survival in COPD patients admitted to a general medical ward. J Gen Intern Med 2003, 18: 824-830. 10.1046/j.1525-1497.2003.20615.x
Knaus WA, Wagner DP, Draper EA, Zimmerman JE, Bergner M, Bastos PG, Sirio CA, Murphy DJ, Lotring T, Damiano A, et al.: APACHE III prognostic system. Risk prediction of hospital mortality for critically ill hospitalized adults. Chest 1991, 100: 1619-1636.
Metnitz PG, Moreno RP, Almeida E, Jordan B, Bauer P, Campos RA, Iapichino G, Edbrooke D, Capuzzo M, Le Gall JR, on behalf of the SAPS 3 Investigators: SAPS 3-From evaluation of the patient to evaluation of the intensive care unit. Part 1: Objectives, methods and cohort description. Intensive Care Med 2005, 31: 1336-1344. 10.1007/s00134-005-2762-6
Lemeshow S, Teres D, Klar J, Avrunin JS, Gehlbach SH, Rapoport J: Mortality Probability Models (MPM II) based on an international cohort of intensive care unit patients. JAMA 1993, 270: 2478-2486. 10.1001/jama.270.20.2478
Joynt GM, Gomersall CD, Tan P, Lee A, Cheng CA, Wong EL: Prospective evaluation of patients refused admission to an intensive care unit: triage, futility and outcome. Intensive Care Med 2001, 27: 1459-1465. 10.1007/s001340101041
Carson SS, Bach PB: Predicting mortality in patients suffering from prolonged critical illness: an assessment of four severity-of-illness measures. Chest 2001, 120: 928-933. 10.1378/chest.120.3.928
Tan IK: APACHE II and SAPS II are poorly calibrated in a Hong Kong intensive care unit. Ann Acad Med Singapore 1998, 27: 318-322.
Arabi Y, Al Shirawi N, Memish Z, Venkatesh S, Al-Shimemeri A: Assessment of six mortality prediction models in patients admitted with severe sepsis and septic shock to the intensive care unit: a prospective cohort study. Crit Care 2003, 7: R116-R122. 10.1186/cc2373
Cowen JS, Kelly MA: Errors and bias in using predictive scoring systems. Crit Care Clin 1994, 10: 53-72.
Combes A, Luyt CE, Trouillet JL, Chastre J, Gibert C: Adverse effect on a referral intensive care unit's performance of accepting patients transferred from another intensive care unit. Crit Care Med 2005, 33: 705-710. 10.1097/01.CCM.0000158518.32730.C5
Zimmerman JE, Wagner DP, Draper EA, Wright L, Alzola C, Knaus WA: Evaluation of acute physiology and chronic health evaluation III predictions of hospital mortality in an independent database. Crit Care Med 1998, 26: 1317-1326. 10.1097/00003246-199808000-00012
Chawda MN, Hildebrand F, Pape HC, Giannoudis PV: Predicting outcome after multiple trauma: which scoring system? Injury 2004, 35: 347-358. 10.1016/S0020-1383(03)00140-2
Afessa B, Keegan MT, Mohammad Z, Finkielman JD, Peters SG: Identifying potentially ineffective care in the sickest critically ill patients on the third ICU day. Chest 2004, 126: 1905-1909. 10.1378/chest.126.6.1905
Wagner DP, Knaus WA, Harrell FE, Zimmerman JE, Watts C: Daily prognostic estimates for critically ill adults in intensive care units: results from a prospective, multicenter, inception cohort analysis. Crit Care Med 1994, 22: 1359-1372.
The authors would like to thank Dr Geoffrey Clarke and Dr John Weekes for their part in initiating the Royal Perth Hospital ICU database, and thank all ICU consultants who have been recording APACHE II data for every admission to the ICU. This study was solely funded by the Department of Intensive Care, Royal Perth Hospital.
The authors declare that they have no competing interests.
KMH performed the statistical analysis and drafted the manuscript. GJD initiated the original idea of the study and helped to draft the manuscript. MK, JF, and SARW helped analyse the data and draft the manuscript. KYL was the data-collection quality controller and helped to draft the manuscript. All authors read and approved the final manuscript.
