Spontaneous breathing with airway pressure release ventilation favors ventilation in dependent lung regions and counters cyclic alveolar collapse in oleic-acid-induced lung injury: a randomized controlled computed tomography trial

Critical Care volume 9, Article number: R780 (2005) Cite this article

Abstract

Introduction

Experimental and clinical studies have shown a reduction in intrapulmonary shunt with spontaneous breathing during airway pressure release ventilation (APRV) in acute lung injury. This reduction was related to reduced atelectasis and increased aeration. We hypothesized that spontaneous breathing will result in better ventilation and aeration of dependent lung areas and in less cyclic collapse during the tidal breath.

Methods

In this randomized controlled experimental trial, 22 pigs with oleic-acid-induced lung injury were randomly assigned to receive APRV with or without spontaneous breathing at comparable airway pressures. Four hours after randomization, dynamic computed tomography scans of the lung were obtained in an apical slice and in a juxtadiaphragmatic transverse slice. Analyses of regional attenuation were performed separately in nondependent and dependent halves of the lungs on end-expiratory scans and end-inspiratory scans. Tidal changes were assessed as differences between inspiration and expiration of the mechanical breaths.

Results

Whereas no differences were observed in the apical slices, spontaneous breathing resulted in improved tidal ventilation of dependent lung regions (P < 0.05) and less cyclic collapse (P < 0.05) in the juxtadiaphragmatic slices. In addition, with spontaneous breathing, the end-expiratory aeration increased and nonaerated tissue decreased in dependent lung regions close to the diaphragm (P < 0.05 for the interaction ventilator mode and lung region).

Conclusion

Spontaneous breathing during APRV redistributes ventilation and aeration to dependent, usually well-perfused, lung regions close to the diaphragm, and may thereby contribute to improved arterial oxygenation. Spontaneous breathing also counters cyclic collapse, which is a risk factor for ventilation-associated lung injury.

Introduction

Spontaneous breathing in any phase of the mechanical ventilator cycle is possible during airway pressure release ventilation (APRV), a technique that provides ventilatory support by time-cycled switching between two continuous positive airway pressure levels [1–3]. Studies in patients with acute lung injury (ALI) suggest that spontaneous breathing with APRV not only reduces the need for sedation to adapt the patient to the ventilator [4], but also improves both systemic blood flow and arterial blood oxygenation when compared with controlled mechanical ventilation [4–6]. Mechanisms for improved oxygenation with spontaneous breathing during APRV include a reduction in intrapulmonary shunting and improved ventilation-perfusion matching, as demonstrated in experimental and clinical studies [6–9]. In a recent computed tomography (CT) study in pigs with oleic-acid-induced lung injury, we observed recruitment of the atelectatic lung and an increased end-expiratory lung volume (EELV) by spontaneous breathing [10]. This should reasonably contribute to reduce shunting.

Ventilation at lower EELV and/or low levels of positive end-expiratory pressure (PEEP) in the absence of spontaneous breathing may also cause cyclic opening of lung units during inspiration (tidal recruitment) and closing of lung units during expiration. Cyclic opening and closing of lung regions causes shear stress that may contribute to ventilator-induced lung injury [11].

Controlled mechanical ventilation in the supine position causes larger tidal excursions of the diaphragm in its upper, anterior part than in its dorsal segment [12]. This is due to higher abdominal pressure in the dependent regions that limits diaphragmatic movement more there than in nondependent regions [12]. On the other hand, posterior muscular sections of the diaphragm move more than the anterior tendon plate during spontaneous breathing [13]. Mechanical ventilation is consequently distributed preferentially to the anterior regions while dependent regions are favored during spontaneous breathing [12, 14]. Based on these studies [13, 15], we hypothesized that spontaneous breathing with APRV favors the distribution of intrapulmonary gas to dependent, usually well-perfused, lung regions, making them better aerated than in subjects with a passively moving diaphragm. Moreover, we assumed that with better aeration of dependent lung regions there may be less cyclic collapse (or tidal recruitment) of lung tissue. This should reduce the shear stress caused by the opening and closing of air spaces. These hypotheses were tested using dynamic (high time resolution) CT scanning of single apical and juxtadiaphragmatic lung regions during tidal ventilation in porcine oleic-acid-induced ALI.

Materials and methods

Experimental setting and protocol

The study was performed in the research laboratory of the Department of Clinical Physiology at the University Hospital of Uppsala, Sweden and was approved by the local institutional review board for animal studies. Dynamic CT scans were performed in 22 pigs with oleic-acid-induced lung injury. Pigs have also been included in a different CT study addressing effects of spontaneous breathing on end-expiratory atelectasis and lung volume using spiral CT scans of the total lung during end-expiratory clamping [10]. The present study shows regional analyses of dynamic CT scans obtained during sustained tidal ventilation as described in the following. The animal preparation has been described in detail previously [10]. Briefly, anesthesia was induced intramuscularly and maintained by infusions of 30 mg/kg/hour ketamine, 0.1 mg/kg/hour midazolam, and 1–2 μg/kg/minute remifentanil. The pigs were mechanically ventilated via a tracheostomy in the supine position and lung injury was induced with repeated central venous oleic acid injections (0.1 ml/kg) as described earlier [10]. Two hours after the induction of ALI, animals were randomized using sealed envelopes to receive either APRV with or without spontaneous breathing. Six hours after randomization, the pigs were transferred to the radiology department without interrupting ventilation or changing the ventilatory mode, and transverse dynamic chest CT scans were then performed.

Ventilatory setting

APRV without spontaneous breathing

Time-cycled pressure-controlled ventilation (Evita 4; Dräger, Lübeck, Germany) was applied with a respiratory rate of 20 breaths/minute, an inspiratory:expiratory time ratio of 1:1, FiO2 of 0.5, PEEP of 5 cmH2O, and an inspiratory pressure that resulted in a tidal volume (VT) of approximately 10 ml/kg. Adjustments of the respiratory rate up to 30 breaths/minute and increments of inspiratory pressure were allowed in order to avoid hypercapnia above a PaCO2 of 60 mmHg and to compensate for decreased compliance. To suppress spontaneous breathing during hypercapnia, the remifentanil infusion was increased to 2 μg/kg/minute and, if spontaneous breathing efforts were detected in esophageal pressure and/or gas flow tracings, 2.5 mg/hour pancuronium bromide was infused for muscle relaxation (this was necessary in four animals). The PEEP, the inspiratory:expiratory ratio, and FiO2 were kept constant during the entire study.

APRV with spontaneous breathing

The ventilator settings were guided by the principles already described. To allow reinstitution of spontaneous breathing the respiratory rate of the ventilator was decreased to 15 breaths/minute, resulting in (preset) inspiratory and expiratory times of 2 s, and the remifentanil infusion was lowered.

Gas analysis, ventilatory, and lung mechanics measurements

Methods and techniques for gas analysis, ventilatory, and lung mechanics measurements have been described elsewhere [10].

CT scanning and analysis

During ventilation a frontal topogram of the chest was obtained with a Somatom Plus 4 (Siemens, Erlangen, Germany) and two transverse slices with a thickness of 8 mm were defined: one apical slice located at the midpoint of the intrathoracic trachea, and another slice located 1–2 cm above the diaphragm.

In each of the two defined transverse slices, dynamic CT scans (140 kV, 111 mA, 0.75 s for one spin) over an acquisition time of 4.5 s were performed without interrupting ventilation in random order, ensuring inclusion of at least one ventilatory cycle. The CT scanner provided image reconstructions with effective time resolution of 0.1 s, resulting in 45 single scans for each slice. Depending on the transverse image size, the pixel size was 0.25 ± 0.05 mm2, resulting in a voxel size of 1.96 ± 0.39 mm3.

The CT images were transferred to a personal computer and analyzed with a computer program (Osiris; University of Geneva, Switzerland). The investigator was blinded to the ventilatory mode. In all slices of the dynamic scans of the two defined lung regions, the entire lung was chosen as the region of interest (ROI) by drawing the external boundaries of the lungs inside the ribs and the internal boundaries along the mediastinal organs. The images with the highest mean Hounsfield units (HU) and with the lowest mean HU in the following sequence of images with decreasing HU numbers, representing the end-expiratory and end-inspiratory images (during APRV with spontaneous breathing, breaths with combined ventilator and spontaneous breathing activity), were selected by another researcher (JZ) in order not to unblind the ventilatory mode and passed to the investigator (TM) for further analysis.

The marked lung was divided into a ventral, nondependent half and a dorsal, dependent half (Figure 1, center) bisecting a ventral to dorsal axis that represents the highest chest diameter in parallel to a reference line from the sternum to the spine. Larger blood vessels were marked separately and data were subtracted. The number of voxels corresponding to each attenuation value in ventral and dorsal ROIs of each slice were counted and stored by the computer program. Attenuation values outside the range of -1,000 to +100 HU, which constituted less than 1% of all counts, were excluded. For repeated marking of the external boundaries of the lungs using similar technology, the intraobserver variability for the determination of ROIs was 1.7% of the mean ROI area [16].

Figure 1
figure 1

Densitometries of dynamic lung computed tomography (CT). Center, example of an end-expiratory transverse CT scan of a slice close to the diaphragm. External boundaries of the lungs inside the ribs and the internal boundaries along the mediastinal organs were marked. The marked lung tissue was divided into a nondependent and a dependent region of interest bisecting a ventral to dorsal axis that represents the highest chest diameter in parallel to a reference line from sternum to spine. Upper and lower parts, densitometric analyses of all dependent and nondependent lung regions close to the diaphragm computed from dynamic CT at end-expiration and end-inspiration. Histograms show the normalized lung volume for Hounsfield units ranging from -1,000 to 100, plotted as means of all animals. Aeration categories (hyperinflated, normally aerated, poorly aerated, nonaerated; see text for details) are marked. Gray areas indicate increase during inspiration, black areas show decrease during inspiration.

Full size image

Continuous attenuation distributions of each ROI were analyzed using four groups of attenuation ranges with decreasing air content [17–19]: range I included attenuation values between -1,000 and -900 HU previously defined as hyperinflation, range II included values between -900 and -500 HU defined as normal aeration, range III included values between -500 and -100 HU previously defined as poor aeration, and range IV included values between -100 and +100 HU representing atelectasis or lung parenchyma with a gas content of 10% or less.

The gas content of each ROI was calculated as follows: (mean HU / -1,000) × voxel number × voxel volume. For the calculation of the gas content, all voxels ranging from -1,000 to 0 HU were used.

These calculations were performed to obtain the regional distribution of aeration and the amount of nonaerated lung tissue in end-expiratory scans as well as end-inspiratory scans. To assess the distribution of regional ventilation, the end-expiratory gas volume was subtracted from the gas volume calculated from the end-inspiratory scans. Tidal recruitment (cyclic collapse) was estimated by subtracting the calculated amount of nonaerated tissue in inspiratory scans from the corresponding values in expiratory scans.

Statistics

Primary outcome measures were the tidal changes in regional gas volumes and the amount of nonaerated lung. Sample size estimation was based on findings from previous studies. To detect differences in these parameters between ventilatory settings with the given two-sided parallel design at a significance level of 5% (α = 0.05) with a probability of 80% (β = 0.20), based on an estimated difference of 1.25 of the parameter's mean standard deviation, at least 20 animals had to be studied.

Results are expressed as the mean ± standard deviation. All statistical analyses were performed using a statistical software package (STATISTICA for Windows 6.0; StatSoft, Inc., Tulsa, OK, USA). A normal distribution of data was confirmed by the Shapiro–Wilks W test. Two-way analysis of variance with the factors lung region and ventilator mode was used to detect regional aeration differences. Continuous attenuation distributions were tested using analysis of variance with the factors HU range and ventilatory mode in each ROI. Only when a significant F ratio was obtained for the two factors or its interaction were differences separated using Student's t test with Bonferoni correction for multiple tests. Differences were considered to be statistically significant if P < 0.05.

Results

Cardiorespiratory effects

Cardiorespiratory effects have been reported earlier [10] and are provided in condensed tables I-III in an online supplement (see Additional File 1, data kindly reproduced with permission of Lippincott, Williams and Wilkins, Baltimore, MD, USA). No between-groups differences in any measured cardiorespiratory variable have been observed before and 2 hours after the induction of lung injury when pigs were randomized, also indicating that the degree of lung injury was comparable between the groups [10]. During specific ventilatory treatment, apart from a significantly higher effective respiratory rate (including spontaneous breathing) and a trend towards lower tidal volumes with spontaneous breathing, ventilatory variables such as the minute ventilation, alveolar ventilation and airway pressures were comparable between APRV with and without spontaneous breathing (see Additional File 1, tables I-III, data kindly reproduced with permission of Lippincott, Williams and Wilkins, Baltimore, MD, USA) [10]. The proportion of minute ventilation due to spontaneous breathing during APRV with spontaneous breathing could not be measured directly, because the spontaneous breathing activity partially coincides with mechanical breaths. However, the mechanical ventilation should have been halved by the 50% reduction of the respiratory rate of the ventilator down to 15 breaths/minute during APRV with spontaneous breathing. Minute ventilation was comparable between both settings, however, suggesting a 50% contribution of spontaneous breathing to the total ventilation.

Regional distribution of tidal ventilation and recruitment

Analyses of continuous attenuation distributions of apical and diaphragmatic ROIs during both inspiration and expiration are plotted in Figure 1. The differences between inspiration and expiration are marked.

In the slice near the diaphragm, the distribution of tidal gas differed between APRV with spontaneous breathing and APRV without spontaneous breathing (P < 0.01, Figure 2). Improved ventilation was observed during APRV with spontaneous breathing in both nondependent and dependent ROIs (P < 0.05). Differences between dependent and nondependent lung regions in the apical slices were not modified by spontaneous breathing activity (Table 1).

Figure 2
figure 2

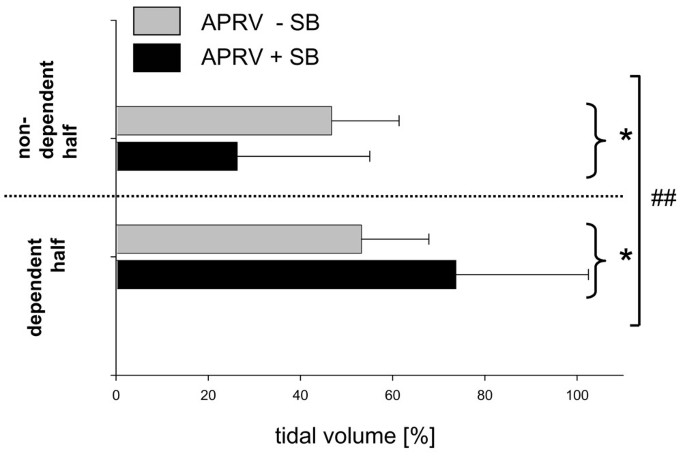

Regional distribution of tidal gas volume. Tidal changes in gas distribution of diaphragmatic slices between a nondependent region of interest (ROI) and a dependent ROI during airway pressure release ventilation (APRV) with or without spontaneous breathing (+SB/-SB). Data presented as the percentage (mean ± standard error of the mean) of the total gas volume of voxels for each ROI. ##P < 0.01, interaction of factor ROI with factor ventilatory mode, suggesting that the ventilatory mode has a significant influence on the regional distribution of tidal volume. *P < 0.05 between ventilatory groups (post hoc results given only if significant).
