Bench-to-bedside review: Microdialysis in intensive care medicine
Critical Care volume 8, Article number: 363 (2004)

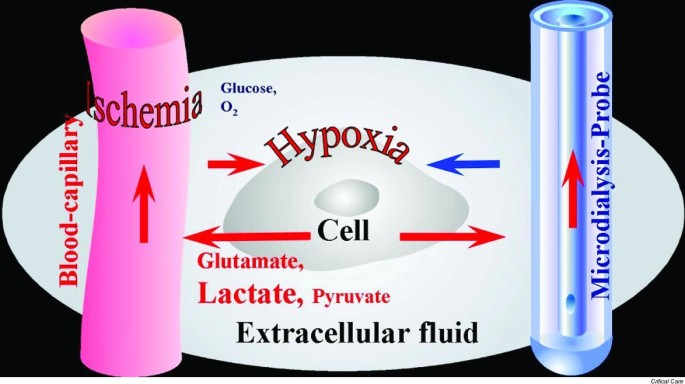

Microdialysis is a technique used to measure the concentrations of various compounds in the extracellular fluid of an organ or in a body fluid. It is a form of metabolic monitoring that provides real-time, continuous information on pathophysiological processes in target organs. It was introduced in the early 1970s, mainly to measure concentrations of neurotransmitters in animal experiments and clinical settings. Using commercial equipment it is now possible to conduct analyses at the bedside by collecting interstitial fluid for measurement of carbohydrate and lipid metabolites. Important research has been reported in the field of neurosurgery in recent decades, but use of metabolic monitoring in critical care medicine is not yet routine. The present review provides an overview of findings from clinical studies using microdialysis in critical care medicine, focusing on possible indications for clinical biochemical monitoring. An important message from the review is that sequential and tissue-specific metabolic monitoring, in vivo, is now available.
There is not yet any clinically established method for following local biochemical parameters in organs when they are affected by hypoxia or ischemia, or are developing organ failure. In the experimental setting it is possible to follow metabolic parameters such as glucose, lactate, pyruvate and glycerol using microdialysis equipment [1, 2]. In the clinical setting, thus far microdialysis has mostly been used in studies of subcutaneous adipose tissue , muscle  and human brain [5–8].
In intensive care medicine, diagnostic and therapeutic decisions are frequently based on measuring blood concentrations of indicator substances, but it is well known that biochemical reactions take place in the tissues. It has therefore been suggested that measurement of tissue chemistry reveals more valuable data than does analysis of systemic parameters in the blood . Furthermore, in the past, detection of tissue concentrations of a substance of interest was hindered by the requirement for tissue harvesting , but harvesting is not necessary with microdialysis.
This article reviews the technique of microdialysis and its development from 'bench to bedside' for use in clinical research, major surgical interventions and critical care. We also discuss whether biochemical tissue monitoring has the potential to surpass blood analysis and become the standard technique for certain clinical procedures. Because fundamental research in numerous studies and reviews of the value of biochemical monitoring in the field of neurosurgery have been published, here we focus on the use of microdialysis in general perioperative and intensive care treatment.
Microdialysis was introduced by Ungerstedt and Pycock  and was used primarily in brain research, but it is now increasingly being applied to various tissues in experimental studies dealing with critical illness, and has some applications in the clinical setting [1, 2, 9]. In theory, the microdialysis catheter acts like a blood capillary . Thereby, it is proposed that microdialysis provides information regarding events that take place in the tissue before any chemical events are reflected by changes in systemic blood levels of indicator substances . Briefly, for those who are less familiar with the technique, the capillaries and the semipermeable membrane are surrounded by substrates and metabolites in the extracellular fluid of the tissue (Fig. 1). These molecules diffuse across the membrane part of the catheter and equilibrate with the perfusion fluid, which is pumped through the probe at very low rates of flow. Changes in the concentration of a substrate in the surrounding milieu are reflected by subsequent changes in the dialysate . Rather than inserting an instrument into the tissue, microdialysate is extracted and later analyzed in the laboratory or clinically at the patient's bedside.
Clinical application of microdialysis was 'catalyzed' by the development of commercially available microdialysis catheters that may be used in humans . Because of modern technical innovations, it is now possible to determine dialysate and tissue concentrations immediately at the bedside during intensive care treatment . The first reported application of microdialysis in humans was a study of interstitial glucose, which was published in 1987 . Since then, microdialysis has been investigated in various human tissues, for example in cancer research  and pharmaceutical studies [17, 18], and in clinical research . However, particular interest is currently devoted to perioperative biochemical monitoring in the fields of vascular, gastrointestinal and heart surgery, and postoperative observation.
Microdialysis in vascular surgery
Several studies dealing with tissue vulnerability during ischemia and reperfusion have been reported [20, 21]. Previous studies on the consequences of ischemia in skeletal muscle usually involved venous blood sampling or tissue biopsies, but microdialysis has the advantage that metabolite levels can be monitored directly in the interstitial fluid of the tissue, even when blood flow is restricted. Lundberg and coworkers  used microdialysis to grade the severity of peripheral vessel disease. Responses of interstitial muscle concentrations of lactate and the lactate–pyruvate ratio to blood flow reduction were variable, whereas glucose concentration subsequently fell. Using microdialysis, Metzsch and coworkers  investigated metabolic changes during open and endovascular aortic surgery, and found that stent procedures had a lesser impact on regional tissue metabolism over 24 hours than did open aortic procedures.
In the field of orthopedic surgery, Korth and coworkers  demonstrated that interstitial concentrations of glucose, lactate, and hypoxanthine – indicators of tissue ischemia – change more markedly after exsanguination of the extremity than after circulatory occlusion alone. The energy status in muscle tissue was immediately visible after induction of ischemia, when glucose levels decreased and the extracellular concentrations of lactate and hypoxanthine increased.
Our study group clinically monitored patients during abdominal aortic surgery using microdialysis of the subcutaneous tissue. We found the glucose–lactate ratio to be the most sensitive marker for detection of ischemic events (Fig. 2); in another study we focused on the lacate–pyruvate ratio and interstitial glycerol .
Monitoring in the neonatal intensive care unit
Microdialysis in the neonatal intensive care unit is a new approach to continuous monitoring of newborn patients who are at at risk from hypoglycemia (a commonly encountered problem in neonatal intensive care). The objective of the study conducted Baumeister and coworkers  was to evaluate subcutaneous microdialysis in long-term glucose monitoring in the neonatal intensive care unit. By using subcutaneous microdialysis, blood draws and painful stress resulting from diagnostic blood sampling in high-risk neonates were reduced. Subcutaneous microdialysis has been used continuously for up to 4 days in neonates during intensive care, and for 3 and 7 days in adult insulin-dependent diabetic patients . In their clinical study, Baumeister and coworkers  continued metabolic monitoring for 4–16 days and found a close correlation (r ~ 0.97) between blood and interstitial glucose levels.
Monitoring the gastrointestinal tract in the intensive care unit
Ensuring adequacy of visceral circulation is of high priority in critical illness. However, no clinical instrument has yet been developed to continuously monitor biochemical and circulatory parameters in this compartment [28, 29]. Decrease in intestinal blood flow or derangement of visceral oxygen supply is well known to induce local and systemic inflammation. This could subsequently be responsible for multiple organ dysfunction and/or failure . Many investigators have attempted measure adequacy of splanchnic circulation either by measuring splanchnic blood flow in global splanchnic blood flow or local tissue perfusion or by evaluating metabolism in one region of the gastrointestinal tissue .
However, Tenhunen and coworkers have forwarded a theory, supported by several studies conducted in various experimental and clinical settings [31–36], that changes in tissue perfusion and metabolism in response to different drug interventions vary. That research group is by far the most experienced with respect to experimental biochemical monitoring of the gastrointestinal tract in the critical care setting. They identified intestinal histamine release in a selective regional intestinal ischemia–reperfusion model, not during ischemia but only during the reperfusion phase .
Following short-term endotoxin challenge, Oldner and coworkers  observed early increases in microdialysate lactate and hypoxanthine in ileum, as opposed to systemically detectable changes. However, insertion of a microdialysis probe into the intestinal wall is not feasible for clinical application. Subsequently, intraluminal  and intraperitoneal  applications were evaluated in experimental ischemia and hypoxia. Using microdialysis, Ungerstedt and colleagues  investigated local and regional gastrointestinal ischemia caused by vascular occlusion. Also in the setting of gastrointestinal ischemia caused by vascular occlusion, Jansson and coworkers  were the first to apply intraperitoneal microdialysis in clinical pilot studies of patients undergoing abdominal surgery. Intraperitoneal microdialysis appears to represent a very promising clinical tool for continuous monitoring of metabolic status in visceral tissues. It is minimally invasive; for example, the probe may placed be left in situ after laparotomy.
Liver monitoring in the intensive care unit
Despite improvements in liver preservation and surgery, a signficant incidence of graft dysfunction following liver transplantation persists. Microdialysis offers the possibility to monitor the liver during and after transplantation. Nowak and coworkers, who are pioneers in this field, investigated this application both experimentally  and clinically . In their studies they investigated ischemia–reperfusion injury and post-transplant vascular complications, with apparent impact on hepatic metabolism, using microdialysis. They characterized the course of normalization in biochemical markers during the 72-hour postoperative period following liver transplantation. Nowak and coworkers concluded that the procedure is easy to perform and safe for the patient. They stated that the detection of specific pathologic changes (e.g. arterial and portal vein thrombosis, early graft rejection) might be possible using microdialysis, and that this should be addressed in further studies.
Increasing interest has been devoted to metabolic changes that occur in the tissue during sepsis and endotoxemia. In their animal experiments, Tenhunen and coworkers  induced a biphasic endotoxic shock lasting 12 hours and measured regional blood flows. Endotoxin shock per se had heterogeneous effects on tissue perfusion, and it was observed that blood flow changes did not correlate with metabolic events. We performed endotoxin  and monophosphoryl-lipid A  vaccination before induction of endotoxemia in animal experiments. Despite nonsignificant differences in hemodynamic parameters, lower interstitial lactate and glycerol accumulation (Fig. 3) were clearly associated with prolonged survival.
Stjernstrom and coworkers  were the first to report on the use of microdialysis in sepsis; they described case reports of microdialysis monitoring in patients with septic shock. Clinically, Martinez and coworkers  evaluated adipose tissue metabolism in severely ill patients. The aim of the latter investigation was to study whole body substrate utilization and adipose tissue lactate and glycerol release in healthy human volunteers and in two groups of critically ill patients: one group of patients with severe sepsis or septic shock and another with circulatory failure after cardiac surgery. Differences in tissue metabolic response were found between sepsis/septic shock and cardiac failure patients using microdialysis. The observations summarized above, along with Fink's theory of 'cytopathic hypoxia'  in septic states, add weight to a recommendation to introduce biochemical tissue monitoring into critical care practice.
Monitoring pharmacological concentrations
Achievement of appropriate concentrations of antibiotics at target sites is associated with clinical outcome  and therefore is of particular importance. Recent data, however, strongly suggest that concentrations of antibiotics reached in the interstitium of soft tissues might be ineffective in critically ill patients, despite achievement of adequate plasma concentrations . Fundamental experimental research in the field of drug monitoring using microdialysis has been reported ; this was recently reviewed by Joukhadar and coworkers .
Monitoring myocardial metabolism
Several experimental approaches such as biochemical analysis of coronary sinus blood, myocardial biopsy and magnetic resonance imaging have been taken in order to describe the metabolic changes that occur during and after cardiopulmonary bypass . With the exception of septic conditions , the interstitial concentration of lactate has been shown to be closely related to variations in tissue perfusion  and may thus be used as a surrogate marker of myocardial ischemia. Following experimental evaluation by Kennergren and coworkers , Habicht and colleagues  were the first to introduce this concept into the clinic by inserting microdialysis probes into the interventricular septum of the human heart. Kennergren and colleagues  then focused on changes in troponin T and aspartate transferase in patients undergoing coronary artery bypass grafting and valve surgery.
We investigated the course of myocardial metabolism in patients undergoing standard coronary artery bypass grafting . In contrast to blood levels, myocardial lactate–pyruvate ratio exhibited marked changes during the period of observation; pyruvate was found to be a promising indicator of tissue reperfusion. In a recent study of myocardial microdialysis (unpublished data), we categorized patients by lactate concentration at baseline into a high lactate group and a low lactate group. We found an association between increased myocardial lactate levels – as determined by microdialysis – and reduced myocardial performance with difficult weaning from cardiopulmonary bypass during coronary artery bypass grafting. This suggests that myocardial microdialysis may be a useful adjunct for stratifying treatment in these interventions (unpublished data). Microdialysis may reveal promising diagnostic and therapeutic options by permitting analysis of the effects of different treatment strategies on myocardial metabolism (i.e. the 'target tissue' of therapeutic interventions) in cardiac surgical patients.
Microdialysis has been introduced into several sectors of critical care medicine. The precise role and cost-effectiveness of microdialysis, in comparison with well established technologies, in developing strategies to improve the organ function in intensive care remain to be determined. However, even in the well established field of neurosurgery, the clinical use microdialysis has not yet been found to improve outcome. Current data support a recommendation to introduce this new technique to evaluate the adequacy of regional tissue metabolism; it may even permit monitoring of the effects of therapeutic interventions. Further studies of various approaches are needed to conclude which seems clinically most feasible, which is sufficiently non-invasive, and which supplies the clinician with the most physiologically relevant information. Whether clinicians will be able to monitor their 'tissues of interest' directly, with microdialysis playing a key role, will be determined by the results of further evaluation.
Ungerstedt U: Microdialysis: principles and applications for studies in animals and man. J Intern Med. 1991, 230: 365-373.
Ungerstedt U: Microdialysis: a new technique for monitoring local tissue events in the clinic. Acta Anaesthesiol Scand Suppl. 1997, 110: 123-
Lutgers HL, Hullegie LM, Hoogenberg K, Sluiter WJ, Dullaart RP, Wientjes KJ, Schoonen AJ: Microdialysis measurement of glucose in subcutaneous adipose tissue up to three weeks in type 1 diabetic patients. Neth J Med. 2000, 57: 7-12. 10.1016/S0300-2977(00)00022-X.
MacLean DA, Sinoway LI, Leuenberger U: Systemic hypoxia elevates skeletal muscle interstitial adenosine levels in humans. Circulation. 1998, 98: 1990-1992.
Peerdeman SM, Girbes AR, Polderman KH, Vandertop WP: Changes in cerebral interstitial glycerol concentration in head-injured patients; correlation with secondary events. Intensive Care Med. 2003, 29: 1825-1828. 10.1007/s00134-003-1850-8.
Hutchinson PJ, O'Connell MT, al-Rawi PG, Kett-White R, Gupta AK, Kirkpatrick PJ, Pickard JD: Clinical cerebral microdialysis: determining the true extracellular concentration. Acta Neurochir Suppl. 2002, 81: 359-362.
Sarrafzadeh AS, Sakowitz OW, Lanksch WR, Unterberg AW: Time course of various interstitial metabolites following sub-arachnoid hemorrhage studied by on-line microdialysis. Acta Neurochir Suppl. 2001, 77: 145-147.
Hillered L, Persson L: Microdialysis for neurochemical monitoring of the human brain. Scand Cardiovasc J. 2003, 37: 13-17. 10.1080/14017430310006974.
Muller M: Science, medicine, and the future: microdialysis. BMJ. 2002, 324: 588-591. 10.1136/bmj.324.7337.588.
Crinnion JN, Homer-Vanniasinkam S, Gough MJ: Skeletal muscle reperfusion injury: pathophysiology and clinical considerations. Cardiovasc Surg. 1993, 1: 317-324.
Ungerstedt U, Pycock C: Functional correlates of dopamine neurotransmission. Bull Schweiz Akad Med Wiss. 1974, 30: 44-55.
Arner P: Techniques for the measurement of white adipose tissue metabolism: a practical guide. Int J Obes Relat Metab Disord. 1995, 19: 435-442.
Connelly CA: Microdialysis update: optimizing the advantages. J Physiol. 1999, 514: 303-
Lonnroth P, Smith U: Microdialysis: a novel technique for clinical investigations. J Intern Med. 1990, 227: 295-300.
Stjernstrom H, Karlsson T, Ungerstedt U, Hillered L: Chemical monitoring of intensive care patients using intravenous microdialysis. Intensive Care Med. 1993, 19: 423-428.
Lonnroth P, Jansson PA, Smith U: A microdialysis method allowing characterization of intercellular water space in humans. Am J Physiol. 1987, 253: E228-E231.
Joukhadar C, Derendorf H, Muller M: Microdialysis. A novel tool for clinical studies of anti-infective agents. Eur J Clin Pharmacol. 2001, 57: 211-219. 10.1007/s002280100301.
Joukhadar C, Frossard M, Mayer BX, Brunner M, Klein N, Siostrzonek P, Eichler HG, Muller M: Impaired target site penetration of beta-lactams may account for therapeutic failure in patients with septic shock. Crit Care Med. 2001, 29: 385-391. 10.1097/00003246-200102000-00030.
Bolinder J, Hagstrom-Toft E, Ungerstedt U, Arner P: Self-monitoring of blood glucose in type I diabetic patients: comparison with continuous microdialysis measurements of glucose in subcutaneous adipose tissue during ordinary life conditions. Diabetes Care. 1997, 20: 64-70.
Homer-Vanniasinkam S, Crinnion JN, Gough MJ: Post-ischaemic organ dysfunction: a review. Eur J Vasc Endovasc Surg. 1997, 14: 195-203.
Kerrigan CL, Stotland MA: Ischemia reperfusion injury: a review. Microsurgery. 1993, 14: 165-175.
Lundberg G, Wahlberg E, Swedenborg J, Sundberg CJ, Ungerstedt U, Olofsson P: Continuous assessment of local metabolism by microdialysis in critical limb ischaemia. Eur J Vasc Endovasc Surg . 2000, 19: 605-613. 10.1053/ejvs.1999.1088.
Metzsch C, Lundberg J, Norgren L: Regional tissue metabolism during open or endovascular abdominal aortic aneurysm surgery. Eur J Vasc Endovasc Surg. 2001, 21: 320-325. 10.1053/ejvs.2001.1326.
Korth U, Merkel G, Fernandez FF, Jandewerth O, Dogan G, Koch T, van Ackern K, Weichel O, Klein J: Tourniquet-induced changes of energy metabolism in human skeletal muscle monitored by microdialysis. Anesthesiology. 2000, 93: 1407-1412. 10.1097/00000542-200012000-00011.
Klaus S, Staubach KH, Eichler W, Gliemroth J, Heringlake M, Schmucker P, Bahlmann L: Clinical biochemical tissue monitoring during ischaemia and reperfusion in major vascular surgery. Ann Clin Biochem. 2003, 40: 289-291. 10.1258/000456303321610646.
Bahlmann L, Wagner K, Heringlake M, Wirtz C, Futterer T, Schmucker P, Klaus S: Subcutaneous microdialysis for metabolic monitoring in abdominal aortic surgery. J Clin Monit Comput. 2002, 17: 309-312. 10.1023/A:1021284608837.
Baumeister FA, Rolinski B, Busch R, Emmrich P: Glucose monitoring with long-term subcutaneous microdialysis in neonates. Pediatrics. 2001, 108: 1187-1192.
Levy B, Gawalkiewicz P, Vallet B, Briancon S, Nace L, Bollaert PE: Gastric capnometry with air-automated tonometry predicts outcome in critically ill patients. Crit Care Med. 2003, 31: 474-480. 10.1097/01.CCM.0000050445.48656.28.
Hiltebrand LB, Krejci V, Banic A, Erni D, Wheatley AM, Sigurdsson GH: Dynamic study of the distribution of microcirculatory blood flow in multiple splanchnic organs in septic shock. Crit Care Med. 2000, 28: 3233-3241. 10.1097/00003246-200009000-00019.
Thornton FJ, Barbul A: Healing in the gastrointestinal tract. Surg Clin North Am. 1997, 77: 549-573.
Martikainen TJ, Tenhunen JJ, Uusaro A, Ruokonen E: The effects of vasopressin on systemic and splanchnic hemodynamics and metabolism in endotoxin shock. Anesth Analg. 2003, 97: 1756-1763.
Rixen D, Raum M, Holzgraefe B, Schafer U, Hess S, Tenhunen J, Tuomisto L, Neugebauer EA: Local lactate and histamine changes in small bowel circulation measured by microdialysis in pig hemorrhagic shock. Shock. 2002, 18: 355-359. 10.1097/00024382-200210000-00011.
Tenhunen JJ, Kosunen H, Juvonen P, Heino A, Koski EM, Merasto ME, Takala J, Alhava E, Tuomisto L: Intestinal mucosal microdialysis: histamine release in splanchnic ischemia/reperfusion injury in piglets. Inflamm Res. 1996, Suppl 1: S52-S53.
Tenhunen JJ, Kosunen H, Alhava E, Tuomisto L, Takala JA: Intestinal luminal microdialysis: a new approach to assess gut mucosal ischemia. Anesthesiology. 1999, 91: 1807-1815. 10.1097/00000542-199912000-00035.
Tenhunen JJ, Jakob SM, Takala JA: Gut luminal lactate release during gradual intestinal ischemia. Intensive Care Med. 2001, 27: 1916-1922. 10.1007/s00134-001-1145-x.
Tenhunen JJ, Uusaro A, Karja V, Oksala N, Jakob SM, Ruokonen E: Apparent heterogeneity of regional blood flow and metabolic changes within splanchnic tissues during experimental endotoxin shock. Anesth Analg. 2003, 97: 555-563.
Oldner A, Goiny M, Ungerstedt U, Sollevi A: Splanchnic homeostasis during endotoxin challenge in the pig as assessed by microdialysis and tonometry. Shock. 1996, 6: 188-193.
Klaus S, Heringlake M, Gliemroth J, Bruch HP, Bahlmann L: Intraperitoneal microdialysis for detection of splanchnic metabolic disorders. Langenbecks Arch Surg. 2002, 387: 276-280. 10.1007/s00423-002-0320-z.
Ungerstedt J, Nowak G, Ericzon BG, Ungerstedt U: Intraperitoneal microdialysis (IPM): a new technique for monitoring intestinal ischemia studied in a porcine model. Shock. 2003, 20: 91-96. 10.1097/01.shk.0000070904.21762.36.
Jansson K, Ungerstedt J, Jonsson T, Redler B, Andersson M, Ungerstedt U, Norgren L: Human intraperitoneal microdialysis: increased lactate/pyruvate ratio suggests early visceral ischaemia. A pilot study. Scand J Gastroenterol. 2003, 38: 1007-1011. 10.1080/00365520310004065.
Nowak G, Ungerstedt J, Wernerman J, Ungerstedt U, Ericzon BG: Metabolic changes in the liver graft monitored continuously with microdialysis during liver transplantation in a pig model. Liver Transpl. 2002, 8: 424-432. 10.1053/jlts.2002.32943.
Nowak G, Ungerstedt J, Wernerman J, Ungerstedt U, Ericzon BG: Clinical experience in continuous graft monitoring with microdialysis early after liver transplantation. Br J Surg. 2002, 89: 1169-1175. 10.1046/j.1365-2168.2002.02187.x.
Klaus S, Heringlake M, Block K, Nolde J, Staubach K, Bahlmann L: Metabolic changes detected by microdialysis during endotoxin shock and after endotoxin preconditioning. Intensive Care Med. 2003, 29: 634-641.
Klaus S, Staubach KH, Heringlake M, Gliemroth J, Schmucker P, Bahlmann L: Tissue metabolism during endotoxin shock after pretreatment with monophosphoryl lipid A. Cardiovasc Res. 2003, 59: 105-112. 10.1016/S0008-6363(03)00347-X.
Martinez A, Chiolero R, Bollman M, Revelly JP, Berger M, Cayeux C, Tappy L: Assessment of adipose tissue metabolism by means of subcutaneous microdialysis in patients with sepsis or circulatory failure. Clin Physiol Funct Imaging. 2003, 23: 286-292. 10.1046/j.1475-097X.2003.00512.x.
Fink MP: Bench-to-bedside review: Cytopathic hypoxia. Crit Care. 2002, 6: 491-499. 10.1186/cc1824.
Hyatt JM, McKinnon PS, Zimmer GS, Schentag JJ: The importance of pharmacokinetic/pharmacodynamic surrogate markers to outcome. Focus on antibacterial agents. Clin Pharmacokinet. 1995, 28: 143-160.
Muller M: Microdialysis in clinical drug delivery studies. Adv Drug Deliv Rev. 2000, 45: 255-269. 10.1016/S0169-409X(00)00113-7.
Kennergren C, Nystrom B, Nystrom U, Berglin E, Larsson G, Mantovani V, Lonnroth P, Hamberger A: In situ detection of myocardial infarction in pig by measurements of aspartate aminotransferase (ASAT) activity in the interstitial fluid. Scand Cardiovasc J. 1997, 31: 343-349.
Habicht JM, Wolff T, Langemann H, Stulz P: Intraoperative and postoperative microdialysis measurement of the human heart: feasibility and initial results in German]. Swiss Surg. 1998, Suppl 2: 26-30.
Kennergren C, Mantovani V, Lonnroth P, Nystrom B, Berglin E, Hamberger A: Extracellular amino acids as markers of myocardial ischemia during cardioplegic heart arrest. Cardiology. 1999, 91: 31-40. 10.1159/000006874.
Bahlmann L, Misfeld M, Klaus S, Leptien A, Heringlake M, Schmucker P, Sievers HH, Ungerstedt U, Kraatz EG: Myocardial redox state during coronary artery bypass grafting assessed with microdialysis. Intensive Care Med. 2004, 30: 889-894. 10.1007/s00134-004-2199-3.
