Prevention and diagnosis of venous thromboembolism in critically ill patients: a Canadian survey

Abstract

Background

Venous thromboembolism (VTE) confers considerable morbidity and mortality in hospitalized patients, although few studies have focused on the critically ill population. The objective of this study was to understand current approaches to the prevention and diagnosis of deep venous thrombosis (DVT) and pulmonary embolism (PE) among patients in the intensive care unit (ICU).

Design

Mailed self-administered survey of ICU Directors in Canadian university affiliated hospitals.

Results

Of 29 ICU Directors approached, 29 (100%) participated, representing 44 ICUs and 681 ICU beds across Canada. VTE prophylaxis is primarily determined by individual ICU clinicians (20/29, 69.0%) or with a hematology consultation for challenging patients (9/29, 31.0%). Decisions are usually made on a case-by-case basis (18/29, 62.1%) rather than by preprinted orders (5/29, 17.2%), institutional policies (6/29, 20.7%) or formal practice guidelines (2/29, 6.9%). Unfractionated heparin is the predominant VTE prophylactic strategy (29/29, 100.0%) whereas low molecular weight heparin is used less often, primarily for trauma and orthopedic patients. Use of pneumatic compression devices and thromboembolic stockings is variable. Systematic screening for DVT with lower limb ultrasound once or twice weekly was reported by some ICU Directors (7/29, 24.1%) for specific populations. Ultrasound is the most common diagnostic test for DVT; the reference standard of venography is rarely used. Spiral computed tomography chest scans and ventilation–perfusion scans are used more often than pulmonary angiograms for the diagnosis of PE. ICU Directors recommend further studies in the critically ill population to determine the test properties and risk:benefit ratio of VTE investigations, and the most cost-effective methods of prophylaxis in medical–surgical ICU patients.

Interpretation

Unfractionated subcutaneous heparin is the predominant VTE prophylaxis strategy for critically ill patients, although low molecular weight heparin is prescribed for trauma and orthopedic patients. DVT is most often diagnosed by lower limb ultrasound; however, several different tests are used to diagnose PE. Fundamental research in critically ill patients is needed to help make practice evidence-based.

Introduction

The most serious manifestation of DVT is PE, which occurs in up to 1% of hospitalized patients and in 15% of patients at postmortem [1]. Critically ill patients are at increased risk of VTE due to their premorbid conditions, admitting diagnoses such as sepsis and trauma, and events and exposures in the ICU such as central venous catheterization, invasive tests and procedures, and drugs that potentiate immobility [2,3]. While autopsies have identified PE in 20–27% of ICU patients [4,5], most clinical studies of VTE in the critically ill focus on DVT. It is estimated that 90% of cases of PE originate in the deep venous system of the lower limbs [6].

Two cross-sectional studies at the time of admission to the ICU found a 10% prevalence of DVT diagnosed by lower limb ultrasonography [7,8]. The risk of DVT developing during the ICU stay was established in three longitudinal studies using systematic screening [5,9,10]. Among ICU patients who did not receive prophylaxis, 76% of whom were mechanically ventilated, radioactive fibrinogen scanning for 3–6 days identified DVT in 3/34 (9%) patients [5]. Among 100 medical ICU patients, 80% of whom were ventilated, Doppler ultrasound twice weekly identified DVT in 10/18 (56%) patients who received no prophylaxis, 17/43 (40%) who received unfrac-tionated subcutaneous heparin, and 6/18 (33%) who received pneumatic compression of the legs [9]. In a third study of 102 medical–surgical ICU patients who had duplex ultrasound during days 4–7 [10], DVT rates were 25, 19, and 7% in patients who received no prophylaxis, pneumatic compression, and unfractionated heparin, respectively. Trauma patients who do not receive prophylaxis, however, have DVT rates of 60%, as demonstrated by serial impedance plethys-mography and venography [11].

Two randomized trials have tested the efficacy of DVT prophylaxis in medical–surgical ICU patients. In 1982, 119 patients were randomized to receive unfractionated heparin (5000 U subcutaneously twice daily) or placebo [12]. Scanning with I¹²⁵ fibrinogen for 5 days identified DVT in 13 and 29% of these patients, respectively (relative risk, 0.45; P < 0.05). More recently, 223 mechanically ventilated patients with an exacerbation of chronic obstructive pulmonary disease were randomized to 0.14 or 0.6 ml nadroparin subcutaneously daily or placebo [13]. Duplex compression ultrasound performed weekly identified DVT in 16% of the low molecular weight heparin group and 28% in the control group (relative risk, 0.67; P < 0.05). There are, however, no direct comparisons of low molecular weight heparin versus unfractionated heparin in this population. This is not the case for trauma patients; in one landmark trial, Geerts et al identified DVT in 31% of patients randomized to receive enoxaparin compared with 44% in patients receiving unfractionated heparin (relative risk, 0.70; P < 0.05) [14].

The high risk of DVT and PE in critically ill patients, its potential morbidity and mortality, and the need for accurate diagnosis and effective prevention prompted a survey of Canadian ICU Directors. The five specific goals were to understand decisional responsibility for VTE prophylaxis, to understand the type of prophylaxis prescribed, to understand approaches used to screen for DVT, to understand approaches used to diagnose DVT and PE, and to understand national interest in a VTE research program in the ICU.

Methods

Instrument development

Items were generated for the instrument by examining original research and position papers on VTE. To address the five aforementioned objectives, items were clustered in five domains: decisional responsibility for VTE prophylaxis (inten-sivists, consultants, services, policies and guidelines), prophylaxis utilization (unfractionated heparin, low molecular weight heparin, pneumatic compression devices and thromboembolic stockings), approach to DVT screening (frequency, method, and patient subgroup), approach to VTE diagnosis (laboratory and imaging studies), and recommendations for further research on the prevention and diagnosis of VTE in critically ill patients. Respondents were asked to report current practice patterns in their ICU.

We used close-ended questions for the ICU demographic data to maximize the accuracy and completeness of responses [15]. Other responses were elicited using both open and close-ended questions. Diagnostic test utilization was recorded using five-point responses (1= never used, 2= rarely used, 3= sometimes used, 4= primarily used, and 5= always used). The instrument was pretested prior to administration for clarity of content and format.

Instrument administration

To select individuals with managerial responsibility and representative clinical experience, we surveyed ICU Directors in Canadian university affiliated hospitals running closed multi-disciplinary units. We used a self-administered rather than an interviewer-administered format to maximize the validity of self-reported information [16]. We contacted nonrespondents by facsimile with a second questionnaire [17], and then a telephone call. The survey was conducted from October to December 2000. Participation was voluntary and all responses were confidential.

Analysis

We report means and standard deviations, and proportions as appropriate. Chi square analysis was conducted to test for differences in the diagnostic approaches to both DVT and PE.

Results

Of 29 ICU Directors approached, 29 (100%) participated. Respondents represented 44 ICUs in Canada and 681 ICU beds (Table 1). ICUs were primarily mixed medical–surgical units (37/44, 84.1%) or exclusively surgical units (4/44, 9.1%), with a mean of 15.3 (9.9) beds per ICU.

Table 1 Characteristics of participating intensive care units (ICUs)

VTE prophylaxis for critically ill patients is primarily determined by individual clinicians (20/29, 69.0%), with consultation from a hematology or thrombosis service for challenging patients in some centers (9/29, 31.0%). Decisions are made on a case-by-case basis (18/29, 62.1%), infrequently prompted by preprinted orders (5/29, 17.2%) or institutional policies (6/29, 20.7%), and rarely by a formal VTE prophylaxis practice guideline (2/29, 6.9%) (see http://www.critcare.lhsc.on.ca).

Unfractionated heparin (5000 U subcutaneously twice daily or three times daily) is universally reported to be predominant VTE prophylactic strategy (29/29, 100%). Low molecular weight heparin is used in many centers for orthopedic surgery patients (26/29, 89.7%), and in all ICUs that are regional trauma centers (18, 100.0%).

Use of pneumatic compression devices and thromboembolic stockings for VTE prophylaxis is presented in Table 2. Most reasons for utilizing nonpharmacologic approaches related to avoiding heparin exposure (e.g. current, recent or high risk of bleeding and heparin-induced thrombocytopenia) rather than to their perceived effectiveness at VTE prevention. Some ICU Directors reported never using pneumatic compression devices (11/29, 37.9%) or thromboembolic stockings (8/29, 27.6%). Combination VTE prophylaxis methods for postcar-diac surgery patients (e.g. unfractionated heparin with pneumatic compression devices), and neurosurgery (e.g. low molecular weight heparin with thromboembolic stockings) were also described (data not shown). We did not elicit information on the rationale for combination prophylaxis with pharmacologic and nonpharmacologic approaches.

Table 2 Use of pneumatic compression devices (PCD) and thromboembolic stockings (TEDs) for venous thromboembolism (VTE) prophylaxis in the intensive care unit (ICU) as reported by 29 Canadian ICU Directors

Early detection of DVT using surveillance screening was reported in a minority of ICUs (7/29, 24.1%), for various populations, including neurosurgery (n = 3), trauma (n = 3), patients with prolonged immobility (n = 2), contraindications to heparin (n = 2), or calf DVT (n = 1). The only systematic screening method used is lower limb ultrasound once (n = 2) or twice (n = 5) weekly.

The most common diagnostic test for DVT used in Canadian ICUs is lower limb Doppler ultrasound, which is used significantly more often than either D dimer or venography (P < 0.0001) to detect DVT (Fig. 1). Doppler ultrasound is reportedly used always (15/29, 51.7%) or primarily (14/29, 48.3%) for DVT diagnosis, whereas venography is rarely (17/29, 58.6%) or never (4/29, 13.8%) used.

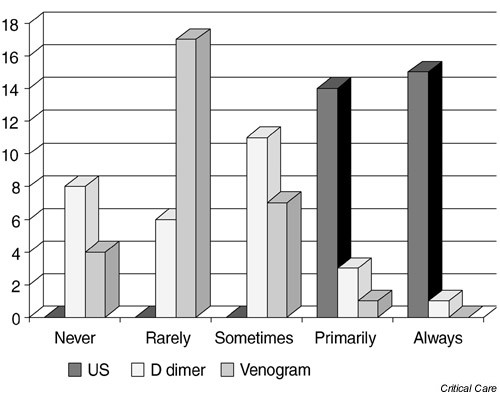

Figure 1

The use of bilateral lower limb ultrasound (US), D dimer, and venography for the diagnosis of deep vein thrombosis, as reported by Canadian Intensive Care Unit Directors.

Figure 2 shows the tests used to diagnose PE. A spiral computed tomography (CT) chest scan is used significantly more often than any other test (P < 0.0001), reportedly used always (5/29, 17.2%) or primarily (16/29, 55.2%). Ventilation–perfusion scans are sometimes used (16/29, 55.2%), whereas pulmonary angiograms are used sometimes (13/29, 44.8%) or rarely (11/29, 37.9%). A wide variation in D dimer utilization is evident for diagnosing both DVT and PE in Cana-dian ICUs.

Figure 2

The use of D dimer, ventilation–perfusion scan (VQ), spiral chest computed tomography (CT), and angiography (angio) for the diagnosis of pulmonary embolism, as reported by Canadian Intensive Care Unit Directors.

ICU Directors uniformly endorsed the need for further studies on VTE in critically ill patients. Topics to address included the test properties and risk:benefit ratio of noninvasive VTE investigations in the ICU setting, accurate profiling of both the thrombotic and bleeding risk among critically ill subgroups, and the most cost-effective methods of VTE prophylaxis in medical–surgical ICU patients.

Discussion

In this survey representing practice patterns in 44 Canadian ICUs, we found that unfractionated subcutaneous heparin was the dominant method for prophylaxis against VTE in medical–surgical ICU patients, consistent with one randomized trial showing benefit in this setting [12]. As supported by other randomized trials, low molecular weight heparin was used for VTE prevention for trauma [14] and orthopedic surgery [18] patients.

VTE prophylaxis with pneumatic compression devices and thromboembolic stockings was variable, sometimes reported in combination with pharmacologic prevention. For example, thromboembolic stockings and low molecular weight heparin were prescribed in some centers for neurosurgery patients, as suggested by a recent trial showing that nadroparin and thromboembolic stockings were more effective than stockings alone for this population [19]. Pneumatic compression devices were used in combination with unfractionated heparin for cardiac surgery patients; this combination was shown to be more effective than prophylaxis with heparin alone for DVT prevention in another trial [20].

The reference standards of venography and pulmonary angiography are seldom used in practice to diagnose DVT and PE. The prevailing diagnostic approach for DVT is ultra-sonography despite its unclear performance characteristics in this population, instead of more accurate venography with its attendant risks of patient transport and contrast dye-induced renal insufficiency. A range of tests is used to diagnose PE: Ddimer, spiral CT scans, and ventilation–perfusion scans. Difficulty in diagnosing PE is highlighted by the challenge of an accurate pretest probability in the ICU setting, compounded by uncertain properties of these tests in ventilated patients who have acute and chronic illnesses and abnormal chest radiographs. Respondents in the present survey reported that helical CT chest scanning was the most common diagnostic test for PE, perhaps partly because this imaging procedure can concomitantly rule in or out other diagnoses. Helical CT chest scans, however, have a sensitivity for PE ranging from 53 to 100% and a specificity ranging from 81 to 100% according to a recent systematic review [21].

D dimer tests are less useful diagnostically for VTE. Wells et al found that the rapid whole blood assay for D dimer has a sensitivity of 93% for proximal DVT, a sensitivity of 70% for calf DVT, and a specificity of 77% compared with a reference standard of impedance plethysmography [22]. Ginsberg et al determined that the rapid whole blood assay for D dimer has a sensitivity and a specificity for PE, as diagnosed by ventilation–perfusion scan, of 85 and 68%, respectively [23]. Five different quantitative latex agglutination tests for D dimer yielded sensitivities of 97–100% and specificities of 19–29% when compared with pulmonary angiogram for the diagnosis of PE [24]. Applying the foregoing test properties of D dimer generated outside the ICU setting to critically ill patients may be further compromised by activation of the coagulation and inflammatory cascades in many critically ill patients for myriad reasons [25,26].

We hypothesize that the modest amount of research on VTE in the critically ill creates some uncertainty about best practice. The variation we identified in the present study with respect to nonpharmacologic VTE prophylaxis and the diagnostic approach to PE may be related to insufficient studies in critically ill patients. Additional factors explaining practice variation may include different interpretations of the merits of various tests and prophylactic methods, unique characteristics of each ICU population, and the influences of practice setting such as test availability. When several high quality studies generate consistent results and when there are few barriers to implementation such as risk and cost, we found that practice patterns regarding ventilator circuit and secretion management were more standardized [27].

We used evidence from three randomized trials to conduct this survey, suggesting that a self-administered format yields more valid self-reports than interviewer-administered questionnaires [16], that closed-ended formats yield more complete and valid demographic data than open-ended formats [15], and that appending second questionnaires to reminders maximizes response rates [17]. Our response rate was high and our findings generalizable to teaching institutions across Canada. There are, however, several limitations to this study. First, ICU Directors may not be aware of all local decisions, although their responses are probably representative of care delivered in their center. This limitation underscores the universal caveat of all surveys, that stated practice may not reflect actual practice. Second, using this sampling frame limits our ability to detect individual clinician factors associated with practice patterns. Third, this study was not designed to examine health services factors associated with practice patterns such as ICU organizational characteristics. Finally, we did not evaluate VTE treatment strategies such as weight-based, nurse-managed heparin nomograms, which can shorten the time to achieve therapeutic anticoagulation compared with empiric dosing by physicians in critical illness [28]. Nevertheless, survey methods yield useful estimates of the prevalence and range of VTE prophylactic and diagnostic strategies currently employed. In addition, the information we obtained serves as a foundation on which to build future research programs.

Research agendas in critical care are traditionally generated through investigator-initiated projects, industry-initiated projects, or funding agency directives. An alternative approach to set intensive care research priorities in the United Kingdom and Ireland incorporated a survey, then nominal group techniques to estimate consensus, and then a second survey to validate the findings [29]. Of 37 research topics with the strongest support, 24 addressed organizational aspects of critical care and 13 involved clinical investigations or technology assessment. In the present self-administered survey, Canadian ICU Directors unanimously recommended the development of collaborative research on VTE in the critically ill. Raising the methodologic standards for diagnostic test research [30], particularly in pulmonary medicine [31] and VTE [32], could better inform clinical decisions and minimize the dissemination of nondiscriminating and unnecessary tests. Pressing investigations in this field include accurate risk profiling for both VTE and bleeding events in critically ill subgroups, establishing likelihood ratios associated with clinical, laboratory and radiographic diagnostic tests for VTE, and a cost-effective comparison of unfractionated versus low molecular weight heparin for medical–surgical ICU patients.

The 1986 National Institutes of Health Consensus Conference Report [33], the 1992 Thromboembolic Risk Factors Consensus Group [34], the 1998 ACCP Consensus Committee on Pulmonary Embolism [35], the 1998 Antithrombotic Consensus Conference [36], and the 1999 American Thoracic Society Practice Guideline on the Diagnosis of Venous Thromboembolism [37] do not mention medical–surgical critically ill patients. Observational studies show that VTE prophylaxis is prescribed in 33–86% of eligible patients at risk [9,38,39,40], suggesting insufficient attention to VTE prevention in the ICU. Recent editorials have proclaimed that clinicians 'must make their own decisions' regarding heparin prophylaxis for medical patients [41], and medical–surgical ICUs have been called 'the last frontier for prophylaxis' [42]. The geographical boundaries of the ICU make this venue highly suitable for conducting integrated research programs [43]. Canadian intensivists appear interested in addressing the many unanswered questions regarding VTE prevention and diagnosis in critically ill patients.

Appendix

Participating Canadian ICU Directors

Dr Gordon Wood (Victoria General Hospital, Royal Jubilee Hospital, Victoria), Dr Peter Dodek (St. Paul's Hospital, Vancouver), Dr John Fenwick (Vancouver Hospital & Health Sciences Centre, Vancouver), Dr Sean Keenan (Royal Columbian Hospital, New Westminster), Dr Richard Johnston (Royal Alexandra Hospital, Edmonton), Dr Mark Heule (University of Alberta Hospital, Edmonton), Dr Paul Boiteau (Foothills Medical Centre, Peter Lougheed Medical Center, Rockyview General Hospital, Calgary), Dr Jaime Pinilla (Royal University Hospital, Saskatoon), Dr Daniel Roberts (Health Sciences Centre, Winnipeg), Dr Robert Light (St. Boniface Hospital, Winnipeg), Dr Frank Rutledge (London Health Sciences Centre – Victoria Site, London), Dr Michael Sharpe (London Health Sciences Centre – University Site, London), Dr Andreas Freitag (Hamilton Health Sciences Corporation – McMaster Site, Hamilton), Dr Allan McLellan (Hamilton Health Sciences Corporation – Henderson Site, Hamilton), Dr Brian Egier (Hamilton Health Sciences Corporation – General Site, Hamilton), Dr Peter Lovrics (St. Joseph's Hospital, Hamilton), Dr Thomas Stewart (Mount Sinai Hospital, Toronto), Dr David Mazer (St. Michael's Hospital, Toronto), Dr Patricia Murphy (Sunnybrook & Women's College Health Science Centres – Sunnybrook Site, Toronto), Dr John Marshall (Toronto Hospital – General Site and Western Site, Toronto), Dr Susan Moffatt (Kingston General Hospital, Kingston), Dr Richard Hodder (Ottawa Hospital – Civic Site, Ottawa), Dr Alan Baxter (Ottawa Hospital – General Site, Ottawa), Dr Donald Laporta (Jewish General Hospital, Montreal), Dr Peter Goldberg (CUSM – Royal Victoria Hospital, Montreal), Dr Ashvini Gursahaney (CUSM – Montreal General Site, Montreal), Dr Yoanna Skrobik (Maissoneuve Rosemont Hospital, Montreal), Dr Harry Henteleff (Queen Elizabeth II Health Sciences Centre, Halifax), and Dr Sharon Peters (Health Sciences Centre, St. Clare's Hospital, St. John's).
