Short-term effects of combining upright and prone positions in patients with ARDS: a prospective randomized study
Critical Care volume 15, Article number: R230 (2011)
Prone position is known to improve oxygenation in patients with acute lung injury (ALI) and the acute respiratory distress syndrome (ARDS). Supine upright (semirecumbent) position also exerts beneficial effects on gas exchange in this group of patients. We evaluated the effect of combining upright and prone position on oxygenation and respiratory mechanics in patients with ALI or ARDS in a prospective randomized cross-over study.
After turning them prone from a supine position, we randomized the patients to a prone position or combined prone and upright position. After 2 hours, the position was changed to the other one for another 6 hours. The gas exchange and static compliance of the respiratory system, lungs, and chest wall were assessed in the supine position as well as every hour in the prone position.
Twenty patients were enrolled in the study. The PaO2/FiO2 ratio improved significantly from the supine to the prone position and further significantly increased with additional upright position. Fourteen (70%) patients were classified as responders to the prone position, whereas 17 (85%) patients responded to the prone plus upright position compared with the supine position (P = n.s.). No statistically significant changes were found with respect to compliance.
Combining the prone position with the upright position in patients with ALI or ARDS leads to further improvement of oxygenation.
Clinical Trials No. NCT00753129
Acute lung injury (ALI) and acute respiratory distress syndrome (ARDS) are both frequent conditions in critically ill patients. The incidence ranges from 15 and 34 cases per 100,000 inhabitants per year [1–3]. Compression atelectasis is observed in the dependent parts of the lung, where cardiac weight, abdominal pressure, and pleural effusions compress the lower lobes . Nondependent parts of the lungs are therefore often overventilated and have barotrauma induced by high ventilator pressure .
A prone position is known to improve oxygenation in about 70% of patients with ALI or ARDS  and to reduce lung stress and strain . A supine upright (semirecumbent) position also significantly improves gas exchange in patients with ALI or ARDS [8, 9]. The effect of combining upright and prone positions has not been systematically examined. We hypothesized that in patients with ALI/ARDS, oxygenation improves when combining upright and prone positions because of changes in respiratory mechanics. We therefore conducted a prospective, randomized study to investigate the short-term effects of combined upright and prone positioning on gas exchange and lung mechanics.
Materials and methods
The study was conducted at a medical intensive care unit of a tertiary care university hospital between October 2008 and April 2010 and was approved by the institutional ethical review board. According to Austrian law, informed consent of unresponsive patients was obtained from them after they regained responsiveness. Patients were eligible for inclusion if ventilated for ALI or ARDS, and the decision to perform the prone position had been taken by the responsible intensivist. ALI and ARDS were defined according to the American-European Consensus Conference . Patients were not eligible for the study if a diagnosis of ARDS had been established more than 3 days before evaluation, if younger than 18 or older than 89 years of age, if pregnant, if severe life-threatening hypoxia (PaO2/FiO2 ratio <60) was present, or a decision to perform extracorporeal gas exchange was taken. Furthermore, patients with elevated intracranial pressure, elevated intraabdominal pressure, unstable spine fractures, life-threatening arrhythmias, or hemodynamic deterioration in whom prone positioning was contraindicated or at least not advisable were excluded. Randomization was performed by opening sealed envelopes containing the allocation to group A or B. All patients were positioned in a low-airloss bed system before the first proning maneuver (ATP Therapulse; KCI Austria, Vienna, Austria). Prone positioning was performed by turning the patients around the longitudinal axis into complete (180 degree) prone position. The head was positioned by supporting one shoulder with a cushion and turning the head toward one side. Additional upright position was achieved by raising the head end and lowering the foot end of the bed to achieve an angle of at least 20 degrees (Figure 1). Cushions were positioned between the feet of the patient and the end of the bed to guard patients against sliding down. To exclude a time-dependent effect, patients were randomized into two groups: In both groups, basal measurements were performed in a supine position immediately before turning the patient prone; in group A, patients were kept in prone position without an upright position for 2 hours followed by 2 hours of prone-plus-upright position. In group B, patients were placed in an upright position immediately after turning them prone for 2 hours, followed by prone position without upright position for another 2 hours. Every hour, blood-gas analysis and measurement of dynamic and static compliance were performed. After this 4-hour period, patients in group A remained in prone-plus-upright position, and patients in group B in prone position without upright position for another 4 hours. A final assessment of gas exchange was performed (Figure 2). Compliance of the respiratory system was measured with the Bicore Monitoring System (Bicore CP 100, Bicore, Irvine, California, U.S.A.) by using a self-calibrating flow transducer connected to the endotracheal tube (Varflex; Bicore) and a balloon-equipped nasogastric tube to measure esophageal pressure (SmartCath; Bicore). The compliance of the respiratory system was obtained by the occlusion method by using the inspiratory and expiratory hold function of the ventilator (Servoi; Maquet, Solna, Sweden). All respiratory-mechanics data were obtained as an average of three measurements. The calculation of chest wall and lung compliance was performed according to . All patients were continuously monitored by ECG, pulse oximetry, and an indwelling arterial catheter. Blood-gas analysis was performed by using an automated blood-gas analyzer (ABL 700; Radiometer Company, Copenhagen, Denmark). Response was defined by an increase in the PaO2/FiO2 ratio of >10% from baseline. Mechanical ventilation was performed by using a time-cycled pressure-controlled mode. Positive end-expiratory pressure levels were adjusted in increments of 2 cm H2O to maintain the FiO2 at 0.6 or less with arterial oxygen saturation of >91%, if possible. The inspiration/expiration ratio was set to 1.0 in all patients. Peak inspiratory pressure (PIP) was kept to the lowest possible level to apply tidal volumes of 6 ml/kg ideal body weight. Respiratory rate was chosen to maintain the PaCO2 at levels to avoid respiratory acidosis at less than pH 7.25, as well as to avoid dynamic hyperinflation. Ventilator settings remained unchanged during the study period.
The primary end point of the study was a change in the PaO2/FiO2 ratio. Secondary end points were changes in PaCO2, as well as compliance of lung, chest wall, and the respiratory system. Continuous data are given as median and interquartile range. Nonparametric tests were chosen because of the small population studied. To compare groups, the Mann-Whitney U test was used for continuous variables. The Fisher Exact test was used to compare dichotomous variables.
To compare the changes in the different positions over time, a nonparametric one-way ANOVA for repeated measures (Friedman test) was used. Dunn's Multiple Comparison post test was used to compare pairs of time points.
Calculations were performed by a statistics software package (GraphPad Prism; GraphPad Software, San Diego, California, U.S.A.). Differences with a P level less than 0.05 were considered statistically significant.
To estimate patient number, a prospective calculation of power was performed during protocol design: Previous trials on the upright position report an increase of the PaO2/FiO2 ratio between 30 and 40 compared with that in the supine position. Our study was provided with a power of 90% at a two-sided significance level of 0.05 to detect changes in the PaO2/FiO2 ratio of at least 30.

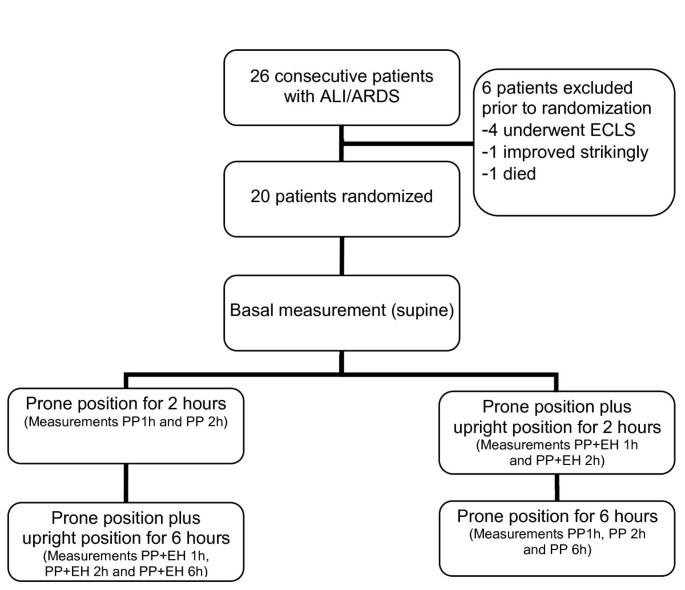

Twenty-six consecutive patients with ALI or ARDS were evaluated for inclusion. Six patients were excluded (Figure 2); 20 patients were randomized into the two groups, nine patients into group A, and 11 patients into group B. Patients' demographics and clinical data are presented in Table 1.
Fourteen (70%) patients were classified as responders to a prone position, whereas 17 (85%) patients responded to a prone-plus-upright position compared with a supine position (P = n.s.). Three patients not responding to a prone position improved only after additional upright positioning. Three patients were classified as nonresponders to either prone position only or an additional upright position. All six nonresponders to a prone position had pulmonary ARDS due to pneumonia. A response to a prone position tended to be associated with lower PaO2/FiO2 ratio at inclusion (Table 2).
No adverse effects leading to premature termination of the study were observed. All patients remained hemodynamically stable. In all study patients, changes in gas exchange did not necessitate adaptation of ventilator settings.

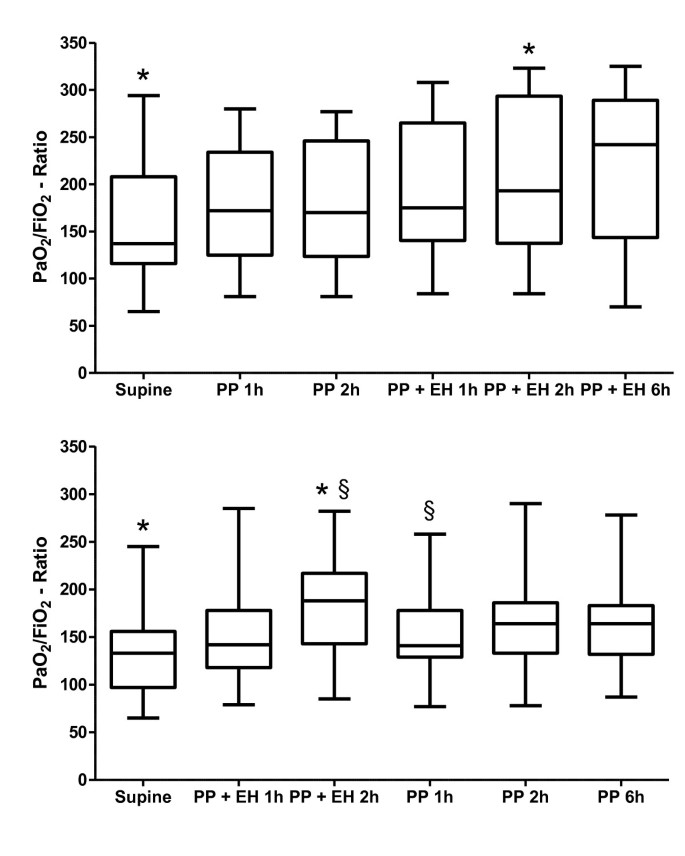

The PaO2/FiO2 ratio improved significantly from supine to prone position and further significantly increased with additional upright position (Table 3, Additional file 1, Figure S1). In group A, oxygenation continuously improved in a prone position, reaching a statistically significant difference compared with the supine position after 2 hours of additional upright position. In group B, the combination of prone and upright position led to a significant increase of oxygenation. This effect was reversed after 2 subsequent hours of prone position without head elevation. After they remained in a prone-plus-upright position for a further 4 hours in group A, we noted a tendency toward a further, yet not statistically significant increase in the PaO2/FiO2 ratio. In group B, the PaO2/FiO2 ratio after 4 additional hours in a prone position without an upright position remained at lower levels compared with prone-plus-upright position (Figure 3). The PaCO2 did not change significantly during the study period.
Analyzing the subgroup of the 16 patients with pulmonary ALI or ARDS due to pneumonia, we observed changes in the PaO2/FiO2 ratio compared with the whole cohort (Additional file 1, Table S1).
No statistically significant changes were found in total respiratory system static compliance, lung static compliance, and chest-wall static compliance comparing the different positions (Table 3). Chest-wall compliance tended to decrease in prone position, yet did not reach statistical significance. When we analyzed responders with respect to oxygenation only, also no statistically significant changes with respect to total respiratory system static compliance, lung static compliance, and chest-wall static compliance were observed (Additional file 1, Table S2).
Our results prove for the first time that combining upright with prone position in patients with ARDS can lead to additional improvement of oxygenation. Prone position exerts an improvement on oxygenation over time up to 12 hours or more . To exclude a time-dependent effect on gas exchange, patients were randomized into two groups alternating the sequence of positioning maneuvers. The deterioration of oxygenation after reversing upright position in group B seems to exclude such a time-dependent effect. In two patients in group A, however, the PaO2/FiO2 ratio deteriorated after establishing the upright position. Therefore, when turning a patient prone, it seems advisable to evaluate changes in oxygenation before adding the upright position to be able to differentiate between the effects of the methods.
Response with respect to oxygenation could be observed in most of our patients; three patients could be classified as responders only after adding the upright position. Response to proning was associated with a worse oxygenation, indicating a better effect in patients with more-severe ARDS. Eighty percent of our patients had pulmonary ARDS, including all nonresponders. Extrapolating our results to all ARDS patients, including those with extrapulmonary ARDS, therefore seems speculative. As pulmonary ARDS, however, has been reported to be associated with a worse response to upright and prone positioning , a comparable or even more-pronounced effect in patients with extrapulmonary ARDS could be possible. Notably, three of six patients with pulmonary ARDS not responding to proning improved only after adding the upright position. Therefore, adding the upright to the prone position seems a simple and advisable measure before classifying patients as nonresponders.
With regard to outcome, the prone position failed to improve outcome significantly in several large, randomized trials [12–14]. A recently published meta-analysis, however, showed favorable effects on survival in patients with severe ARDS with a PaO2/FiO2 ratio <100 . Most of our patients showed a higher PaO2/FiO2 ratio at inclusion. Interestingly, a higher response rate with respect to oxygenation was observed in patients with lower PaO2/FiO2 ratio and a tendency toward higher SAPS II scores, indicating more-severe illness. Obviously, with respect to oxygenation, these patients responded better to positioning maneuvers. Oxygenation has been shown, however, to be a poor surrogate parameter with respect to outcome , whereas a decrease in PaCO2 after prone position was associated with higher survival rates . Therefore, because of the low number of patients and the very short observation period, no conclusions with respect to any effect on outcome by applying the prone-plus-upright position can be derived from our data. It may be speculated, however, that the additional beneficial effects on gas exchange by modifying the prone position, as in our study, could enable a less-invasive ventilation strategy, thus leading to better survival [18–20].
The mechanisms by which upright position improves oxygenation are not completely clear. Hoste and co-workers  observed a significant improvement in oxygenation with the upright position and speculated about a resolution of dorsal atelectases and less pressure of the heart and lung tissue as underlying mechanisms . In this study, no changes in tidal volumes and compliance could be observed. Richard et al. , reporting a comparable improvement in oxygenation, additionally measured end-expiratory lung volume. Improvement of oxygenation was associated with an increase in end-expiratory lung volume, pointing toward alveolar recruitment or changes in the compliance of the respiratory system , whereas in this study in nonresponders, these effects were not observed. When analyzing our subgroup of 16 responders, however, no significant changes in compliance could be observed as well (Additional file 1, Table S2). Recruitment by prone positioning, however, does not necessarily lead to increase of compliance . It has been hypothesized that recruitment by prone position is indicated by a decrease of PaCO2 . In the upright-position studies Hoste and co-workers  did not observe changes in PaCO2, whereas the second study did not report PaCO2 values . Thus, as we were not able to detect significant changes in the compliance of lungs and chest wall as well as PaCO2, respectively, changes in neither lung volume nor recruitment as possible mechanisms leading to improved oxygenation can be derived from our data. It can therefore only be speculated that a caudal shift of the diaphragm  leads to redistribution of ventilation and perfusion, thus optimizing the ventilation-perfusion relation. By turning a patient prone, improvement of the ventilation-perfusion relation is known to be a major factor contributing to improved gas exchange: although resolution of dorsal atelectases leads to better ventilation and recruitment, perfusion is less gravitation dependent and more evenly distributed in the prone than in the supine position, leading to a decrease in ventilation-perfusion mismatch [22, 23]. It must be taken into account, however, that in both studies investigating the effects of supine upright position, head-elevation angles between 40 and 45 degrees were reached, whereas in our study, only angles between 20 and 30 degrees could be achieved. During the prone position, head elevation of more than 30 degrees can hardly be reached with standard bed systems, as in the prone position, only a reverse Trendelenburg position (combined with minimal additional elevation of the bed head at the best) can be performed. These lower angles could have led to less-pronounced effects on lung mechanics, more difficult to detect.
It should be noticed that we cannot estimate the long-term effects of combining the upright and prone positions, as our measurements were restricted to an 8-hour period. In the studies investigating the effects of the supine upright position, Richard and co-workers  measured short = term effects over a 2-hour period only; in the second study, patients improved over a period of 12 hours . Prone position could be shown to lead to a sustained improvement of oxygenation even after a period of 12 hours . Therefore, sustained beneficial long-term effects on oxygenation when combining both methods may be expected, yet cannot be derived from our data.
Conclusively, the prone position and the additional upright position may exert additive beneficial effects on oxygenation in patients with ARDS and could be attempted routinely when deciding to turn a patient prone. Upright-prone position is a feasible, easy method to improve oxygenation in patients with ARDS. Strict observation of the effects of each positioning maneuver is mandatory because individual responses may vary greatly.
Combining prone position and upright position may improve oxygenation in patients with ARDS.
Individual response to each positioning maneuver varies and makes strict observation mandatory.
acute lung injury
acute respiratory distress syndrome
compliance (chest wall)
intensive care unit
lung injury score
- SAPS II:
simplified acute physiology score
peak inspiratory pressure
Erickson SE, Martin GS, Davis JL, Matthay MA, Eisner MD: Recent trends in acute lung injury mortality: 1996-2005. Crit Care Med 2009, 37: 1574-1579. 10.1097/CCM.0b013e31819fefdf
Frutos-Vivar F, Nin N, Esteban A: Epidemiology of acute lung injury and acute respiratory distress syndrome. Curr Opin Crit Care 2004, 10: 1-6.
Goss CH, Brower RG, Hudson LD, Rubenfeld GD: Incidence of acute lung injury in the United States. Crit Care Med 2003, 31: 1607-1611. 10.1097/01.CCM.0000063475.65751.1D
Rouby JJ, Puybasset L, Nieszkowska A, Lu Q: Acute respiratory distress syndrome: lessons from computed tomography of the whole lung. Crit Care Med 2003, 31: S285-S295. 10.1097/01.CCM.0000057905.74813.BC
Suter PM: Reducing ventilator-induced lung injury and other organ injury by the prone position. Crit Care 2006, 10: 139. 10.1186/cc4898
Pelosi P, Tubiolo D, Mascheroni D, Vicardi P, Crotti S, Valenza F, Gattinoni L: Effects of the prone position on respiratory mechanics and gas exchange during acute lung injury. Am J Respir Crit Care Med 1998, 157: 387-393.
Mentzelopoulos SD, Roussos C, Zakynthinos SG: Prone position reduces lung stress and strain in severe acute respiratory distress syndrome. Eur Respir J 2005, 25: 534-544. 10.1183/09031936.05.00105804
Hoste EA, Roosens CD, Bracke S, Decruyenaere JM, Benoit DD, Vandewoude KH, Colardyn FA: Acute effects of upright position on gas exchange in patients with acute respiratory distress syndrome. J Intensive Care Med 2005, 20: 43-49. 10.1177/0885066604271616
Richard JC, Maggiore SM, Mancebo J, Lemaire F, Jonson B, Brochard L: Effects of vertical positioning on gas exchange and lung volumes in acute respiratory distress syndrome. Intensive Care Med 2006, 32: 1623-1626. 10.1007/s00134-006-0299-y
Bernard GR, Artigas A, Brigham KL, Carlet J, Falke K, Hudson L, Lamy M, Legall JR, Morris A, Spragg R: The American-European Consensus Conference on ARDS. Definitions, mechanisms, relevant outcomes, and clinical trial coordination. Am J Respir Crit Care Med 1994, 149: 818-824.
McAuley DF, Giles S, Fichter H, Perkins GD, Gao F: What is the optimal duration of ventilation in the prone position in acute lung injury and acute respiratory distress syndrome? Intensive Care Med 2002, 28: 414-418. 10.1007/s00134-002-1248-z
Taccone P, Pesenti A, Latini R, Polli F, Vagginelli F, Mietto C, Caspani L, Raimondi F, Bordone G, Iapichino G, Mancebo J, Guerin C, Ayzac L, Blanch L, Fumagalli R, Tognoni G, Gattinoni L: Prone positioning in patients with moderate and severe acute respiratory distress syndrome: a randomized controlled trial. JAMA 2009, 302: 1977-1984. 10.1001/jama.2009.1614
Gattinoni L, Tognoni G, Pesenti A, Taccone P, Mascheroni D, Labarta V, Malacrida R, Di Giulio P, Fumagalli R, Pelosi P, Brazzi L, Latini R: Effect of prone positioning on the survival of patients with acute respiratory failure. N Engl J Med 2001, 345: 568-573. 10.1056/NEJMoa010043
Guerin C, Gaillard S, Lemasson S, Ayzac L, Girard R, Beuret P, Palmier B, Le QV, Sirodot M, Rosselli S, Cadiergue V, Sainty JM, Barbe P, Combourieu E, Debatty D, Rouffineau J, Ezingeard E, Millet O, Guelon D, Rodriguez L, Martin O, Renault A, Sibille JP, Kaidomar M: Effects of systematic prone positioning in hypoxemic acute respiratory failure: a randomized controlled trial. JAMA 2004, 292: 2379-2387. 10.1001/jama.292.19.2379
Sud S, Friedrich JO, Taccone P, Polli F, Adhikari NK, Latini R, Pesenti A, Guerin C, Mancebo J, Curley MA, Fernandez R, Chan MC, Beuret P, Voggenreiter G, Sud M, Tognoni G, Gattinoni L: Prone ventilation reduces mortality in patients with acute respiratory failure and severe hypoxemia: systematic review and meta-analysis. Intensive Care Med 2010, 36: 585-599. 10.1007/s00134-009-1748-1
The Acute Respiratory Distress Syndrome Network: Ventilation with lower tidal volumes as compared with traditional tidal volumes for acute lung injury and the acute respiratory distress syndrome. N Engl J Med 2000, 342: 1301-1308.
Gattinoni L, Vagginelli F, Carlesso E, Taccone P, Conte V, Chiumello D, Valenza F, Caironi P, Pesenti A: Decrease in PaCO 2 with prone position is predictive of improved outcome in acute respiratory distress syndrome. Crit Care Med 2003, 31: 2727-2733. 10.1097/01.CCM.0000098032.34052.F9
Hager DN, Krishnan JA, Hayden DL, Brower RG: Tidal volume reduction in patients with acute lung injury when plateau pressures are not high. Am J Respir Crit Care Med 2005, 172: 1241-1245. 10.1164/rccm.200501-048CP
Broccard AF, Shapiro RS, Schmitz LL, Ravenscraft SA, Marini JJ: Influence of prone position on the extent and distribution of lung injury in a high tidal volume oleic acid model of acute respiratory distress syndrome. Crit Care Med 1997, 25: 16-27. 10.1097/00003246-199701000-00007
Valenza F, Guglielmi M, Maffioletti M, Tedesco C, Maccagni P, Fossali T, Aletti G, Porro GA, Irace M, Carlesso E, Carboni N, Lazzerini M, Gattinoni L: Prone position delays the progression of ventilator-induced lung injury in rats: does lung strain distribution play a role? Crit Care Med 2005, 33: 361-367. 10.1097/01.CCM.0000150660.45376.7C
Klingstedt C, Hedenstierna G, Lundquist H, Strandberg A, Tokics L, Brismar B: The influence of body position and differential ventilation on lung dimensions and atelectasis formation in anaesthetized man. Acta Anaesthesiol Scand 1990, 34: 315-322. 10.1111/j.1399-6576.1990.tb03094.x
Jones AT, Hansell DM, Evans TW: Pulmonary perfusion in supine and prone positions: an electron-beam computed tomography study. J Appl Physiol 2001, 90: 1342-1348. 10.1063/1.1376404
Nyren S, Radell P, Lindahl SG, Mure M, Petersson J, Larsson SA, Jacobsson H, Sanchez-Crespo A: Lung ventilation and perfusion in prone and supine postures with reference to anesthetized and mechanically ventilated healthy volunteers. Anesthesiology 2010, 112: 682-687. 10.1097/ALN.0b013e3181cf40c8
The authors declare that they have no competing interests.
OR and TS made substantial contributions to conception and design, acquisition of data, analysis and interpretation of data, and writing the manuscript. PS was involved in drafting the manuscript and revising it critically for important intellectual content. KL and GL were involved in drafting the manuscript and revising it critically for important intellectual content and furthermore made contributions to planning the study and statistical analysis. AB made contributions to planning the study and statistical analysis. All authors read and approved the final manuscript for publication.
