Open Access

Global end-diastolic volume acquired by transpulmonary thermodilution depends on age and gender in awake and spontaneously breathing patients

  • Stefan Wolf1, 3Email author,
  • Alexander Rieß2,
  • Julia F Landscheidt1,
  • Christianto B Lumenta1,
  • Patrick Friederich2 and
  • Ludwig Schürer1
Critical Care200913:R202

DOI: 10.1186/cc8209

Received: 15 August 2009

Accepted: 14 December 2009

Published: 14 December 2009

Abstract

Introduction

Volumetric parameters acquired by transpulmonary thermodilution had been repeatedly proven superior to filling pressures for estimation of cardiac preload. Up to now, the proposed normal ranges were never studied in detail. We investigated the relationship of the global end-diastolic volume (GEDV) acquired by transpulmonary thermodilution with age and gender in awake and spontaneously breathing patients.

Methods

Patients requiring brain tumor surgery were equipped prospectively with a transpulmonary thermodilution device. On postoperative day one, thermodilution measurements were performed in 101 patients ready for discharge from the ICU. All subjects were awake, spontaneously breathing, hemodynamically stable and free of catecholamines.

Results

Main finding was a dependence of GEDV on age and gender, height and weight of the patient. Age was a highly significant non-linear coefficient for GEDV with large inter-individual variance (p < 0.001). On average, GEDV was 131.1 ml higher in males (p = 0.027). Each cm body height accounted for 13.0 ml additional GEDV (p < 0.001). GEDV increased by 2.90 ml per kg actual body weight (p = 0.043). Each cofactor, including height and weight, remained significant after indexing GEDV to body surface area using predicted body weight.

Conclusions

The volumetric parameter GEDV shows a large inter-individual variance and is dependent on age and gender. These dependencies persist after indexing GEDV to body surface area calculated with predicted body weight. Targeting resuscitation using fixed ranges of preload volumes acquired by transpulmonary thermodilution without concern to an individual patient's age and gender seems not to be appropriate.

Introduction

Therapy of severe circulatory dysfunction is dependent on a reliable estimation of cardiac preload. Transpulmonary thermodilution offers accurate measurement of cardiac output (CO) and the assessment of preload filling volumes. In comparison with central venous pressure and pulmonary capillary wedge pressure, estimation of preload using transpulmonary thermodilution derived global end-diastolic volume (GEDV) or intrathoracic blood volume (ITBV) has been repeatedly proven to be superior [15]. Consistently, filling pressures are considered inadequate for guiding volume therapy [6].

GEDV is a hypothetical volume that assumes the four cardiac chambers are simultaneously in diastole [1]. ITBV represents the thoracic vascular distributional volume of a dye indicator injected in to a central vein [3]. GEDV and ITBV are closely related [2, 7, 8]. As GEDV can be determined more easily using cold saline [2], ITBV is estimated from GEDV in clinical routine. For clinical use and to compare individual patients, GEDV and ITBV are indexed to body surface area, yielding GEDV index (GEDVI) and ITBV index (ITBVI). Lower values of GEDVI or ITBVI are more frequently detected in volume-depleted patients [1]. These patients are likely to respond with an increase in cardiac index (CI) to a volume challenge. This is accompanied by an increase in GEDVI or ITBVI, whereas changes of CI induced by application of inotropic drugs leave GEDVI or ITBVI unchanged [1].

Further clinical validation of GEDVI was performed using transesophageal echocardiography [913]. Compared with continuous end-diastolic volume index, as well as left and right heart end-diastolic volume indices derived by modified pulmonary artery catheters, changes in GEDVI gave a better reflection of changes in cardiac preload in response to a volume challenge. Numeric values of GEDVI and echocardiographic volume indices show only a moderate correlation [9, 10], explained in part by different techniques used for echocardiographic volume calculation [14].

Despite the usefulness of GEDV and ITBV for assessment of hemodynamic status, no validation study for the numeric values of these parameters has been carried out so far. Reference ranges for their indexed values were proposed by expert opinion to be 680 to 800 ml/m2 for GEDVI and 850 to 1000 ml/m2 for ITBVI. In a retrospective study, we found a considerable number of patients deviating from these proposed normal ranges, although clinically appearing adequately volume resuscitated [15]. The aim of the current study was to investigate the hypothesis that GEDVI acquired by transpulmonary thermodilution depends on age and gender in awake and spontaneously breathing subjects.

Materials and methods

The study was approved by the Ethics Committee of the Bayerische Landesärztekammer, Munich, Germany. Informed consent was obtained from all patients.

Study population

We included patients requiring elective brain tumor surgery at the Department of Neurosurgery, Klinikum Bogenhausen, a 1000-bed teaching hospital of the Technische Universität München, Germany. For perioperative monitoring and maintenance of anesthesia, patients undergoing craniotomy are routinely equipped with a central venous and an arterial line as standard of care in our department. Instead of the regular arterial line, a five french thermodilution catheter (PULSION PVPK2015L20-46N, PULSION Medical Systems AG, Munich, Germany) was placed in a femoral artery at induction of anesthesia and connected to a PiCCOplus thermodilution monitor (Version 7.0; PULSION Medical Systems AG, Munich, Germany).

Patients had to be at least 18 years old and to give informed consent to be included in the study. Exclusion criteria were inability or unwillingness to participate, missing or withdrawn informed consent, chronic atrial fibrillation, and known heart failure or pulmonary disease with dyspnea requiring supplemental oxygen. At study inclusion, the patient's body height and weight were measured.

Thermodilution principle

After injection of a bolus of ice-cold saline through the central venous line into the right atrium, CO is computed from the area under the thermodilution curve obtained by a thermistor at the tip of the arterial catheter [16]. Temporal analysis of the thermodilution curve allows calculation of the central blood volumes [17]. The mean transit time (MTt) is the mean time from the start of injection to detection of the indicator by the arterial sensor, adjusted for recirculation [17]. The downslope time (DSt) describes the exponential decay of the thermodilution curve after its maximum [17]. Multiplication of the MTt with CO equals the total volume marked by the thermal indicator, the intrathoracic thermal volume (ITTV) [17]. Multiplication of the DSt with CO represents the largest compartment of the sequential mixing chambers of the thermal indicator, the pulmonary thermal volume (PTV) [17]. The difference between ITTV and PTV equals the GEDV [1]. ITBV is extrapolated by multiplying GEDV by a fixed factor of 1.25, offering acceptable accuracy in the clinical setting [18]. The difference between the ITTV and the ITBV equals the extravascular lung water (EVLW) [2].

Data acquisition and processing

All monitoring data was stored using the PiCCOWin software (Version 7.0, PULSION Medical Systems AG, Munich, Germany). CO was indexed with body surface area (BSA) calculated from actual body weight and height. GEDV was indexed with BSA using measured height and predicted body weight (PBW), calculated differently for males and females: PBW male = 50 + 0.91 × (height cm - 152.4)and PBW female = 45.5 + 0.91 × (height cm - 152.4) [19]. BSA was determined by the Du Bois equation: BSA = 0.007184 × length cm 0.725 × weight kg 0.425 [20]. EVLW was indexed with PBW [21, 22]. These calculations are performed automatically by the PiCCOplus device and not amenable for end user adjustment. From the monitor raw data, MTt and DSt were extracted.

Study protocol

Preoperatively, patients were fasted overnight. Induction and maintenance of anesthesia, surgery and postoperative surveillance on the neurosurgical intensive care unit were performed as per the standards for our department and independent from the study. Thermodilution measurements were performed at least triplicate with 20 ml of iced saline and the mean of a series was taken. The current analysis considers the measurements performed in the morning before discharge of the patients from the ICU on the first postoperative day. Patients not ready for discharge on postoperative day one were excluded.

Study size

Study size was planned using a bootstrapping strategy [23] on our previously analyzed retrospective data [15]. To achieve a power of above 85% for concurrent investigation of the dependencies of GEDV/GEDVI on age and sex, we aimed for analysis of at least 100 patients. This was reached after inclusion of 125 patients between July 2007 and June 2008.

Statistical analysis

For statistical analysis we used the statistical environment R 2.8.1 [24].

The repeatability coefficient was defined as standard deviation divided by the mean of a measurement series.

Univariate analysis was performed using the Kruskal-Wallis-Test for CO, GEDV, GEDVI, MTt and DSt against predefined age groups in decades. The Welch t-test with correction for variance heterogeneity was used to compare the target parameters against gender and to screen for the impact of comorbidities and chronic medication. Gender differences in comorbidities and chronic medication were analyzed using the Chi square test or Fisher's exact test, as appropriate.

As GEDV and GEDVI showed no linear relationship with age, multivariate analysis was applied using generalized additive models [25] with GEDV and GEDVI as targets. Age was fitted with non-linear smoothing, sex as a factor, and height and actual body weight as linear explanatory variables. The combination of single parameters and their possible interactions were compared using significance values and the minimized Akaike Information Criterion [26].

Results

On postoperative day 1, 101 patients were discharged and included in the study (Figure 1). Their demographic data, neurosurgical diagnosis and comorbidities, as well as preoperative medication are shown in Table 1. Age and body height were negatively correlated (r = -0.25, P = 0.011), while age and body weight showed a positive correlation (r = 0.18, P = 0.07).
https://static-content.springer.com/image/art%3A10.1186%2Fcc8209/MediaObjects/13054_2009_Article_7627_Fig1_HTML.jpg
Figure 1

Flow of patient recruitment. ICU = intensive care unit; MRI = magnetic resonance imaging; POD = postoperative day.

Table 1

Preoperative comorbidities and demographic data



all patients

male

female



N

101

41

60

P value

Age [years] (range)

57 (21-83)

58 (24-79)

56 (21-83)

0.314

ASA score (range)

2 (1-3)

2 (1-3)

2 (1-3)

0.904

Height [cm] (range)

170 (151-194)

177 (163-194)

165 (151-182)

< 0.001

Weight [kg] (range)

78 (47-125)

84 (64-125)

73 (47-120)

< 0.001

BMI [kg/m2] (range)

26.83 (19.02-43.55)

27.09 (20.66-39.18)

26.66 (19.02-43.55)

0.131

BSA [m2] (range)

1.73 (1.37-2.19)

1.88 (1.64-2.19)

1.63 (1.37-1.93)

< 0.001

PBW [kg] (range)

63.2 (44.23-87.67)

72 (59.6-87.67)

57.2 (44.23-72.3)

0.195

Tumor entities



Glioblastoma

15



Astrocytoma

11



Neurinoma

6



Meningeoma

27



Angioma

7



Metastasis

16



Pituitary

7



Other

12



Preoperative comorbidities



Hypertension (%)

31 (30.7)

12 (29.3)

19 (31.8)

0.991

Myocardial infarction (%)

3 (3.0)

3 (7.3)

0

0.063

Stroke (%)

3 (3.0)

3 (7.3)

0

0.063

Adipositas (%)

11 (10.9)

4 (9.8)

7 (11.8)

1

Current smoker (%)

13 (12.9)

7 (17.1)

6 (10)

0.312

Preoperative medication



ACE inhibitors (%)

19 (18.8)

8 (19.5)

11 (18.3)

0.927

β-blockers (%)

18 (17.8)

8 (19.5)

10 (16.7)

0.904

Proton pump inhibitors (%)

28 (27.7)

11 (26.8)

17 (28.3)

0.932

Anticonvulsives (%)

19 (18.8)

6 (14.6)

13 (21.7)

0.541

Diuretics (%)

14 (13.8)

6 (14.6)

8 (13.3)

0.927

Calcium antagonist (%)

7 (7.0)

5 (12.2)

2 (3.3)

0.115

Steroids (%)

37 (36.6)

18 (43.9)

19 (31.7)

0.280

Statins (%)

5 (5.0)

3 (7.3)

2 (3.3)

0.391

ACE = angiotensin converting enzyme; ASA = American Society of Anesthesiologists; BMI = body mass index; BSA = body surface area; n = number of patients; PBW = predicted body weight.

The median repeatability coefficient of all thermodilution series for CO was 6.0% (interquartile range (IQR) = 3.9% to 9.4%), for GEDV 7.4% (IQR = 5.4% to 10.5%), for MTt 4.0% (IQR = 2.5% to 6.1%) and for DSt 7.1% (IQR = 4.2% to 11.1%).

Univariate analysis of GEDV and GEDVI showed significant differences between age groups (Figures 2a, b). The mean GEDV and GEDVI were significantly different between genders (Figures 3a, b).
https://static-content.springer.com/image/art%3A10.1186%2Fcc8209/MediaObjects/13054_2009_Article_7627_Fig2_HTML.jpg
Figure 2

(a) Global end-diastolic volume (GEDV) and (b) global end-diastolic volume index (GEDVI) versus age in predefined groups (univariate comparison).

https://static-content.springer.com/image/art%3A10.1186%2Fcc8209/MediaObjects/13054_2009_Article_7627_Fig3_HTML.jpg

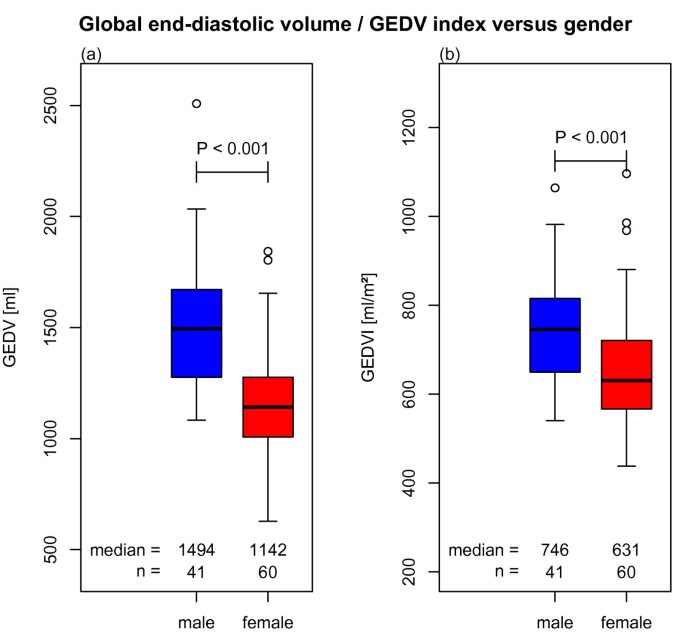

Figure 3

(a) Global end-diastolic volume (GEDV) and (b) global end-diastolic volume index (GEDVI) versus gender (univariate comparison).

The parameters CO, MTt and DSt are determinants of GEDV and their relationship with age and gender was examined. MTt was significantly different between age groups, with increasing values in higher decades (P = 0.0029). CO and DSt showed no significant difference between age groups (P = 0.36 and P = 0.067, respectively). CO and MTt were significantly higher in male patients (P = 0.004 and P = 0.05, respectively, Table 2). DSt showed no significant difference between genders (P = 0.3, Table 2).
Table 2

Hemodynamic parameters at discharge from the ICU



all patients

male

female




mean (SD)

n

mean (SD)

n

mean (SD)

n

P value

APsys [mmHg]

139 (20)

98

141 (20)

39

138 (21)

59

0.559

APmean [mmHg]

94 (15)

98

96 (16)

39

93 (14)

59

0.324

APdia [mmHg]

66 (13)

98

68 (14)

39

65 (13)

59

0.141

HR [1/min]

77 (13)

98

74 (14)

39

79 (13)

59

0.074

CO [l/min]

7.16 (1.38)

101

7.55 (1.51)

41

6.78 (1.2)

60

0.004

CI [l/min/m 2 ]

3.81 (0.63)

101

3.93 (0.6)

41

3.82 (0.6)

60

0.890

MTt [seconds]

18.5 (0.91)

101

19.5 (0.94)

41

17.9 (0.89)

60

0.05

DSt [seconds]

7.37 (0.63)

101

7.38 (0.63)

41

7.36 (0.71)

60

0.3

GEDV [ml]

1307 (310)

101

1509 (296)

41

1167 (235)

60

< 0.001

GEDVI [ml/m 2 ]

693 (137)

101

750 (130)

41

653 (128)

60

< 0.001

ITBV [ml]

1634 (338)

101

1887 (370)

41

1459 (239)

60

< 0.001

ITBVI [ml/m 2 ]

866 (171)

101

938(162)

41

816 (160)

60

< 0.001

EVLW [ml]

526 (164)

101

533 (97)

41

526 (200)

60

0.80

EVLWI [ml/kg]

8.5 (3.0)

101

7.4 (1.2)

41

9.3 (3.6)

60

< 0.001

SVR [dyn*s*cm -5 ]

1072 (517)

98

1035 (485)

39

1097 (539)

59

0.317

SVRI [dyn*s*cm -5 m -2 ]

2001 (921)

98

2054 (829)

39

1965 (983)

59

0.374

fluid balance [ml]

1743 (1431)

100

1664 (1442)

41

1798 (1447)

59

0.911

Apdia = diastolic arterial pressure; APmean = mean arterial pressure; APsys = systolic arterial pressure; CI = cardiac index; CO = cardiac output; DSt = downslope time; EVLW = extravascular lung water; EVLWI = extravascular lung water index; GEDV = global end-diastolic volume; GEDVI = global end-diastolic volume index; HR = heart rate; ICU = intensive care unit; ITBV = intrathoracic volume; ITBVI = intrathoracic volume index; MTt = mean transit time; n = number of patients; SD = standard deviation; SVR = systemic vessel resistance; SVRI = systemic vessel resistance index.

The EVLW is a further derivative of CO, MTt and DSt. In contrast to GEDV, EVLW showed no significant difference between age groups and gender (P = 0.24 and P = 0.81, respectively, Table 2). Indexed to PBW, EVLWI was significantly higher in females (P < 0.001, Table 2), but not significantly different between age groups (P = 0.13).

Table 3 lists mean GEDV and GEDVI according to comorbidities and chronic medication. A significant difference was found for patients treated with statins. These patients were considerably older than the whole collective (71.8 years vs. 56.9 years, P < 0.001). As statin medication concerned five patients only, further analysis on subgroups or splitting on gender did not seem appropriate.
Table 3

GEDV and GEDVI according to comorbidities and preoperative medication



GEDV [ml]



GEDVI [ml/m2]



Comorbidities

yes

no

P value

yes

no

P value



mean (SD)

mean (SD)



mean (SD)

mean (SD)



Hypertension

1384 (288)

1276 (317)

0.100

717 (140)

684 (135)

0.281

Myocardial infarction

1660 (172)

1299 (309)

0.056

810 (69)

691 (69)

0.082

Stroke

1754 (224)

1296 (304)

0.064

866 (101)

689 (13)

0.086

Adipositas

1378 (261)

1301 (317)

0.390

650 (87)

700 (141)

0.115

Smoker

1252 (255)

1313 (338)

0.467

659 (91)

697 (146)

0.230

Medication



ACE-inhibitors

1441 (304)

1279 (313)

0.051

719 (144)

689 (135)

0.417

β-blockers

1389 (256)

1292 (321)

0.179

725 (140)

687 (136)

0.310

Proton pump inhibitors

1240 (239)

1337 (333)

0.111

665 (100)

706 (148)

0.117

Anticonvulsives

1223 (263)

1331 (319)

0.134

666 (128)

701 (139)

0.299

Diuretics

1426 (332)

1291 (305)

0.171

690 (133)

722 (158)

0.475

Ca2+antagonists

1571 (338)

1290 (302)

0.072

788 (168)

688 (133)

0.210

Steroids

1375 (378)

1271 (259)

0.148

723 (163)

677 (116)

0.137

Statins

1619 (305)

1293 (278)

0.057

849 (124)

686 (133)

0.041

ACE = angiotensin converting enzyme; GEDV = global end-diastolic volume; GEDVI = global end-diastolic volume index; SD = standard deviation.

In multivariate modeling, the relationship of GEDV and GEDVI with age was highly significant and non-linear (Figures 4a, b). Male patients showed a mean GEDV of 131.1 ml more than females (95% confidence interval = 16.1 ml to 256.2 ml, P = 0.027). On average, each cm in body height accounted for an increase of 13.0 ml of GEDV (95% confidence interval = 6.2 ml to 19.8 ml, P < 0.001). Each kg actual body weight increased GEDV by 2.9 ml (95% confidence interval = 0.14 ml to 5.72 ml, P = 0.043).
https://static-content.springer.com/image/art%3A10.1186%2Fcc8209/MediaObjects/13054_2009_Article_7627_Fig4_HTML.jpg

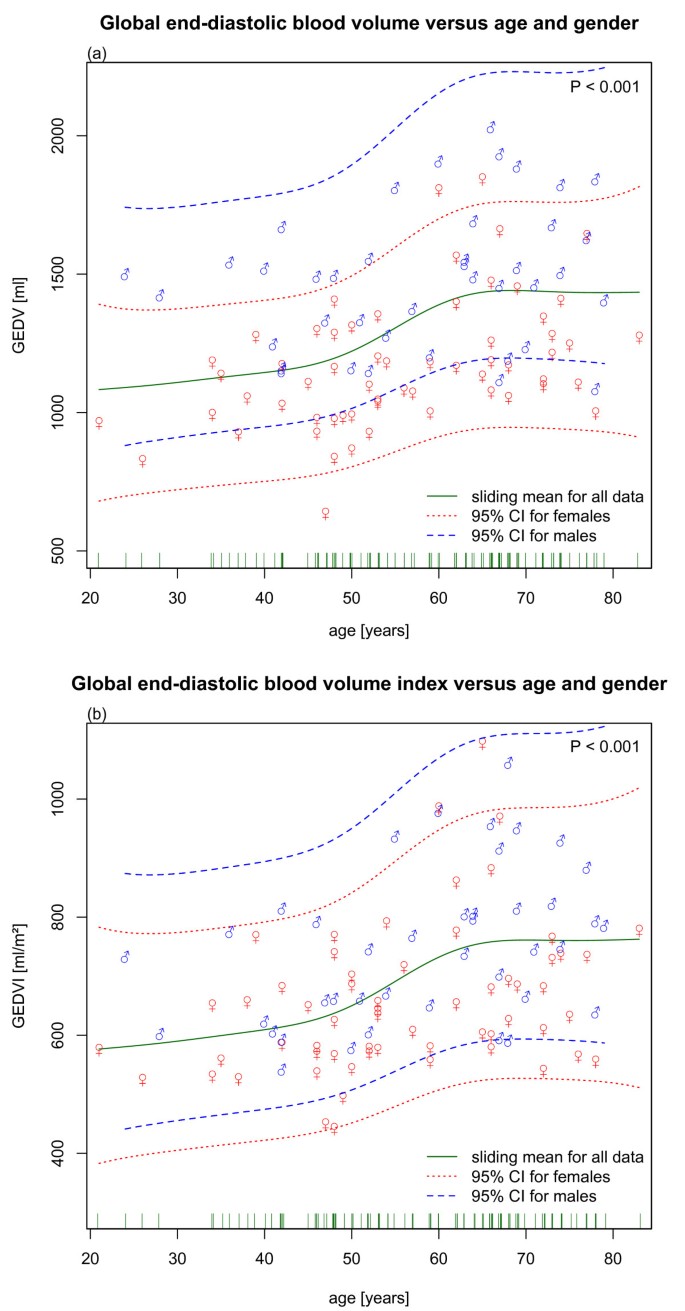

Figure 4

(a) Global end-diastolic volume (GEDV) and (b) global end-diastolic volume index (GEDVI) versus age using a generalized additive model. The continuous line represents the highly significant non-linear relationship for all data (P < 0.0001). The dotted and dashed lines show the 95% confidence interval (CI) for females and males. Single data points are shown with male and female symbols.

After indexing GEDV to PBW, significant relationships for gender, size and weight persisted. On average, male sex accounted for a GEDVI increase of 67.3 ml/m2 (95% confidence interval = 5.5 ml/m2 to 134.5 ml/m2, P = 0.035). GEDVI increased by 3.7 ml/m2 per cm height (95% confidence interval = 0.09 ml/m2 to 7.38 ml/m2, P = 0.047). Weight was negatively correlated with GEDVI (-2.0 ml/m2 per kg, 95% confidence interval = -3.50 ml/m2 to -0.50 ml/m2, P = 0.010).

Adding interactions between coefficients as well as non-linear smoothing for height and weight did not improve the prediction models for GEDV and GEDVI. Adding statin medication as cofactor, which was suggested from the univariate results, showed no significant effect in multivariate analysis (P = 0.13 and P = 0.15, respectively).

Table 4 lists mean ranges for GEDVI values calculated with the final multivariate model according to the age groups defined for univariate analysis. As expected from Figure 4, the confidence intervals overlap considerably between groups and show a monotonous increase in mean value and width for higher age in both sexes.
Table 4

GEDVI means with 95% confidence intervals for males and females according to age groups



GEDVI [ml/m2]

Age [years]

mean male (95% CI)

mean female (95% CI)

<= 40

633 (456-880)

559 (402-779)

41-50

667 (485-916)

592 (432-812)

51-60

736 (536-1011)

654 (478-897)

61-70

802 (585-1101)

713 (520-977)

>70

812 (590-1117)

720 (520-997)

CI = confidence interval; GEDVI = global end-diastolic volume index

Univariate examination suggested a possible gender difference for EVLWI. Therefore, we performed an additional multivariate exploration with the predictors significant for GEDVI. Using stepwise deletion of the least important factor, the only parameter remaining significantly correlated with EVLWI was height (-0.11 ml/kg per cm, P = 0.001), while weight, gender and age showed no significant relationship (P = 0.65, P = 0.40, P = 0.10, respectively, in sequence of deletion).

Discussion

The main finding of the current study is the dependence of the preload values GEDV and GEDVI on age and gender. Furthermore, our results show a large inter-individual variance, reflected in wide confidence intervals for the age-dependent means. The previously known and rather narrow normal ranges for GEDVI were defined on expert opinion only. As ITBV is calculated using GEDV and a fixed transformation factor, our findings also apply to ITBV and ITBVI estimated by single transpulmonary thermodilution.

The patients included in our study were without known hemodynamically relevant cardiopulmonary pathology in their medical history. For this reason, we did not perform routine echocardiography or a stress electrocardiogram for study inclusion. Admission to intensive care unit (ICU) was performed for postoperative safety reasons and not due to hemodynamic instability. No patient required vasoactive drugs or inotropic support when the thermodilution measurements were performed. All patients were breathing spontaneously and were discharged from the ICU shortly afterwards. We believe that our cohort resembles a representative normal cross-section of adults. Consequently, our data presents the first clinical series of values for the preload volumes GEDV and GEDVI in this population.

Physiologic rationale

Analysis of the time parameters MTt and DSt from the transpulmonary thermodilution raw data revealed that MTt increases with age, while DSt shows no significant difference. Therefore, the ITTV derived from MTt increases with age and is higher in males. In contrast, the PTV derived from the DSt is independent of age and gender.

The difference between the thermal volumes ITTV and PTV equals the GEDV. Despite its name, the GEDV also includes the volume of the aorta from the aortic valve to the tip of the arterial thermistor [27]. The femoral catheter used in our study, and in most other investigations on transpulmonary thermodilution, has a length of 20 cm. In an adult it is placed with its tip roughly at the iliac bifurcation. It is well known that the aortic diameter increases with age and is larger in males than females [2832]. Mao and colleagues studied 1442 consecutive asymptomatic subjects scheduled for coronary computed tomography (CT) angiography [28]. Measured with aortic contrast CT, the upper normal limits of the diameter of the ascending aorta were 35.6, 38.3 and 40 mm for females and 37.8, 40.5 and 42.6 mm for males in age groups 20 to 40, 41 to 60 and older than 60 years, respectively. Using an estimated aortic length of 50 cm, a 5 mm increase in luminal diameter would result in approximately 150 ml additional volume. This increase would explain the major part of our findings but does not take into account aortic elongation in elderly subjects [33]. The consequence, again, would be increased distribution volume of the thermal indicator [34].

End-systolic and end-diastolic volumes, measured with cardiac magnetic resonance tomography, are higher in male compared with female patients [3540]. We also found comparable gender differences in GEDV in our study. Seemingly in contrast to our results, a decrease in cardiac volumes with age is described [35, 3739]. As we did not perform cardiac imaging in our patients, we are unable to further explain these findings. It is, however, conceivable that the increase in aortic diameter and length may offset the decrease in cardiac volume in older patients.

Indexing problems

Indexing of hemodynamic variables is performed to remove differences between subjects for gender, weight and height. Therefore, theoretically, no significant contribution of any of these factors should persist. However, the contrary is found in our data and the literature [3541]. Using BSA calculated with PBW for indexing of GEDV, yielding GEDVI, the influence of gender, height and weight remained significant confounders. PBW is dependent on gender and body height [19], but not on actual body weight. The negative correlation of GEDVI with weight in our multivariate analysis suggests that the indexing method overcorrects for heavier subjects.

Likewise, indexing EVLW using gender-specific PBW explains at least part of the higher female EVLWI values in our data. If indexing would be performed equally for both sexes instead of using a gender-specific formula, the difference in EVLWI, but not in GEDVI, would diminish (data not shown). Multivariate analysis with the predictors significant for GEDVI shows that height is negatively correlated with EVLWI, while gender, age and weight have no significant relationships. Therefore, we do not think there is sufficient evidence for a true EVLWI gender difference. The finding in univariate analysis is likely to be related to indexing of EVLW with PBW, which seems overly corrective for larger - more likely to be male - subjects.

Clinical implications

The results of the current study imply that the use of the fixed normal ranges for targeting volumetric therapy is misleading. Although younger patients and females might get severely overhydrated aiming for the proposed normal ranges, older patients may erroneously be deprived of necessary volume. Clinical trials on preload optimization show a lack of consistency on hemodynamic goals and large heterogeneity in treatment effects [42]. Our results may explain part of these findings.

The wide confidence bands for GEDV and GEDVI in our data raise concern of targeting volume resuscitation with absolute values. Relative changes after volume expansion may better indicate volume status [27] and, in our opinion, require further study. If GEDVI changes substantially after a volume challenge, the patient is likely to be volume responsive. In contrast, if the EVLWI shows a pronounced increase, while GEDVI rises only marginally, this may be an indicator of overhydration.

Limitations of the study

The patients in our study appeared to have normal cardiopulmonary function and were evaluated shortly before discharge from the ICU. The overnight fasting required preoperatively is described to have no impact on intravascular blood volume [43]. We cannot exclude a postoperative stress response that may influence cardiac performance or circulating blood volumes. However, a stress response may be present in volunteers or patients examined before induction of anesthesia. Conversely, any premedication may blunt a normal stress level.

Obviously, the patients included in our study were not healthy volunteers. They required craniotomy for removal of a brain tumor. However, we are unaware of any data indicating that patients requiring elective craniotomy present with an abnormal hemodynamic profile. As some of the patients had metastatic brain tumors, we cannot exclude that some of them may have been compromised by their underlying disease. No patient had undergone lobar lung resection, pneumonectomy or chemotherapy at the time of study inclusion.

Our study was not powered to detect a potential impact of chronic medication on preload volumes. However, according to our univariate analysis, the magnitude seems to be far lower than the relationship of preload volumes with age and gender found. In view of the large interindividual variance between subjects, any hypothetical confirmatory trial would have to include at least a ten-fold greater number of patients.

Finally, we did not investigate the influence of interventions such as a volume challenge or passive leg raising on the static preload parameter GEDV. Pulse pressure variation or stroke volume variation are dynamic indicators of cardiac preload and provide valuable information on the volume responsiveness of a patient [44]. Nevertheless, we do think that our findings may help to increase the physiologic understanding of volumetric preload parameters acquired by transpulmonary thermodilution.

Conclusions

We provide evidence that the volumetric parameters GEDV and ITBV as well as their indexed versions GEDVI and ITBVI are dependent on age and gender in spontaneously breathing patients without hemodynamic support and show wide confidence intervals due to a large variance between individuals. Targeting resuscitation using fixed ranges of preload volumes acquired by transpulmonary thermodilution without concern for the individual patient's age and gender seems not to be appropriate. Future studies investigating whether these findings translate into optimized volume therapy in acutely ill patients are clearly warranted.

Key messages

  • The preload volumes GEDV and ITBV are dependent on age and gender.

  • The age and sex dependence of GEDV and ITBV is persistent after indexing to BSA.

  • GEDVI and ITBVI show wide confidence intervals in spontaneously breathing patients due to a large variance between individuals.

  • Targeting resuscitation using fixed ranges of GEDVI or ITBVI without concern for age and gender is not appropriate.

Abbreviations

BSA:

body surface area

CI:

cardiac index

CO:

cardiac output

CT:

computed tomography

DSt:

downslope time

EVLW:

extravascular lung water

GEDV:

global end-diastolic volume

GEDVI:

global end-diastolic volume index

ITBV:

intrathoracic blood volume

ITBVI:

intrathoracic blood volume index

ITTV:

intrathoracic thermal volume

MTt:

mean transit time

PBW:

predicted body weight

PTV:

pulmonary thermal volume.

Declarations

Acknowledgements

Besides the patients who participated, we are indebted to the physicians and nursing staff of the departments of Anesthesiology and Neurosurgery at the Klinikum Bogenhausen who performed part of the thermodilution measurements and carried the additional workload of the clinical study. Additionally, we like to thank Prof. Thomas Kneib, Department of Mathematics, Carl von Ossietzky Universität, Oldenburg, Germany, Prof. Friedrich Leisch, Department of Statistics, Ludwig-Maximilian-Universität, Munich, Germany and Tatyana Krivobokova, Courant Research Centre, Georg-August-Universität, Göttingen, Germany for statistical advice.

Authors’ Affiliations

(1)
Department of Neurosurgery, Klinikum Bogenhausen, Akademisches Lehrkrankenhaus der Technischen Universität München
(2)
Department of Anesthesiology, Klinikum Bogenhausen, Akademisches Lehrkrankenhaus der Technischen Universität München
(3)
Department of Neurosurgery, Charité Campus Virchow, Freie Universität Berlin

References

  1. Michard F, Alaya S, Zarka V, Bahloul M, Richard C, Teboul J: Global end-diastolic volume as an indicator of cardiac preload in patients with septic shock. Chest 2003, 124: 1900-1908. 10.1378/chest.124.5.1900View ArticlePubMedGoogle Scholar
  2. Sakka SG, Rühl CC, Pfeiffer UJ, Beale R, McLuckie A, Reinhart K, Meier-Hellmann A: Assessment of cardiac preload and extravascular lung water by single transpulmonary thermodilution. Intensive Care Med 2000, 26: 180-187. 10.1007/s001340050043View ArticlePubMedGoogle Scholar
  3. Lichtwarck-Aschoff M, Zeravik J, Pfeiffer UJ: Intrathoracic blood volume accurately reflects circulatory volume status in critically ill patients with mechanical ventilation. Intensive Care Med 1992, 18: 142-147. 10.1007/BF01709237View ArticlePubMedGoogle Scholar
  4. Neumann P: Extravascular lung water and intrathoracic blood volume: double versus single indicator dilution technique. Intensive Care Med 1999, 25: 216-219. 10.1007/s001340050819View ArticlePubMedGoogle Scholar
  5. Sakka SG, Bredle DL, Reinhart K, Meier-Hellmann A: Comparison between intrathoracic blood volume and cardiac filling pressures in the early phase of hemodynamic instability of patients with sepsis or septic shock. J Crit Care 1999, 14: 78-83. 10.1016/S0883-9441(99)90018-7View ArticlePubMedGoogle Scholar
  6. Marik PE, Baram M, Vahid B: Does central venous pressure predict fluid responsiveness? A systematic review of the literature and the tale of seven mares. Chest 2008, 134: 172-178. 10.1378/chest.07-2331View ArticlePubMedGoogle Scholar
  7. Reuter DA, Felbinger TW, Moerstedt K, Weis F, Schmidt C, Kilger E, Goetz AE: Intrathoracic blood volume index measured by thermodilution for preload monitoring after cardiac surgery. J Cardiothorac Vasc Anesth 2002, 16: 191-195. 10.1053/jcan.2002.31064View ArticlePubMedGoogle Scholar
  8. Michard F, Schachtrupp A, Toens C: Factors influencing the estimation of extravascular lung water by transpulmonary thermodilution in critically ill patients. Crit Care Med 2005, 33: 1243-1247. 10.1097/01.CCM.0000164566.23147.35View ArticlePubMedGoogle Scholar
  9. Hofer CK, Furrer L, Matter-Ensner S, Maloigne M, Klaghofer R, Genoni M, Zollinger A: Volumetric preload measurement by thermodilution: a comparison with transoesophageal echocardiography. Br J Anaesth 2005, 94: 748-755. 10.1093/bja/aei123View ArticlePubMedGoogle Scholar
  10. Reuter DA, Goepfert MSG, Goresch T, Schmoeckel M, Kilger E, Goetz AE: Assessing fluid responsiveness during open chest conditions. Br J Anaesth 2005, 94: 318-323. 10.1093/bja/aei043View ArticlePubMedGoogle Scholar
  11. Hofer CK, Müller SM, Furrer L, Klaghofer R, Genoni M, Zollinger A: Stroke volume and pulse pressure variation for prediction of fluid responsiveness in patients undergoing off-pump coronary artery bypass grafting. Chest 2005, 128: 848-854. 10.1378/chest.128.2.848View ArticlePubMedGoogle Scholar
  12. Hofer CK, Ganter MT, Matter-Ensner S, Furrer L, Klaghofer R, Genoni M, Zollinger A: Volumetric assessment of left heart preload by thermodilution: comparing the PiCCO-VoLEF system with transoesophageal echocardiography. Anaesthesia 2006, 61: 316-321. 10.1111/j.1365-2044.2006.04537.xView ArticlePubMedGoogle Scholar
  13. Marx G, Cope T, McCrossan L, Swaraj S, Cowan C, Mostafa SM, Wenstone R, Leuwer M: Assessing fluid responsiveness by stroke volume variation in mechanically ventilated patients with severe sepsis. Eur J Anaesthesiol 2004, 21: 132-138.View ArticlePubMedGoogle Scholar
  14. Hofer CK, Ganter MT, Rist A, Klaghofer R, Matter-Ensner S, Zollinger A: The accuracy of preload assessment by different transesophageal echocardiographic techniques in patients undergoing cardiac surgery. J Cardiothorac Vasc Anesth 2008, 22: 236-242. 10.1053/j.jvca.2007.06.007View ArticlePubMedGoogle Scholar
  15. Wolf S, Landscheidt J, Tomasino A, Schul D, Stegmaier H, Schürer L, Lumenta C: ITBV and GEDV but not EVLW acquired by transpulmonary thermodilution is age dependent in a series of neurosurgical patients [abstract]. Int Care Med 2007,33(Suppl 2):S73.Google Scholar
  16. Stewart GN: The pulmonary circulation time, the quantity of blood in the lungs and the output of the heart. Am J Physiol 1921, 58: 20-44.Google Scholar
  17. Newman EV, Merrell M, Genecin A, Monge C, Milnor WR, McKeever WP: The dye dilution method for describing the central circulation. Circulation 1951, 4: 735-746.View ArticlePubMedGoogle Scholar
  18. Michard F: Bedside assessment of extravascular lung water by dilution methods: temptations and pitfalls. Crit Care Med 2007, 35: 1186-1192. 10.1097/01.CCM.0000259539.49339.66View ArticlePubMedGoogle Scholar
  19. Devine BJ: Gentamicin therapy. Drug Intell Clin Pharm 1974, 8: 650-655.Google Scholar
  20. Du Bois D, Du Bois EF: A formula to estimate the approximate surface area if height and weight be known. Arch Intern Med 1916, 5: 303-311.Google Scholar
  21. Sakka SG, Klein M, Reinhart K, Meier-Hellmann A: Prognostic value of extravascular lung water in critically ill patients. Chest 2002, 122: 2080-2086. 10.1378/chest.122.6.2080View ArticlePubMedGoogle Scholar
  22. Phillips CR, Chesnutt MS, Smith SM: Extravascular lung water in sepsis-associated acute respiratory distress syndrome: indexing with predicted body weight improves correlation with severity of illness and survival. Crit Care Med 2008, 36: 69-73. 10.1097/01.CCM.0000295314.01232.BEView ArticlePubMedGoogle Scholar
  23. Efron B: Bootstrap Methods: Another Look at the Jackknife. Ann Stat 1979, 7: 1-26. 10.1214/aos/1176344552View ArticleGoogle Scholar
  24. R Development Core Team: R: A language and environment for statistical computing.R Foundation for Statistical Computing, Vienna, Austria; 2009. [http://www.r-project.org]Google Scholar
  25. Wood SN: Generalized Additive Models: An Introduction with R. Boca Raton: CRC press; 2006.Google Scholar
  26. Akaike H: A new look at the statistical model identification. IEEE Transactions on Automatic Control 1974, 19: 716-723. 10.1109/TAC.1974.1100705View ArticleGoogle Scholar
  27. Brivet FG, Jacobs F, Colin P: Calculated global end-diastolic volume does not correspond to the largest heart blood volume: a bias for cardiac function index? Intensive Care Med 2004, 30: 2133-2134. author reply 2135 10.1007/s00134-004-2432-0View ArticlePubMedGoogle Scholar
  28. Mao SS, Ahmadi N, Shah B, Beckmann D, Chen A, Ngo L, Flores FR, Gao YL, Budoff MJ: Normal thoracic aorta diameter on cardiac computed tomography in healthy asymptomatic adults: impact of age and gender. Acad Radiol 2008, 15: 827-834. 10.1016/j.acra.2008.02.001PubMed CentralView ArticlePubMedGoogle Scholar
  29. Itani Y, Watanabe S, Masuda Y, Hanamura K, Asakura K, Sone S, Sunami Y, Miyamoto T: Measurement of aortic diameters and detection of asymptomatic aortic aneurysms in a mass screening program using a mobile helical computed tomography unit. Heart Vessels 2002, 16: 42-45. 10.1007/s380-002-8315-1View ArticlePubMedGoogle Scholar
  30. Aronberg DJ, Glazer HS, Madsen K, Sagel SS: Normal thoracic aortic diameters by computed tomography. J Comput Assist Tomogr 1984, 8: 247-250.PubMedGoogle Scholar
  31. Hager A, Kaemmerer H, Rapp-Bernhardt U, Blücher S, Rapp K, Bernhardt TM, Galanski M, Hess J: Diameters of the thoracic aorta throughout life as measured with helical computed tomography. J Thorac Cardiovasc Surg 2002, 123: 1060-1066. 10.1067/mtc.2002.122310View ArticlePubMedGoogle Scholar
  32. Pearce WH, Slaughter MS, LeMaire S, Salyapongse AN, Feinglass J, McCarthy WJ, Yao JS: Aortic diameter as a function of age, gender, and body surface area. Surgery 1993, 114: 691-697.PubMedGoogle Scholar
  33. Mohiaddin RH, Schoser K, Amanuma M, Burman ED, Longmore DB: MR imaging of age-related dimensional changes of thoracic aorta. J Comput Assist Tomogr 1990, 14: 748-752. 10.1097/00004728-199009000-00012View ArticlePubMedGoogle Scholar
  34. Sakka SG, Meier-Hellmann A: Extremely high values of intrathoracic blood volume in critically ill patients. Intensive Care Med 2001, 27: 1677-1678. 10.1007/s001340101071View ArticlePubMedGoogle Scholar
  35. Alfakih K, Plein S, Thiele H, Jones T, Ridgway JP, Sivananthan MU: Normal human left and right ventricular dimensions for MRI as assessed by turbo gradient echo and steady-state free precession imaging sequences. J Magn Reson Imaging 2003, 17: 323-329. 10.1002/jmri.10262View ArticlePubMedGoogle Scholar
  36. Lorenz CH, Walker ES, Morgan VL, Klein SS, Graham TP: Normal human right and left ventricular mass, systolic function, and gender differences by cine magnetic resonance imaging. J Cardiovasc Magn Reson 1999, 1: 7-21. 10.3109/10976649909080829View ArticlePubMedGoogle Scholar
  37. Sandstede J, Lipke C, Beer M, Hofmann S, Pabst T, Kenn W, Neubauer S, Hahn D: Age- and gender-specific differences in left and right ventricular cardiac function and mass determined by cine magnetic resonance imaging. Eur Radiol 2000, 10: 438-442. 10.1007/s003300050072View ArticlePubMedGoogle Scholar
  38. Marcus JT, DeWaal LK, Götte MJ, Geest RJ, Heethaar RM, Van Rossum AC: MRI-derived left ventricular function parameters and mass in healthy young adults: relation with gender and body size. Int J Card Imaging 1999, 15: 411-419. 10.1023/A:1006268405585View ArticlePubMedGoogle Scholar
  39. Hudsmith LE, Petersen SE, Francis JM, Robson MD, Neubauer S: Normal human left and right ventricular and left atrial dimensions using steady state free precession magnetic resonance imaging. J Cardiovasc Magn Reson 2005, 7: 775-782. 10.1080/10976640500295516View ArticlePubMedGoogle Scholar
  40. Salton CJ, Chuang ML, O'Donnell CJ, Kupka MJ, Larson MG, Kissinger KV, Edelman RR, Levy D, Manning WJ: Gender differences and normal left ventricular anatomy in an adult population free of hypertension. A cardiovascular magnetic resonance study of the Framingham Heart Study Offspring cohort. J Am Coll Cardiol 2002, 39: 1055-1060. 10.1016/S0735-1097(02)01712-6View ArticlePubMedGoogle Scholar
  41. Nikitin NP, Loh PH, de Silva R, Witte KKA, Lukaschuk EI, Parker A, Farnsworth TA, Alamgir FM, Clark AL, Cleland JGF: Left ventricular morphology, global and longitudinal function in normal older individuals: a cardiac magnetic resonance study. Int J Cardiol 2006, 108: 76-83. 10.1016/j.ijcard.2005.04.009View ArticlePubMedGoogle Scholar
  42. Sevransky JE, Nour S, Susla GM, Needham DM, Hollenberg S, Pronovost P: Hemodynamic goals in randomized clinical trials in patients with sepsis: a systematic review of the literature. Crit Care 2007, 11: R67. 10.1186/cc5948PubMed CentralView ArticlePubMedGoogle Scholar
  43. Jacob M, Chappell D, Conzen P, Finsterer U, Rehm M: Blood volume is normal after pre-operative overnight fasting. Acta Anaesthesiol Scand 2008, 52: 522-529. 10.1111/j.1399-6576.2008.01587.xView ArticlePubMedGoogle Scholar
  44. Marik PE, Cavallazzi R, Vasu T, Hirani A: Dynamic changes in arterial waveform derived variables and fluid responsiveness in mechanically ventilated patients: a systematic review of the literature. Crit Care Med 2009, 37: 2642-2647. 10.1097/CCM.0b013e3181a590daView ArticlePubMedGoogle Scholar

Copyright

© Wolf et al.; licensee BioMed Central Ltd. 2009

This article is published under license to BioMed Central Ltd. This is an open access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/2.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
