Survival of hematological patients after discharge from the intensive care unit: a prospective observational study
© Bernal et al.; licensee BioMed Central Ltd. 2013
Received: 19 August 2013
Accepted: 27 November 2013
Published: 30 December 2013
Although the survival rates of hematological patients admitted to the ICU are improving, little is known about the long-term outcome. Our objective was to identify factors related to long-term outcome in hematological patients after ICU discharge.

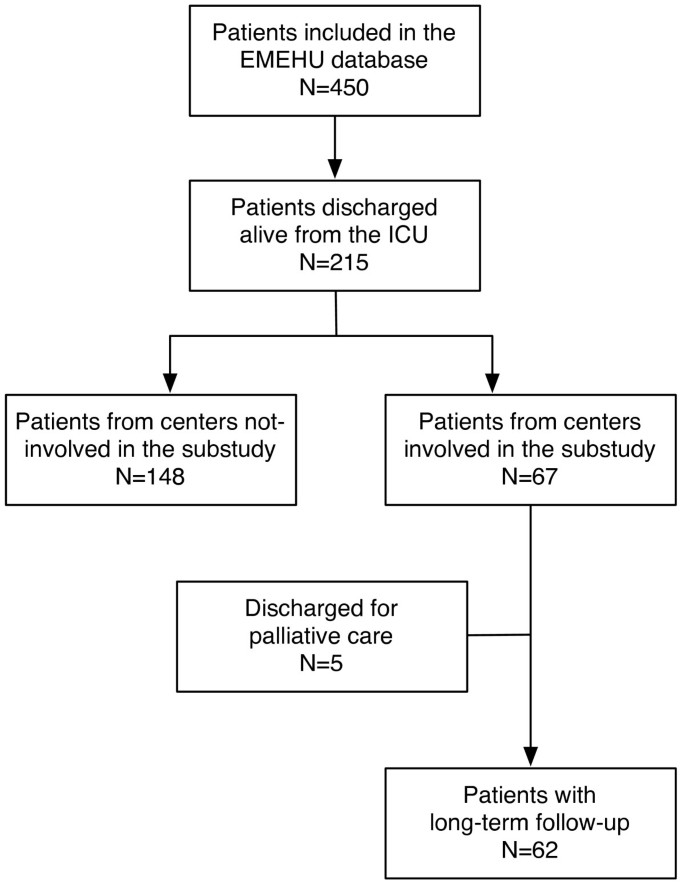

A prospective, observational study was carried out in seven centers in Spain. From an initial sample of 161 hematological patients admitted to one of the participating ICUs during the study period, 62 were discharged alive and followed for a median time of 23 (1 to 54) months. Univariate and multivariate analysis were performed to identify the factors related to long term-survival. Finally, variables that influence the continuation of the scheduled therapy for the hematological disease were studied.
Mortality after ICU discharge was 61%, with a median survival of 18 (1 to 54) months. In the multivariate analysis, an Eastern Cooperative Oncology Group score (ECOG) >2 at ICU discharge (Hazard ratio 11.15 (4.626 to 26.872)), relapse of the hematological disease (Hazard ratio 9.738 (3.804 to 24.93)) and discontinuation of the planned treatment for the hematological disease (Hazard ratio 4.349 (1.286 to 14.705)) were independently related to mortality. Absence of stem cell transplantation, high ECOG and high Acute Physiology and Chronic Health Evaluation II (APACHE II) scores decreased the probability of receiving the planned therapy for the hematological malignancy.
Both ICU care and post-ICU management determine the long-term outcome of hematological patients who are discharged alive from the ICU.
Hematological patients admitted into an ICU experience high mortality rates. In response to this clinical problem, research has helped to identify prognostic factors related to intra-ICU and intra-hospital mortality. The result has been an improvement in the outcome over the last decade  as a consequence of a number of factors, including implementation of non-invasive mechanical ventilation , earlier intervention in septic shock  and better management of specific complications (such as tumor lysis syndrome) . As most of the research has focused on intra-ICU or intra-hospital mortality, information regarding survival is limited to this period. More recently, some groups have extended the follow-up period to 6 to 12 months after the patients have been discharged from the ICU [5–10], but data regarding long-term survival (more than one year after ICU discharge) are scarce. This raises a concern about the validity of the classical predictive factors for intra-ICU or in-hospital mortality in predicting long-term survival. For instance, the need for mechanical ventilation is a well-known risk factor for death in the ICU, but its impact in long-term survival is largely unknown.
Moreover, there is increasing concern about the general condition of the patients at ICU discharge, including nutritional, neuromuscular and cognitive status. These factors, which are amenable to intervention and may impact the long-term survival and quality of life in unselected ICU patients, would be also relevant in a fragile population such as those with hematological malignancies. In addition, factors that determine the feasibility of subsequent chemotherapy cycles after ICU discharge and their impact in the long-term control of neoplastic disease have not been studied.
Here we report on long-term outcome in a population of hematological patients who survived ICU admission, and analyze the clinical factors influencing survival. We hypothesized that both intra-ICU and post-ICU variables could determine the suitability of a patient for receiving additional therapies, therefore determining the long-term outcome of this population. To test this hypothesis, we studied classical prognostic factors (such as mechanical ventilation, organ failure and neutropenia), as well as those related to the underlying disease and its evolution. In particular, we have analyzed the applicability of chemotherapy after ICU discharge and its relevance to hematological relapse and survival.
The study was approved by local ethics committees (see Acknowledgements) and written informed consent was obtained for each participant.
The EMEHU database included data on demographics, hematological disease, diagnosis at ICU admission, severity scores, treatments, infections and complications during the ICU stay. Neutropenia was defined as an absolute neutrophil count below 0.5 × 109 L-1. During the follow-up period after ICU discharge, data on the Eastern Cooperative Oncology Group (ECOG) score , relapse and treatment for the hematological disease were collected. According to the compliance with the pre-planned treatment for each hematological disease, four groups of patients were predefined: 1) those who did not require additional treatment (that is, patients in complete remission or transplanted patients without planned maintenance treatment); 2) patients who required and received full-dose treatment; 3) patients who required treatment and received it with modifications (reduced doses or delays); and 4) Patients who required treatment but did not receive it: for these patients the reasons for the changes in the therapeutic plan were recorded.
Normality of all variables was studied using the Kolgomorov-Smirnov test. Data are expressed as mean ± SD or median (range) for variables with or without a normal distribution respectively. Univariate comparisons between survivors and non-survivors after ICU discharge were performed using the Student t-test, Mann–Whitney U-test or chi-square test. Those variables with a P-value lower than 0.05 for the difference were included in the multivariate survival analysis. In order to deal with time-dependent variables (that is, relapse), we used an extended Cox regression model. Hazard ratios (HR) with 95% confidence intervals were computed. A P-value lower than 0.05 was considered significant in this multivariate analysis. To evaluate the accuracy of the model over time, area under the incident/dynamic receiver operating characteristic (ROC) curve (AUC) was computed .
The four groups of patients resulting from the previously described classification based on the compliance with the pre-planned treatment were compared using one-way analysis of variance (ANOVA), Kruskal-Wallis ANOVA or chi-square test, as appropriate. In order to look for optimal classification criteria, significant variables were included in a decision-tree analysis. In particular, the chi-square automated interaction decision (CHAID) algorithm was used, and variables with a P-value lower than 0.05 were considered significant.
General characteristics of the sample
Characteristics of the study population
Number of patients (%) or mean ± SD
Chronic renal failure
Acute myeloid leukemia/ myelodysplastic syndrome
Acute lymphoid leukemia
Chronic myeloproliferative neoplasms
Chronic lymphocytic leukemia
Timing of hematological diagnosis
Previous to hospital admission
During the current hospital admission
Stage of disease at ICU admissiona
Stem cell transplant
APACHE II score (mean ± SD)
22 ± 7
Diagnosis at ICU admission
Acute respiratory failure
Risk factors for mortality after ICU discharge
Results of the univariate analysis studying the differences in variables collected before ICU discharge between long-term survivors and non-survivors
N = 26
N = 36
Age, years, mean ± SD
51 ± 14
55 ± 18
Phase of underlying diseasea
Stem cell transplant
Thrombopenia previous to ICU
Diagnosis at ICU admission:
APACHE- II score, mean ± SD
22 ± 6.7
Length of MV, days, median (range)
1 (0 to 42)
1 (0 to 62)
Length of NIMV, days, median (range)
0 (0 to 12)
0 (0 to 12)
Length of pre-ICU, days, median (range)
5 (0 to 66)
3 (0 to 26)
Length of ICU stay, days, median (range)
5 (1 to 58)
7 (1 to 68)
ECOG score at ICU discharge
0 to 2
3 to 4
Among the data collected during the ICU stay, there were no differences between survivors and non-survivors in causes of admission, APACHE-II score, days of mechanical ventilation (either invasive or non-invasive) or complications during this period (data not shown). However, a high ECOG score at ICU discharge was significantly related to mortality (HR 7.28, 95% CI 3.572 to 14.850, for ECOG scores 3 to 4).
Finally, variables collected after ICU discharge were analyzed. There were significant differences in the relapse of the hematological disease (2 survivors versus 14 non-survivors respectively, chi-square test, P = 0.007). Compliance with treatment for the hematological disease also yielded statistically significant differences between survivors and non-survivors: Only 5 out of 26 survivors did not follow the previously planned therapeutic schedule, in contrast to 18 out of 36 among non-survivors (chi-square test, P = 0.02).
Multivariate analysis for survival
95% Confidence interval
ECOG score > 2 at ICU discharge
Relapse after ICU discharge
Compliance with therapy
Finished treatment pre-ICU
Dose reduction or delay
Therapeutic strategies after ICU discharge
Considering the impact of post-ICU treatment on survival we analyzed factors that determined the probability of patients to receive pre-planned treatment for hematological disease. Among the 62 studied patients, 15 did not need further treatment, 24 patients completed the pre-planned treatment after ICU discharge, 12 patients received treatment with dose reductions or delays (4 due to infection and the remainder due to a medical decision) and 11 patients did not receive treatment for their hematological disease (all due to a medical decision).
In this work we have analyzed the evolution of a cohort of hematological patients after an ICU stay in order to identify the factors related to long-term survival after ICU discharge. Although the sample size of our study could result in low statistical power, the robust statistical analysis used, including univariate and multivariate analysis, and restrictive cut-off points, have helped to identify some relevant variables related to long-term outcome. In this sense, an ECOG score >2 at ICU discharge, the relapse of the hematological neoplasm and the absence of compliance with the scheduled therapy for the underlying disease after ICU discharge predicted worse survival in this cohort. However, it must be recognized that other variables may have not been detected due to the sample size. In this sense, larger studies will be required to validate our findings.
The need for data on long-term survival of hematological patients after ICU discharge has been recently highlighted due to their increased acceptance in ICUs , improvements in survival  and awareness of resource consumption [16, 17]. Our work presents data after a median follow-up time of 23 months, with 59% mortality and a median survival of 18 months.
As most of the previously published studies dealing with critically ill hematological patients are limited to a follow-up period of 6 to 12 months [5–9, 18], our results are difficult to compare. In spite of this limitation, high mortality rates after ICU discharge have been uniformly described. This high number of deaths must be added to the high ICU mortality of this population (about 40 to 50% in the published literature [5–8, 10] and 61% in our series). Nonetheless, these findings were expected, as both an ICU stay  and a diagnosis of a hematological neoplasm are risk factors for death in the general population. Moreover, the most prevalent hematological diagnosis in our cohort was acute leukemia during the induction phase, a condition with high risk of infections and death . Due to the diagnostic heterogeneity of our sample we cannot properly assess how the ICU stay modifies the course of these diseases. With this limitation in mind, we can compare our survival rates with an unselected population of patients with acute myeloid leukemia . Our data show one-year mortality higher than the 10 to 15% reported for the unselected population. However, long-term survival in our study was about 40%, which is not very different from the 50% reported for the whole cohort of patients with leukemia. The impact of an ICU stay in the course of specific diseases should be addressed in future studies.
The three predictive factors for survival in our study were ECOG score at ICU discharge, relapse of hematological disease and adherence to the planned therapy after discharge. The ECOG score is a simple and easily applicable test that reflects the patient's response to the tumor and quantifies the performance status of the subject. It has demonstrated a prognostic value in virtually all hematological neoplasms, independently of other clinical and biological variables [22–25]. In the context of this study, it is reasonable to think that the consequences of intensive therapies required during the ICU stay may have impact on the final ECOG score at ICU discharge. Recently in a large cohort, poor performance status has been demonstrated to be related to an increased risk of intra-hospital death . The second prognostic factor for survival is relapse of underlying disease. This is not a surprising result, considering that relapse confers a kind of resistance to chemotherapy that is exceptionally difficult to overcome except with aggressive therapies, like stem-cell transplantation . Finally, discontinuation of the scheduled treatment for the hematological disease is the third factor related to a poor outcome. This risk is partially avoided when treatment is given, even with dose reductions or delays.
Due to the relevance of this last factor, which has not been explored previously, we focused on the variables that could predict the adherence to the subsequent hematological treatment. The decision-tree analysis allows us to identify the most relevant parameters that determine allocation to one group. The first variable that determined the probability of treatment continuation was stem-cell transplantation. As expected, patients after stem-cell transplantation or those in complete remission do not need further treatment for their disease, and show a good prognosis after ICU discharge. Conversely, those in the remission-induction phase or those with relapse usually need additional treatments. It must be noted that up to 50% of the patients in the remission-induction phase do not receive full treatment after ICU discharge. In these patients, the ECOG score appears again as a critical factor that discriminates among groups with different probabilities of receiving a complete chemotherapy treatment. According to our previous discussion, patients with an ECOG score >2 at ICU discharge have a substantially decreased functional reserve that hampers their capacity to tolerate an aggressive treatment, such as chemotherapy. This finding highlights the critical importance of strategies aimed at minimizing the negative impact of the ICU stay and preserving the patient's status . Finally, the APACHE-II allows further discrimination among the patients with high ECOG scores. A high APACHE-II score decreased the probability of continuation of therapy once the patient has been discharged from the ICU. It has been demonstrated that early ICU admission improves the outcome in this population [10, 28]. The admission before the development of multiple organ dysfunction could be related to lower APACHE-II scores and a better compliance with the treatment after ICU discharge, thus improving the long-term outcome. However, our data do not allow identification of other factors that may have special relevance, such as specific organ failure responsible for the medical reasons behind the changes in the therapeutic plan.
Collectively our study suggests that management of critical hematological patients goes beyond the ICU and represents a challenge for both hematologists and intensivists: once a hematological patient is admitted to the ICU, physicians should consider the need to follow the therapeutic plan and not only the immediate risk of death. Previous studies have demonstrated that when needed, continuation of the chemotherapeutic regimen after ICU admission could improve the outcome of these patients . Our results extend this observation, and suggest that an active therapeutic strategy must be taken after ICU discharge. If this goal cannot be accomplished, the ICU stay could be an exercise of futility due to the high risk of death after discharge. These findings should be taken into account when considering readmission of one of these patients, due to the poor outcome of those discharged alive but unable to continue their treatment.
Our results show that outcome of hematological patients who are discharged alive from the ICU depends on their functional status and the adherence to the planned therapy for their disease. Moreover, these two factors are closely related. These findings illustrate the relevance of strategies to reduce the consequences of an ICU stay and add new parameters to consider in the management of this fragile population.
Performance status, relapse of the hematological disease and continuation of the scheduled treatment for the hematological disease are the key factors that determine long-term survival of hematological patients after an ICU stay.
The ability to continue the planned treatment for the hematological disease depends on performance status and APACHE-II score. Patients who have completed the stem-cell transplant procedure or do not need more treatment have a good outcome.
Analysis of variance
Acute physiology and chronic health evaluation
Area under the curve
Chronic lymphoid leukemia
Chronic myeloproliferative neoplasm
Chronic obstructive pulmonary disease
- ECOG score:
Eastern Cooperative Oncology Group score
Non-invasive mechanical ventilation
Receiver operating characteristic.
GMA is the recipient of a grant from Instituto de Salud Carlos III (Intensificación de la actividad investigadora, INT 12/007). Instituto Universitario de Oncología del Principado de Asturias (IUOPA) is supported by Obra Social Cajastur. The study was approved by the Regional Ethics Committee of Principado de Asturias (Oviedo, Spain), Clinical Research Ethics Committee of the Hospital La Fe (Valencia, Spain), Clinical Research Ethics Committee of Islas Baleares (Mallorca, Spain), Regional Ethics Committee of Aragón (Zaragoza, Spain), Clinical Research Ethics Committee of Navarra (Pamplona, Spain) and Clinical Research Ethics Committee of Hospital Germans Trias i Pujol (Badalona, Spain).
- Lecuyer L, Chevret S, Guidet B, Aegerter P, Martel P, Schlemmer B, Azoulay E: Case volume and mortality in haematological patients with acute respiratory failure. Eur Respir J 2008, 32: 748-754. 10.1183/09031936.00142907View ArticlePubMedGoogle Scholar
- Azoulay E, Alberti C, Bornstain C, Leleu G, Moreau D, Recher C, Chevret S, Le Gall JR, Brochard L, Schlemmer B: Improved survival in cancer patients requiring mechanical ventilatory support: impact of noninvasive mechanical ventilatory support. Crit Care Med 2001, 29: 519-525. 10.1097/00003246-200103000-00009View ArticlePubMedGoogle Scholar
- Legrand M, Max A, Peigne V, Mariotte E, Canet E, Debrumetz A, Lemiale V, Seguin A, Darmon M, Schlemmer B, Azoulay E: Survival in neutropenic patients with severe sepsis or septic shock. Crit Care Med 2012, 40: 43-49. 10.1097/CCM.0b013e31822b50c2View ArticlePubMedGoogle Scholar
- Darmon M, Guichard I, Vincent F, Schlemmer B, Azoulay E: Prognostic significance of acute renal injury in acute tumor lysis syndrome. Leuk Lymphoma 2010, 51: 221-227. 10.3109/10428190903456959View ArticlePubMedGoogle Scholar
- Kroschinsky F, Weise M, Illmer T, Haenel M, Bornhaeuser M, Hoeffken G, Ehninger G, Schuler U: Outcome and prognostic features of intensive care unit treatment in patients with hematological malignancies. Intensive Care Med 2002, 28: 1294-1300. 10.1007/s00134-002-1420-5View ArticlePubMedGoogle Scholar
- Soares M, Salluh JI, Torres VB, Leal JV, Spector N: Short- and long-term outcomes of critically ill patients with cancer and prolonged ICU length of stay. Chest 2008, 134: 520-526. 10.1378/chest.08-0359View ArticlePubMedGoogle Scholar
- Rabbat A, Chaoui D, Montani D, Legrand O, Lefebvre A, Rio B, Roche N, Lorut C, Marie JP, Huchon G: Prognosis of patients with acute myeloid leukaemia admitted to intensive care. Br J Haematol 2005, 129: 350-357. 10.1111/j.1365-2141.2005.05459.xView ArticlePubMedGoogle Scholar
- Pene F, Aubron C, Azoulay E, Blot F, Thiery G, Raynard B, Schlemmer B, Nitenberg G, Buzyn A, Arnaud P, Socie G, Mira JP: Outcome of critically ill allogeneic hematopoietic stem-cell transplantation recipients: a reappraisal of indications for organ failure supports. J Clin Oncol 2006, 24: 643-649. 10.1200/JCO.2005.03.9073View ArticlePubMedGoogle Scholar
- Oeyen SG, Benoit DD, Annemans L, Depuydt PO, Van Belle SJ, Troisi RI, Noens LA, Pattyn P, Decruyenaere JM: Long-term outcomes and quality of life in critically ill patients with hematological or solid malignancies: a single center study. Intensive Care Med 2013, 39: 889-898. 10.1007/s00134-012-2791-xView ArticlePubMedGoogle Scholar
- Azoulay E, Mokart D, Pene F, Lambert J, Kouatchet A, Mayaux J, Vincent F, Nyunga M, Bruneel F, Laisne LM, Rabbat A, Lebert C, Perez P, Chaize M, Renault A, Meert AP, Benoit D, Hamidfar R, Jourdain M, Darmon M, Schlemmer B, Chevret S, Lemiale V: Outcomes of critically ill patients with hematologic malignancies: prospective multicenter data from france and belgium–a groupe de recherche respiratoire en reanimation onco-hematologique study. J Clin Oncol 2013, 31: 2810-2818. 10.1200/JCO.2012.47.2365View ArticlePubMedGoogle Scholar
- Molina R, Bernal T, Borges M, Zaragoza R, Bonastre J, Granada RM, Rodriguez-Borregan JC, Nunez K, Seijas I, Ayestaran I, Albaiceta GM: Ventilatory support in critically ill hematology patients with respiratory failure. Crit Care 2012, 16: R133. 10.1186/cc11438PubMed CentralView ArticlePubMedGoogle Scholar
- Hughes WT, Armstrong D, Bodey GP, Bow EJ, Brown AE, Calandra T, Feld R, Pizzo PA, Rolston KV, Shenep JL, Young LS: 2002 guidelines for the use of antimicrobial agents in neutropenic patients with cancer. Clin Infect Dis 2002, 34: 730-751. 10.1086/339215View ArticlePubMedGoogle Scholar
- Oken MM, Creech RH, Tormey DC, Horton J, Davis TE, McFadden ET, Carbone PP: Toxicity and response criteria of the Eastern Cooperative Oncology Group. Am J Clin Oncol 1982, 5: 649-655. 10.1097/00000421-198212000-00014View ArticlePubMedGoogle Scholar
- Heagerty PJ, Zheng Y: Survival model predictive accuracy and ROC curves. Biometrics 2005, 61: 92-105. 10.1111/j.0006-341X.2005.030814.xView ArticlePubMedGoogle Scholar
- Lecuyer L, Chevret S, Thiery G, Darmon M, Schlemmer B, Azoulay E: The ICU trial: a new admission policy for cancer patients requiring mechanical ventilation. Crit Care Med 2007, 35: 808-814. 10.1097/01.CCM.0000256846.27192.7AView ArticlePubMedGoogle Scholar
- Darmon M, Azoulay E: Critical care management of cancer patients: cause for optimism and need for objectivity. Curr Opin Oncol 2009, 21: 318-326. 10.1097/CCO.0b013e32832b68b6View ArticlePubMedGoogle Scholar
- Merz TM, Schar P, Buhlmann M, Takala J, Rothen HU: Resource use and outcome in critically ill patients with hematological malignancy: a retrospective cohort study. Crit Care 2008, 12: R75. 10.1186/cc6921PubMed CentralView ArticlePubMedGoogle Scholar
- Massion PB, Dive AM, Doyen C, Bulpa P, Jamart J, Bosly A, Installe E: Prognosis of hematologic malignancies does not predict intensive care unit mortality. Crit Care Med 2002, 30: 2260-2270. 10.1097/00003246-200210000-00014View ArticlePubMedGoogle Scholar
- Wunsch H, Guerra C, Barnato AE, Angus DC, Li G, Linde-Zwirble WT: Three-year outcomes for Medicare beneficiaries who survive intensive care. JAMA 2010, 303: 849-856. 10.1001/jama.2010.216View ArticlePubMedGoogle Scholar
- Maertens J, Marchetti O, Herbrecht R, Cornely OA, Fluckiger U, Frere P, Gachot B, Heinz WJ, Lass-Florl C, Ribaud P, Thiebaut A, Cordonnier C: European guidelines for antifungal management in leukemia and hematopoietic stem cell transplant recipients: summary of the ECIL 3–2009 update. Bone Marrow Transplant 2011, 46: 709-718. 10.1038/bmt.2010.175View ArticlePubMedGoogle Scholar
- Burnett AK, Russell NH, Hills RK, Hunter AE, Kjeldsen L, Yin J, Gibson BE, Wheatley K, Milligan D: Optimization of chemotherapy for younger patients with acute myeloid leukemia: results of the Medical Research Council AML15 trial. J Clin Oncol 2013, 31: 3360-3368. 10.1200/JCO.2012.47.4874View ArticlePubMedGoogle Scholar
- A predictive model for aggressive non-Hodgkin’s lymphoma. The International Non-Hodgkin’s Lymphoma Prognostic Factors Project N Engl J Med 1993, 329: 987-994.
- Hoster E, Dreyling M, Klapper W, Gisselbrecht C, van Hoof A, Kluin-Nelemans HC, Pfreundschuh M, Reiser M, Metzner B, Einsele H, Peter N, Jung W, Wormann B, Ludwig WD, Duhrsen U, Eimermacher H, Wandt H, Hasford J, Hiddemann W, Unterhalt M: A new prognostic index (MIPI) for patients with advanced-stage mantle cell lymphoma. Blood 2008, 111: 558-565. 10.1182/blood-2007-06-095331View ArticlePubMedGoogle Scholar
- Gardin C, Chevret S, Pautas C, Turlure P, Raffoux E, Thomas X, Quesnel B, de Revel T, de Botton S, Gachard N, Renneville A, Boissel N, Preudhomme C, Terre C, Fenaux P, Bordessoule D, Celli-Lebras K, Castaigne S, Dombret H: Superior long-term outcome with idarubicin compared with high-dose daunorubicin in patients with acute myeloid leukemia age 50 years and older. J Clin Oncol 2013, 31: 321-327. 10.1200/JCO.2011.40.3642View ArticlePubMedGoogle Scholar
- Gomez-Nunez M, Martino R, Caballero MD, Perez-Simon JA, Canals C, Mateos MV, Sarra J, Leon A, Solano C, Moraleda JM, Urbano-Ispizua A, Besalduch J, Miguel JS, Sierra J: Elderly age and prior autologous transplantation have a deleterious effect on survival following allogeneic peripheral blood stem cell transplantation with reduced-intensity conditioning: results from the Spanish multicenter prospective trial. Bone Marrow Transplant 2004, 33: 477-482. 10.1038/sj.bmt.1704379View ArticlePubMedGoogle Scholar
- Forman SJ, Rowe JM: The myth of the second remission of acute leukemia in the adult. Blood 2013, 121: 1077-1082. 10.1182/blood-2012-08-234492PubMed CentralView ArticlePubMedGoogle Scholar
- Brochard L, Thille AW: What is the proper approach to liberating the weak from mechanical ventilation? Crit Care Med 2009, 37: S410-S415.View ArticlePubMedGoogle Scholar
- Peigne V, Rusinova K, Karlin L, Darmon M, Fermand JP, Schlemmer B, Azoulay E: Continued survival gains in recent years among critically ill myeloma patients. Intensive Care Med 2009, 35: 512-518. 10.1007/s00134-008-1320-4View ArticlePubMedGoogle Scholar
- Ordons AL R d, Chan K, Mirza I, Townsend DR, Bagshaw SM: Clinical characteristics and outcomes of patients with acute myelogenous leukemia admitted to intensive care: a case–control study. BMC cancer 2010, 10: 516.Google Scholar
