Low plasma citrulline levels are associated with acute respiratory distress syndrome in patients with severe sepsis
© Ware et al.; licensee BioMed Central Ltd. 2013
Received: 11 July 2012
Accepted: 9 January 2013
Published: 17 January 2013
The role of nitric oxide synthase (NOS) in the pathophysiology of acute respiratory distress syndrome (ARDS) is not well understood. Inducible NOS is upregulated during physiologic stress; however, if NOS substrate is insufficient then NOS can uncouple and switch from NO generation to production of damaging peroxynitrites. We hypothesized that NOS substrate levels are low in patients with severe sepsis and that low levels of the NOS substrate citrulline would be associated with end organ damage including ARDS in severe sepsis.
Plasma citrulline, arginine and ornithine levels and nitrate/nitrite were measured at baseline in 135 patients with severe sepsis. ARDS was diagnosed by consensus definitions.
Plasma citrulline levels were below normal in all patients (median 9.2 uM, IQR 5.2 - 14.4) and were significantly lower in ARDS compared to the no ARDS group (6.0 (3.3 - 10.4) vs. 10.1 (6.2 - 16.6), P = 0.002). The rate of ARDS was 50% in the lowest citrulline quartile compared to 15% in the highest citrulline quartile (P = 0.002). In multivariable analyses, citrulline levels were associated with ARDS even after adjustment for covariates including severity of illness.
In severe sepsis, levels of the NOS substrate citrulline are low and are associated with ARDS. Low NOS substrate levels have been shown in other disease states to lead to NOS uncoupling and oxidative injury suggesting a potential mechanism for the association between low citrulline and ARDS. Further studies are needed to determine whether citrulline supplementation could prevent the development of ARDS in patients with severe sepsis and to determine its role in NOS coupling and function.
The role of nitric oxide synthases (NOS) and their product nitric oxide (NO) in the pathophysiology of clinical acute respiratory distress syndrome (ARDS) is still not well understood. The signaling molecule NO can regulate a number of processes important in the pathophysiology of ARDS [1, 2] including vascular tone, platelet aggregation, leukocyte adhesion, and mitochondrial oxygen consumption . Production of NO is catalyzed by the three nitric oxide synthases (NOS), and all three isoforms of NOS (NOS-1, NOS-2 and NOS-3) are expressed in the lung.
Circulating levels of L-citrulline are dependent on the proximal urea cycle function of the gut and secondarily the liver  and low levels of citrulline and arginine have been reported in adults [6, 7] and children [8, 9] with sepsis and other critical illness but have not been previously reported in ARDS. We hypothesized that the physiologic stress of sepsis would result in overall decreases in citrulline production to levels that could potentially lead to a fall in NO production in the lung, and potentiate the development of ARDS. We further hypothesized that arginine levels would not be associated with ARDS because of substrate channeling from citrulline to NO. To test this hypothesis, we measured plasma levels of the NO precursors citrulline and arginine, as well as the NO products nitrate and nitrite in 135 patients with severe sepsis enrolled in two randomized clinical trials of an anti-tumor necrosis factor antibody. For comparison, we also measured plasma levels of ornithine, an amino acid that is not a direct substrate for NOS but is an intermediate in the urea cycle.
Materials and methods
Of the 141 patients enrolled in two phase II randomized controlled studies of affinity-purified, anti-tumor necrosis factor-α ovine fab fragments (CytoFab) 135 had baseline plasma samples available for measurements and were included in this analysis. Plasma was drawn from patients as part of the clinical trial protocol at the time of enrollment. After collection, plasma was centrifuged to remove cells and the supernatant was stored in small aliquots at -80C until thawed for amino acid analysis. For inclusion in the clinical trials, documented or presumed infection, systemic inflammatory response syndrome (SIRS), and presence of shock or dysfunction of two other organs were required. Exclusion criteria have been previously published [10, 11]. The institutional review board or independent ethics committee at each enrollment site approved the clinical trials [10, 11], as did the Vanderbilt Institutional Review Board. Each participant or their surrogate provided informed consent to participate in the study. Patients were assessed for the presence of ARDS based on consensus definitions  on the day of clinical trial enrollment, which was also the day of baseline plasma collection. Clinical data including demographics, severity of illness scoring (Acute Physiology and Chronic Health Evaluation, APACHE II) , Brussels organ failure scores , laboratory values and outcomes were obtained from the study databases.
Amino acid, nitrate and nitrite measurements
Plasma amino acid levels were measured by the Hitachi L-8800I high performance amino acid analyzer (Pleasanton, CA, USA). Plasma total nitrate and nitrite (NOx) were measured in duplicate by a Sievers 280I chemiluminescent nitric oxide analyzer (GE, Boulder, CO, USA).
All statistical analysis was done using IBM SPSS Statistics Version 19.0 for Macintosh. Amino acid levels and NOx levels were not normally distributed and were compared between groups using the Mann-Whitney U-test. Correlations were assessed using Spearman rank correlation coefficients. Categorical variables were compared by chi square analysis or Fisher's exact test as appropriate. Multivariable logistic regression models were used to assess the potential confounding effects of clinical variables on the association of plasma citrulline levels with diagnosis of ARDS. Potential confounders were included in the model one at a time to assess the confounding effects of each variable on the relationship of citrulline to ARDS . In logistic regression equations, citrulline was expressed as odds ratio (OR) per 5 uM increment. A P-value less than or equal to 0.05 was considered statistically significant.
Clinical characteristics of 135 patients with severe sepsis
55 ± 16
49 ± 17
57 ± 16
APACHE II score
24 ± 7
24 ± 7
24 ± 7
WBC, × 103
17.6 ± 12.0
17.0 ± 11.7
18.0 ± 12.1
2.4 ± 2.1
2.0 ± 2.3
2.6 ± 2.0
155 ± 88
102 ± 51
184 ± 91
Mechanically ventilated at enrollment, %
Liver failure, %
Renal failure, %
Coagulation failure, %
Mortality at 28 days, %
Amino acid levels and ARDS
The median plasma level of citrulline was very low at 9.2 uM (interquartile range (IQR) 5.2 to 14.4) compared to a normal range of 40 ± 10 uM in healthy adults . The median plasma level of arginine was also low at 22.7 uM (IQR 12.8 to 37.9) compared to a normal range of 27 to 80 uM. The median level of ornithine was 22.7 uM (IQR 14.3 to 39.0), which was within the normal range of 13 to 64 uM.
Comparison of baseline plasma amino acid and NOx levels in patients with and without ARDS
6.0 (3.3 - 10.4)
10.1 (6.2 - 16.6)
19.3 (9.6 - 34.5)
22.9 (14.7 - 40.0)
23.0 (8.5 - 37.1)
22.3 (16.0 - 43.2)
53.8 (24.2 - 92.3)
49.8 (34.5 - 80.9)
Amino acid levels and non-pulmonary organ failure
Amino acid levels were not different between patients with and without renal failure (median 9.4, IQR 5.0 to 12.7 vs. 8.3 uM, IQR 5.2 to 15.1; P = 0.68). There were also no differences in amino acid levels between patients with and without cardiovascular failure (shock) and liver failure as defined by the Brussels organ failure scoring system. However, there was a trend towards lower citrulline levels in patients with coagulation failure (thrombocytopenia) (P = 0.060). Plasma NOx levels were significantly higher in patients with renal failure (median 70.6 Um, IQR 41.4 to 101.1 vs. 40.6 uM, IQR 22.6 to 72.1; P < 0.001), and plasma NOx levels were significantly associated with serum creatinine measurements (r = 0.48; P < 0.001).
Multivariable analyses of association between plasma citrulline levels and ARDS in patients with severe sepsis
Odds ratio per 5 uM decrease
in plasma citrulline (95% CI)
1.50 (1.14, 1.98)
1.43 (1.08, 1.89)
1.52 (1.14, 2.02)
1.50 (1.14, 1.97)
APACHE II score
1.50 (1.14, 1.98)
Presence of shock
1.51 (1.14, 1.99)
Comparison of plasma amino acids and biomarkers of lung injury by 28-day mortality in patients with ARDS (n = 44)
5.7 (3.6 - 9.8)
7.5 (1.9 - 12.6)
19.9 (10.3 - 32.8)
18.8 (7.8 - 37.8)
23.2 (11.5 - 34.9)
20.6 (5.3 - 41.0)
34.8 (23.4 - 72.7)
60 (42.2 - 124.2)
We hypothesized that the physiologic stress of sepsis would result in decreased citrulline production and that lower circulating levels of citrulline would be associated with the occurrence of ARDS. We observed markedly low plasma levels of citrulline in all patients with severe sepsis, and a significant association between lower citrulline levels and the occurrence of ARDS in sepsis. Furthermore, lower levels of plasma citrulline were independently associated with a diagnosis of ARDS, even when controlling for measures of severity of illness. The finding of a strong association between low citrulline levels and presence of ARDS in sepsis patients suggests that NOS substrate deficiency might play a role in the pathogenesis of ARDS.

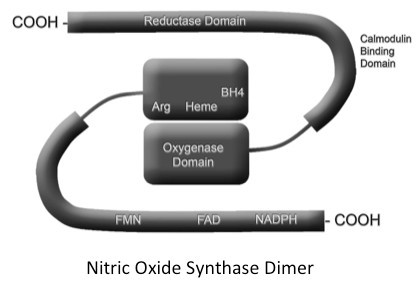

Although we hypothesized that substrate deficiency of citrulline would lead to decreased NO production, it was not possible to measure NO production prospectively in the current study. We did measure plasma levels of NOx, the stable byproducts of NO production. Plasma levels of citrulline and arginine were not associated with plasma levels of NOx, nor were NOx levels associated with the presence of ARDS. Although one might predict that substrate deficiency would lead to a fall in NO production, and a resultant fall in plasma NOx levels, others have reported that circulating NOx levels are strongly modulated by renal excretion of NOx, which is impaired in the setting of renal insufficiency . Concordant with these findings, plasma NOx levels in our study were strongly and inversely associated with serum creatinine measurements, and were significantly higher in patients with renal failure. In a separate cohort, we previously reported that low levels of urine nitric oxide species (NOx) are an independent predictor of mortality in patients with ARDS . Unfortunately, no urine was collected in the present study for analysis of urine NOx species.
To our knowledge, there have not been any prior studies of urea cycle products in clinical ARDS, although there have been several small studies in patients with sepsis. Freund et al.  measured plasma amino acid levels in 25 patients with sepsis and found that low arginine levels were associated with mortality; citrulline was not measured in that study. Druml and colleagues  also reported low levels of plasma arginine in nine patients with sepsis. In 59 critically ill children, plasma arginine and citrulline levels were lower in patients with sepsis or trauma compared to patients with viral disease and were inversely associated with severity of inflammation as indicated by the plasma C-reactive protein concentration . Several studies have examined arginine and citrulline flux in critical illness and sepsis. Plasma arginine levels and arginine production have been found to be low in six adults with septic shock compared to healthy controls . In 13 adults with sepsis, plasma arginine and citrulline levels were found to be low compared to controls, as was the rate of citrulline flux . Luiking et al. reported similar findings of very low citrulline levels and low rates of citrulline production in 10 patients with septic shock and concluded that the fall in citrulline production was driven by diminished de novo arginine and NO production . The current findings of low plasma levels of citrulline and arginine in patients with severe sepsis are concordant with these prior studies and provide additional new information regarding the independent association of low citrulline levels with development of ARDS in severe sepsis. In light of our recent report of ASS-ASL-NOS complex formation and substrate channeling , citrulline substrate availability is likely to be the primary external factor affecting the ability of cells to maintain coupling of NOS. Furthermore, citrulline enters the cell with relatively little competition through neutral amino transport, while arginine uses dibasic amino acid transport, and we detect very little free arginine inside cells , findings that also favor a primary role for citrulline availability in regulation of NOS coupling.
Although it was not possible in this observational study to determine the mechanisms that lead to low citrulline levels in this critically ill cohort of patients with severe sepsis, there are several possible mechanisms. Decreased nutritional intake is common in the early stages of critical illness and could be a potential mechanism leading to low substrate levels for citrulline production. However, levels of ornithine and other amino acids such as glycine and glutamine (data not shown) were in the normal range, suggesting that decreased nutritional intake is not the primary driver of low citrulline and arginine levels in this study. Gut enterocytes are an important source of citrulline production that can be injured in critical illness. Indeed, plasma citrulline levels have been proposed as a functional indicator of small bowel enterocyte mass . Thus, decreased enterocyte production is one potential mechanism of low citrulline levels that may be relevant in both sepsis and ARDS . Although we did not measure arginase activity in this study, increases in arginase activity could also contribute to low circulating citrulline levels since arginase and NOS compete for arginine substrate. Arginase activity can increase in the setting of sepsis and oxidative stress . However, in a shock model in rats, arginase in the lung was downregulated, arguing against arginase upregulation in the lung as a major determinant of local levels in the lung .
The association of low levels of plasma citrulline with development of ARDS in patients with severe sepsis might have implications for the prevention and/or treatment of ARDS. Citrulline repletion is already being tested in other clinical settings that are associated with NOS substrate deficiency. In pulmonary hypertension after congenital heart surgery, low levels of citrulline have been shown to predict reduced NO production and poor clinical outcomes . In an early phase clinical trial, intravenous citrulline supplementation was safe and well tolerated in children undergoing congenital heart surgery with cardiopulmonary bypass, and led to increases in plasma NOx and arginine levels as well as a reduction in post-operative pulmonary hypertension, without any evidence of systemic changes in blood pressure . A larger clinical trial in children undergoing cardiac surgery with cardiopulmonary bypass is ongoing.
This study has several strengths. A major strength is the size of the study with 135 critically ill patients, which to our knowledge is the largest study of NOS substrate levels in critical illness to date. Because of the large size of the study we were able to test the association of NOS substrate levels with other organ failures and clinical outcomes in addition to ARDS. This study also has limitations. First, although the association between low levels of citrulline and ARDS was robust, it provides only indirect evidence that substrate deficiency leading to NOS uncoupling is important in the pathophysiology of ARDS; we were not able to directly measure either NO or superoxide production in this study, and the plasma NOx measures appeared to be modulated by renal failure. In addition, ARDS could be a cause rather than a consequence of low substrate levels. A second limitation is that we did not measure tetrahydrobiopterin (BH4) levels. BH4 is a NOS cofactor that is normally bound to the NOS oxygenase domain . BH4 levels can be reduced in the setting of oxidative stress  and ischemia reperfusion . However, like NOx, circulating BH4 levels are affected by renal failure , and it is not clear that circulating levels are a good indicator of potential BH4 effects on NOS. A final limitation is that the measurements were made at only a single point in time. In future studies it would be helpful to determine changes in citrulline and arginine levels over time in association with development of ARDS.
In summary, plasma citrulline levels are low in patients with severe sepsis and low levels are associated with the presence of ARDS. Further studies are needed to determine whether citrulline supplementation could prevent the development of ARDS in patients with severe sepsis.
Circulating levels of citrulline, the primary substrate for NOS, are low in patients with severe sepsis.
Low levels of circulating citrulline are associated with development of ARDS in patients with severe sepsis.
Prospective studies are needed to determine whether citrulline supplementation could prevent the development of ARDS in patients with severe sepsis.
- APACHE II:
Acute Physiology and Chronic Health Evaluation
acute respiratory distress syndrome
nitric oxide synthase
total nitrate and nitrite
systemic inflammatory response syndrome.
The research was supported by NIH HL103836, NIH HL088263, an American Heart Association Established Investigator Award and an unrestricted research gift from Asklepion Pharmaceuticals and Ucyclyd Pharma Inc.
